Description

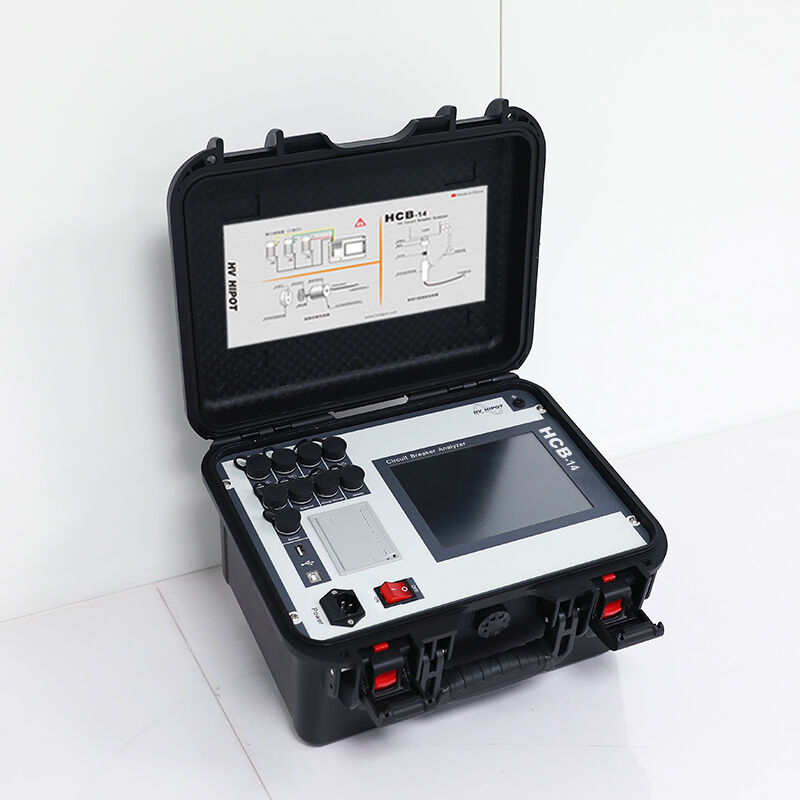

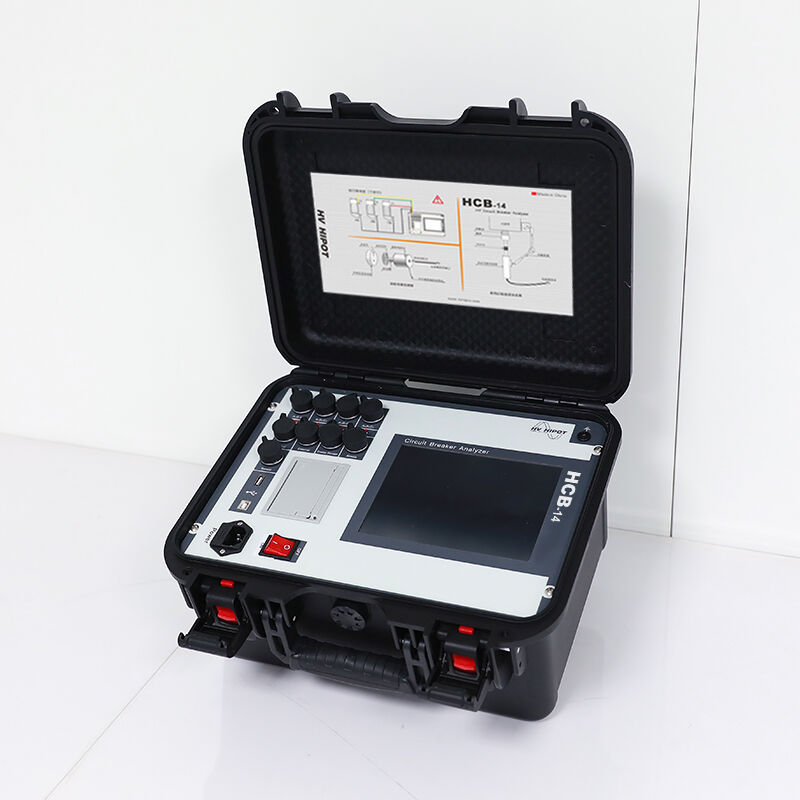

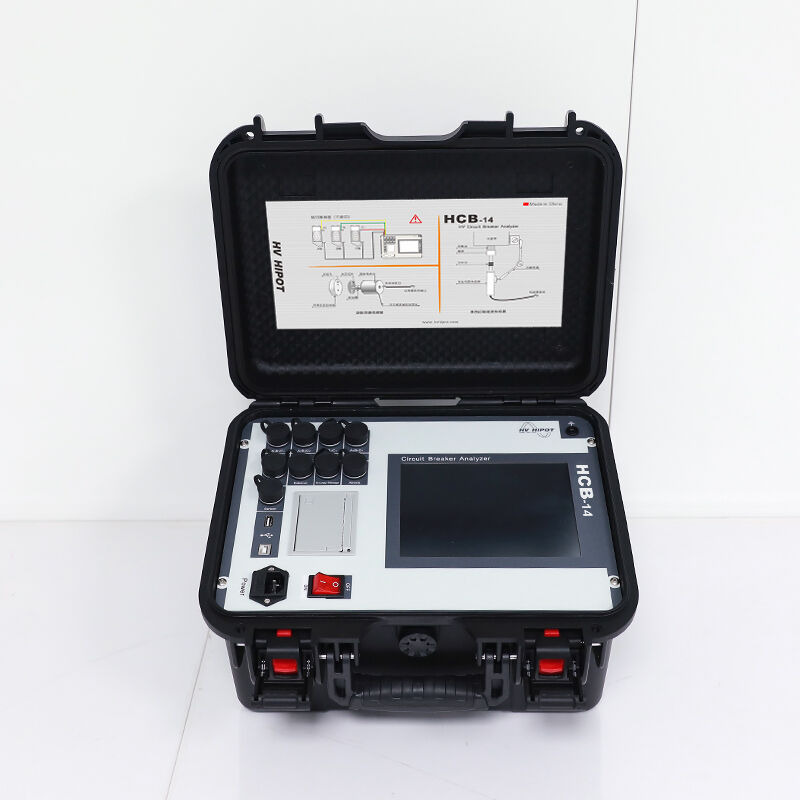

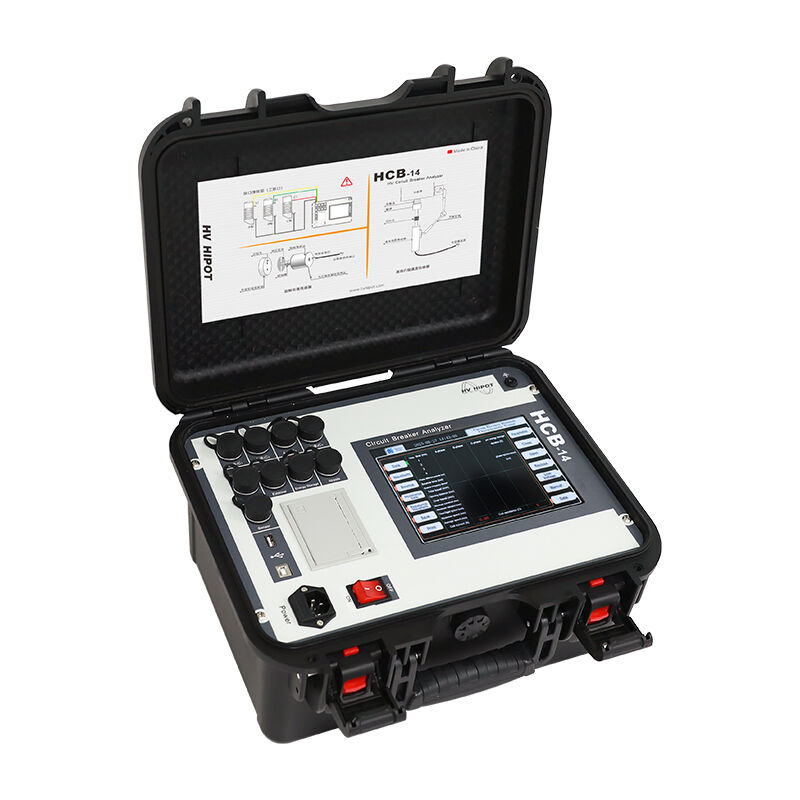

The HCB-14 Circuit Breaker Analyzer is a high-precision, portable test system designed for comprehensive mechanical and electrical characteristic testing of high-voltage circuit breakers. Adopting a 32-bit high-speed acquisition chip and advanced signal processing technology, it accurately captures dynamic parameters during breaker operation.
Engineered for 0.4kV–500kV power systems, it supports vacuum, SF6, oil, and GIS circuit breakers. It measures timing, stroke, speed, acceleration, contact resistance, and coil current with high accuracy. The 7-inch touchscreen displays real-time curves and data, while the rugged IP67 enclosure ensures reliability in harsh field environments. Ideal for power utilities, switch manufacturers, and test institutions for factory testing, commissioning, and preventive maintenance.
Specifications
| Parameter Category | Specification |
| Timing Measurement | |
| Range | 0–9999.999s |
| Resolution/Accuracy | 1μs / ±0.1ms |
| Test Items | Open/close time, pole discrepancy, bounce time |
| Speed & Stroke | |
| Speed Range/Resolution | 0–20m/s / 0.01m/s |
| Stroke Range/Resolution | 0–1000mm / 0.1mm |
| Curves | Speed-stroke, time-stroke, acceleration |
| Contact Resistance | |
| Range/Resolution | 0–5000Ω / 1μΩ |
| Test Type | Dynamic (DRM), static, loop resistance |
| Coil Current | |
| Range/Resolution | 0–20A DC / 1mA |
| Waveform | Real-time current curve, inrush/holding current |
| Hardware & Operation | |
| Display | 7-inch industrial touchscreen |
| Interface | English/Chinese bilingual |
| Storage | 16GB SSD, saves 10,000+ records |
| Export | USB 2.0, Excel/PDF format |
| Power & Environmental | |
| Power Supply | AC 100–240V, 50/60Hz; built-in 14.8V battery |
| Battery Life | 8 hours continuous operation |
| Operating Temp/Humidity | -20℃~+60℃, ≤95% RH (non-condensing) |
| Protection Grade | IP67 |
| Dimensions/Weight | 420×350×190mm / ~15kg |
| Compliance | IEC 62271-100, GB 1984-2014, DL/T 846.3, CE |
Applications
Core Test Objects
· Vacuum Circuit Breakers (VCB): Timing, stroke, speed, and contact resistance testing
· SF6 Circuit Breakers: Dynamic characteristics, 同期，and bounce time analysis
· Oil Circuit Breakers: Mechanical motion and electrical parameter verification
· GIS Switchgear: Integrated switch testing in gas-insulated substations
· Disconnectors & Earthing Switches: Contact resistance and operating time measurement
Industry-Specific Usage
· Power Utilities: Substation breaker commissioning, routine maintenance, and fault analysis
· Switch Manufacturers: Factory acceptance testing, quality control, and type testing
· Power Generation Plants: Generator outlet breaker and auxiliary switch testing
· Rail Transit: Traction substation breaker and switchgear maintenance
· Third-Party Labs: Compliance testing, certification, and performance verification
Advantages
Unmatched Measurement Precision
1μs timing resolution and 0.01m/s speed accuracy ensure accurate capture of breaker dynamic characteristics, even for high-speed vacuum breakers.
All-In-One Test Solution
Combines timing, motion, resistance, and coil current testing in one unit, eliminating the need for multiple devices and improving efficiency by 60%.
Field-Proven Portable Design
Lightweight (~15kg) with IP67 protection and built-in battery enables reliable operation in harsh substation environments, suitable for both indoor and outdoor use.
Intelligent Automation & Analysis
One-click testing, real-time waveform display, and automatic report generation reduce human error and save 50% of test time. Rich analysis tools support deep performance evaluation.
Global Standard Compliance
Fully compliant with IEC/GB/DL/T standards, ensuring test data recognition for global grid access and certification.
FAQ
Q: What types of circuit breakers can it test?
A: It tests vacuum, SF6, oil, and GIS circuit breakers of all voltage levels (0.4kV–500kV) and international brands.
Q: What is the timing accuracy?
A: 1μs resolution with ±0.1ms accuracy, meeting IEC 62271-100 standards for high-precision timing.
Q: Does it support dynamic contact resistance (DRM) testing?
A: Yes. It measures dynamic contact resistance during breaker operation to assess contact condition and wear.
Q: Is it suitable for field use without external power?
A: Yes. Built-in rechargeable battery provides 8 hours of continuous operation for field testing without external power.
Q: What is included in the standard package?

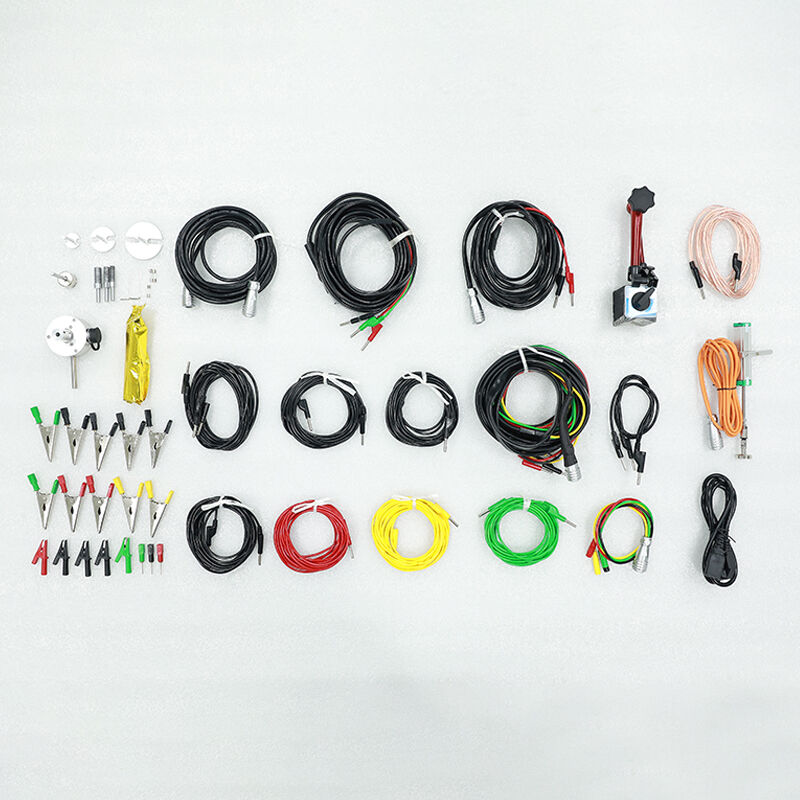

A: Main unit, travel sensor, contact resistance test leads, coil current clamp, power adapter, user manual, and rugged carrying case.
