Description
The GDCR1600 is a portable, battery-powered wireless high-voltage phase detector designed for safe, fast phase verification, synchronization, and live-line checking on 200V–220kV AC overhead lines and substation equipment. It supports contact mode (≤35kV bare / ≤220kV insulated) and non-contact mode (>35kV bare), eliminating the risk of direct HV contact.

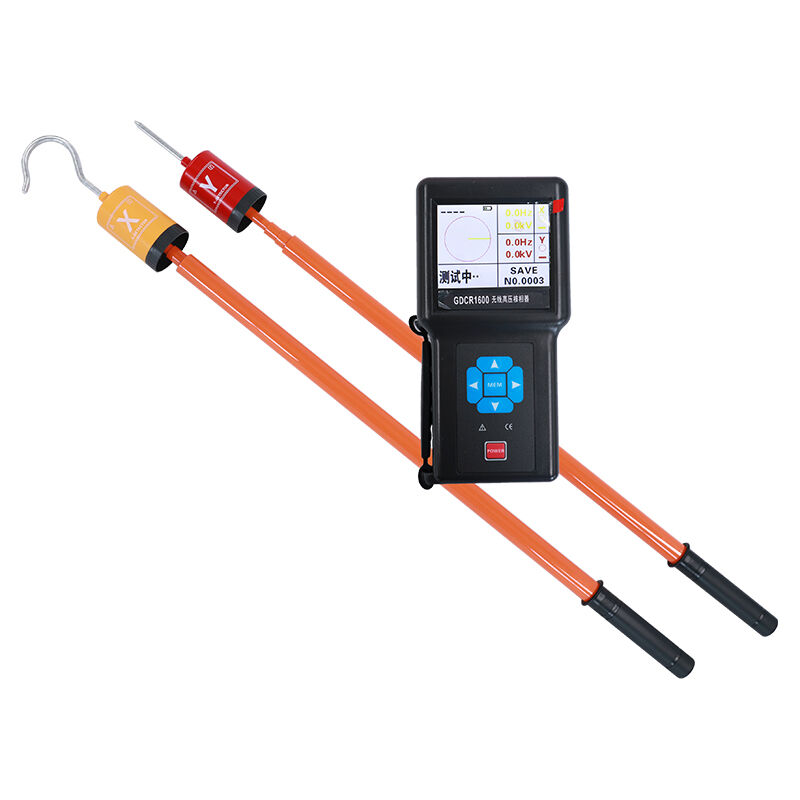

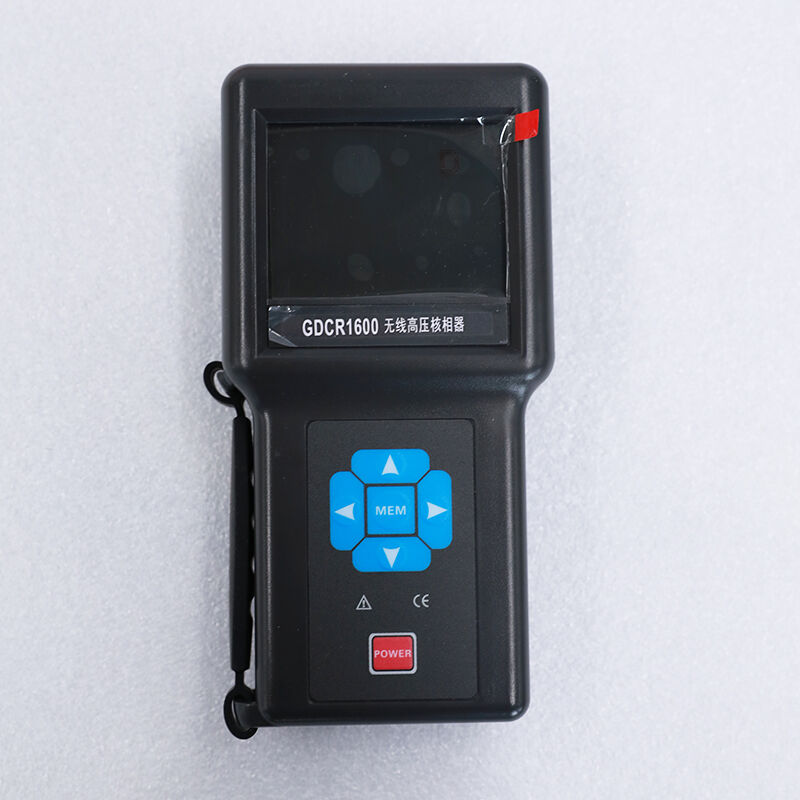

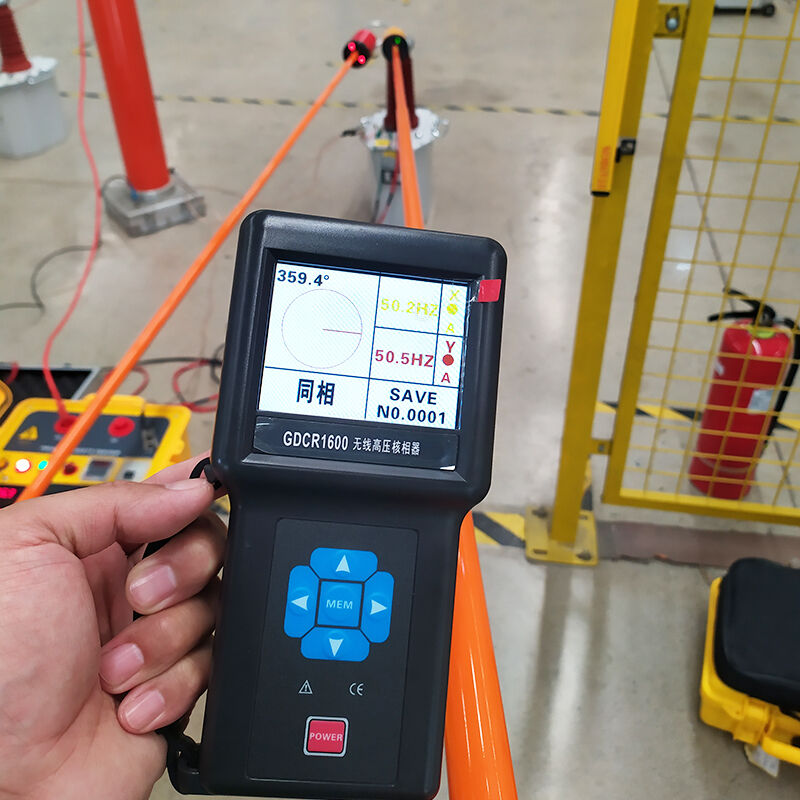

The system consists of two RF transmitters (X/Y) and one color LCD receiver, with 30m line-of-sight wireless transmission (433MHz/315MHz). It provides realtime phase angle (0–360°), frequency (45–65Hz), vector diagram, and clear voice prompts (“X signal normal, Y signal normal, in-phase, out-of-phase”). Built for field use, it includes telescopic insulated rods (4.85m max), CAT IV safety rating, and 999-group data storage for traceability. Ideal for grid synchronization, loop closing, transformer commissioning, and routine substation maintenance.
Specifications
| Parameter | Specification |
| Voltage Range | 200V–220kV AC |
| Phase Angle Range | 0.0°–360.0°；accuracy ≤±12°；resolution 0.1° |
| Frequency Range | 45.0–65.0Hz；accuracy ≤±2Hz；resolution 0.1Hz |
| Wireless Transmission | 433MHz/315MHz；30m lineofsight |
| InPhase Criterion | −25° ~ +25° |
| OutofPhase Criterion | 95°–145° & 215°–265° |
| Display | 3.5″ truecolor LCD (phase/frequency/vector/result) |
| Voice Prompt | Multilanguage (default: English) |
| Data Storage | 999 groups；time/date stamp |
| Communication | USB 2.0 (PC software) |
| Insulated Rod | 1.05m (retracted) / 4.85m (extended)；Φ38mm；AC 220kV withstand |
| Power Supply – Receiver | DC 9V (6×AA)；150mA max；≥20hrs |
| Power Supply – Transmitters | 9V (6F22)；30mA max；≥30hrs |
| Safety Rating | IEC 610101 CAT IV 600V；Double insulation |
| Operating Temp | −10°C ~ +40°C；<80%RH |
| Dimensions (mm) – Receiver | 195×100×45 |
| Weight – Receiver | 950g (with battery) |
| Compliance | DL/T 971, IEC 610101, CE |
Applications
Core Test Objects
· Overhead lines: 200V–220kV phase verification & synchronization
· Substations: loop closing, busbar phasing, breaker synchronization
· Transformers: commissioning, vector group check, primary/secondary phasing
· Cables: insulated cable phase identification (≤220kV)
· Live line maintenance: HV presence check, phase sequence confirmation
Typical Usage Scenarios
· Grid synchronization: before connecting two independent networks
· Loop closing: safe reconfiguration of ring-main systems
· Commissioning: new line/cable/transformer phase validation
· Fault diagnosis: phase mismatch, reverse phasing, or missing phase
· Routine maintenance: periodic phase check in substations
Advantages
Dual-Mode (Contact/NonContact) for All Voltages
One unit covers 200V–220kV;safe non-contact for high bare lines → maximize safety & versatility
30m Wireless + Clear Voice + Vector Display
No cables, intuitive graphics, and voice prompts → faster, error-free on-site decisions
CAT IV + 4.85m Insulated Rod
Highest safety rating + long reach → safe operation even on 220kV live lines
999-Group Storage + PC Reports
Full data logging + automated reports → traceable records & simplified documentation
All-Day Battery + Rugged Build
20+ hrs runtime + field-proven durability → reliable performance in harsh environments
FAQ
Q: What’s the maximum voltage for contact mode?
A: 35kV bare wire or 220kV insulated cable;above 35kV bare, use non-contact mode.
Q: How far can the wireless signal reach?
A: 30 meters line-of-sight;avoid heavy obstacles or strong RF interference.
Q: Does it work in noisy substation environments?
A: Yes. 50/60Hz EMI filtering ensures stable readings near transformers and switchgear.
Q: Can I save and export test data?
A: Yes. 999 groups stored;USB connects to PC for review, analysis, and report generation.
Q: What’s included in the standard package?

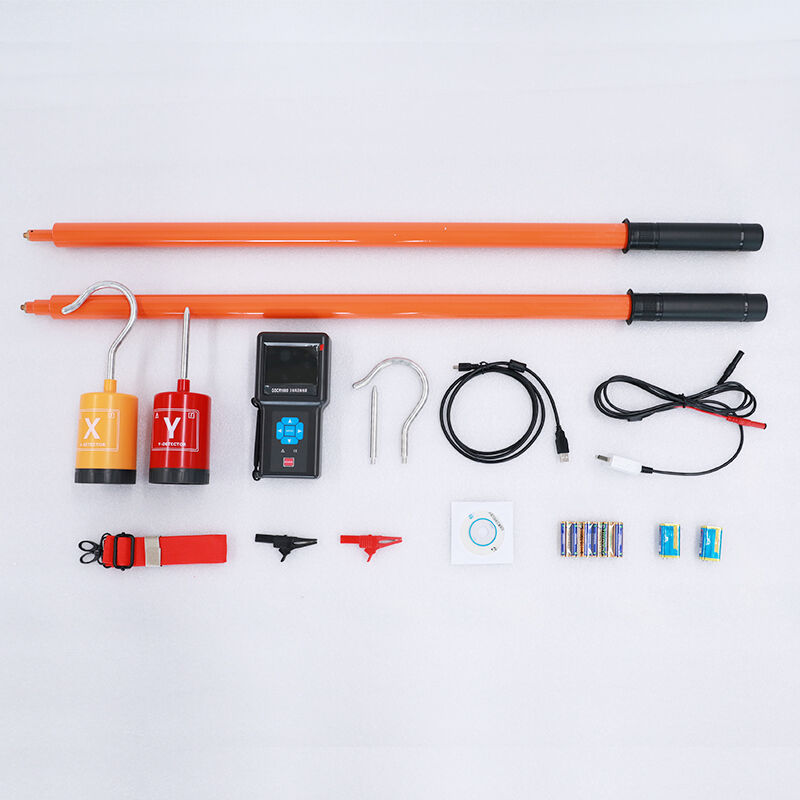

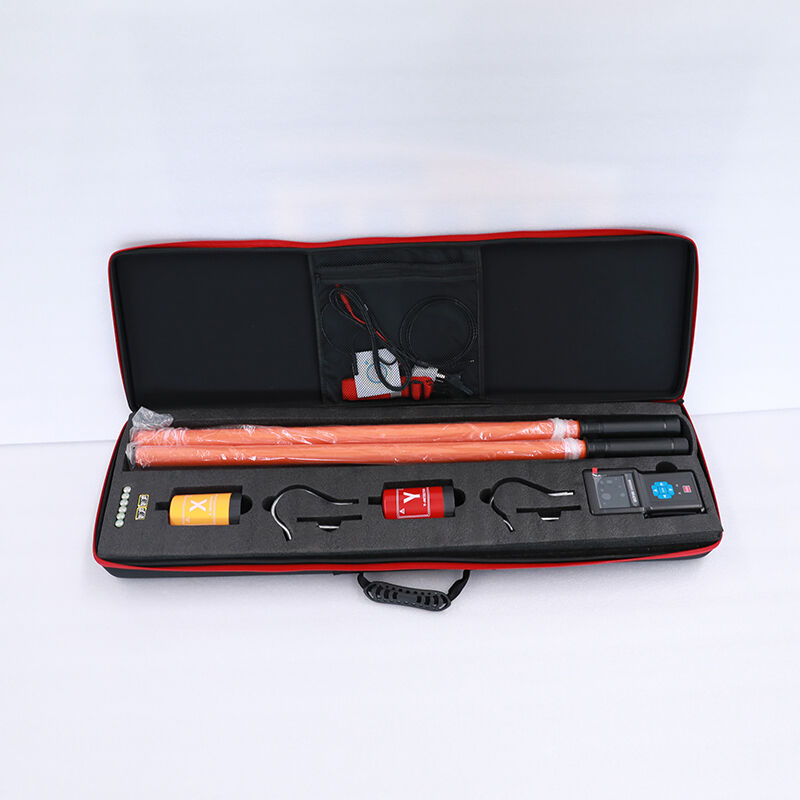

A: Receiver, 2× transmitters, 2× telescopic insulated rods, batteries, HV probes, ground cable, carry case, user manual, PC software.
