Description

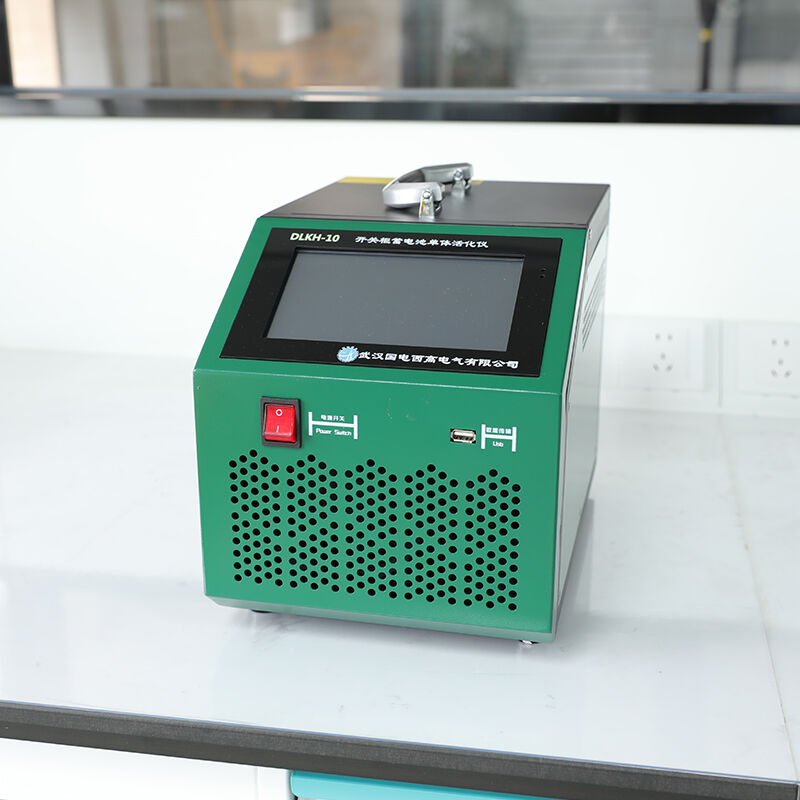

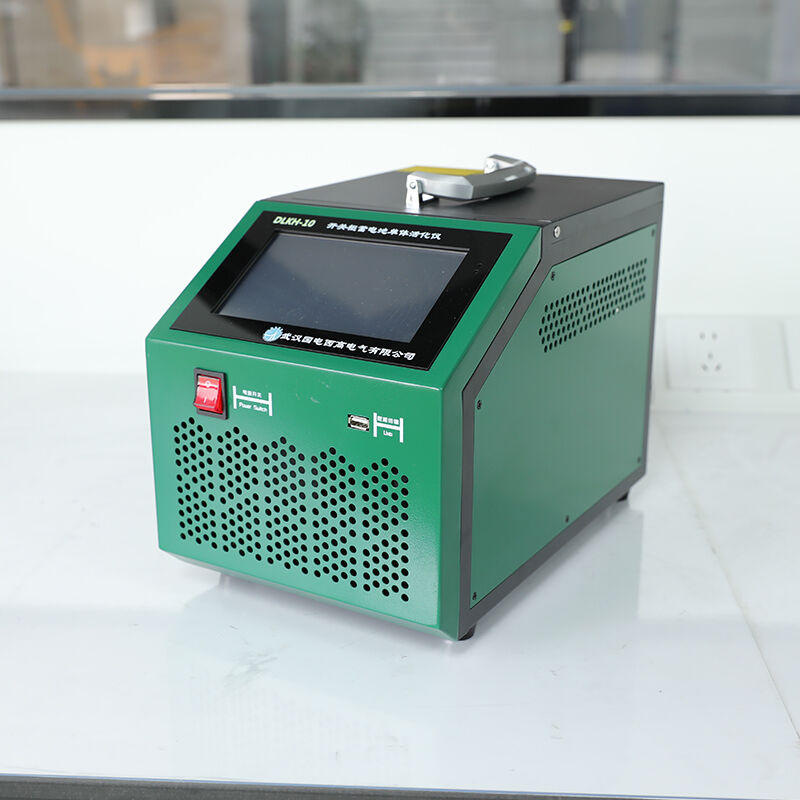

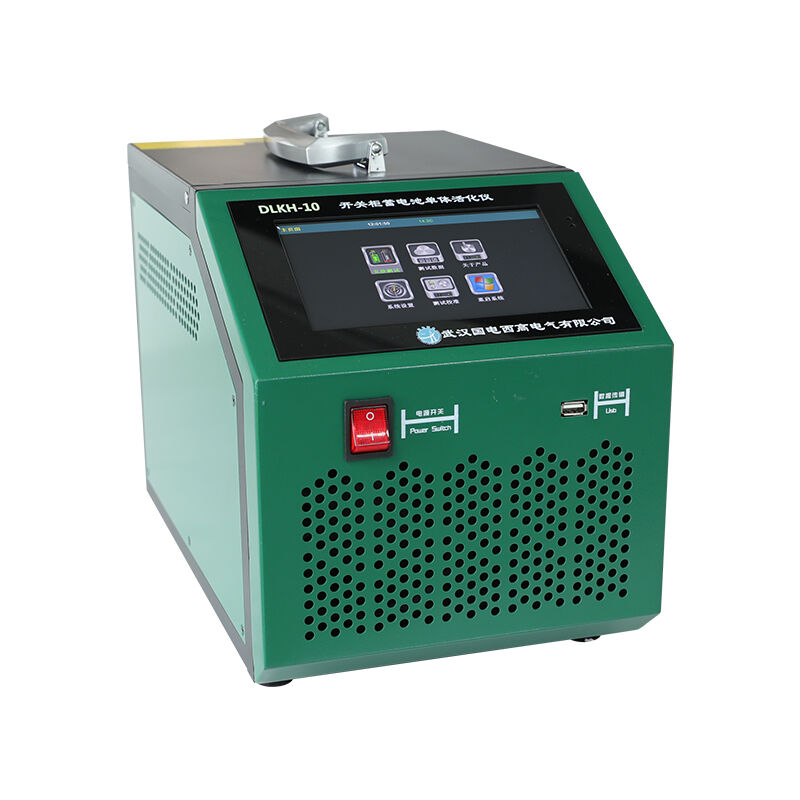

The GDKH-10 is a portable, high-precision single-cell regeneration & maintenance instrument designed for 2V/6V/12V lead-acid batteries (VRLA, flooded, gel). It integrates constant-current discharge, threestage intelligent charging, multi-cycle activation, and fast internal resistance testing into one unit.
By applying precise charge/discharge cycles, it dissolves lead-sulfate crystals on plates, recovers lost capacity, reverses sulfation, and extends cell service life. With a 7” TFT touchscreen, ±0.5% voltage accuracy, and ±1% current control, it supports standalone operation and PC data analysis/reporting. Compact and lightweight (~11 kg), it’s ideal for substation, UPS, telecom, and industrial battery maintenance.
Specifications
| Parameter | Specification |
| Cell Types | 2V / 6V / 12V leadacid (VRLA/flooded/gel) |
| Voltage Measurement | 2V: 0–3V；6V/12V: 0–16V；0.001V res；±0.5%FS acc |
| Charge/Discharge Current | 0–10A (0.1A step)；±0.1A control；±1% test acc |
| Capacity Range | 2V: 20–1000Ah；6V/12V: 20–300Ah |
| Activation Cycles | 1–99 userconfigurable cycles |
| Display | 7” TFT LCD, 1024×600, touchscreen |
| Internal Resistance Test | 1–2 min per cell (offline) |
| Protection | OV/UV/OC/OT/reverse polarity |
| Data Storage | Internal + USB；RS485 communication |
| Power Supply | AC220V ±15%, 50/60 Hz, 800W max |
| Dimensions | 420×350×180 mm |
| Weight | ~11 kg |
| Operating Temp | 0°C ~ +40°C |
| Compliance | DL/T 724, IEC 60896, CE |
Applications
Core Objects
· 2V/6V/12V lead-acid cells: VRLA, flooded, gel
· Substation battery banks: 110V/220V DC systems
· UPS batteries: 24V–600V backup power
· Telecom 48V plants: Remote tower maintenance
· Industrial & energy storage batteries: Wind/solar farms
Typical Usage Scenarios
· Cell regeneration: Recover sulfated/weak cells (save replacement cost)
· Capacity verification: New cell acceptance & aging assessment
· Routine maintenance: Keep cells balanced & extend life
· Fault diagnosis: Locate weak cells before group failure
Advantages
Bring Weak Cells Back to Life
Multi-cycle activation dissolves sulfate crystals → recover 80%+ lost capacity
One Unit for All Common Cells
Supports 2V/6V/12V → no multiple testers needed
Lab-Grade Accuracy On-Site
±0.5% voltage & ±1% current → reliable capacity & health data
Fast & Safe Maintenance
1–2 min internal resistance test + full protection → reduce risk & save time
Lower Total Cost of Ownership
Extend cell life + fewer replacements → significant long-term savings
FAQ
Q: Can it repair seriously sulfated cells?
A: It recovers most moderately sulfated cells;severe physical damage (short circuit, broken plates) cannot be repaired.
Q: Does it work while the battery is online?
A: Activation/discharge must be offline;internal resistance test is also offline.
Q: How many cycles are recommended for typical weak cells?
A: 3–5 cycles usually recover most capacity;adjust based on cell condition.
Q: What’s in the standard package?

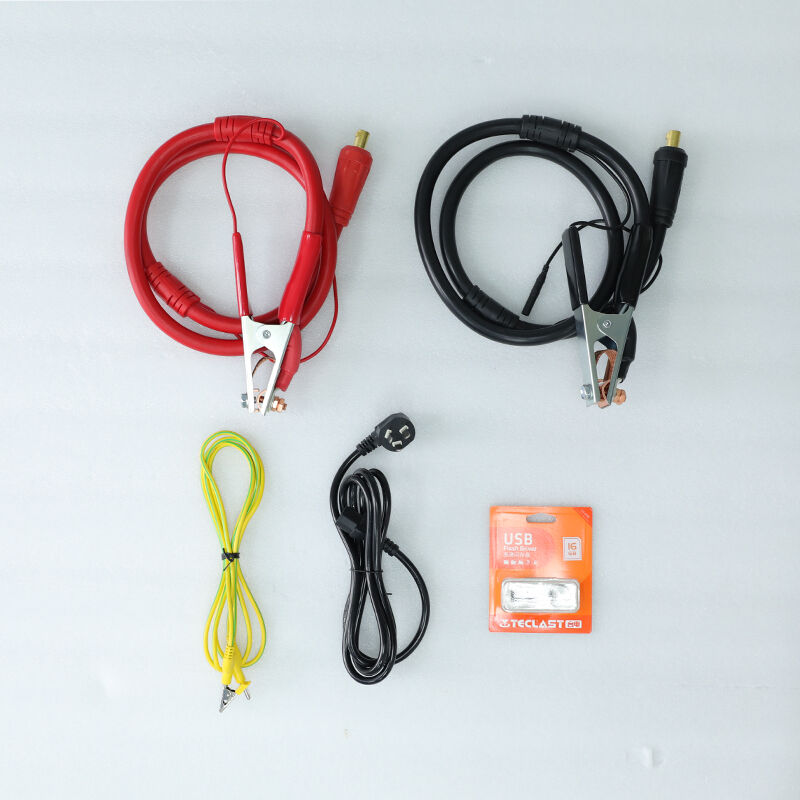

A: Main unit, power cable, charge/discharge cables, temp sensor, USB drive, RS485 cable, manual, carry case.
