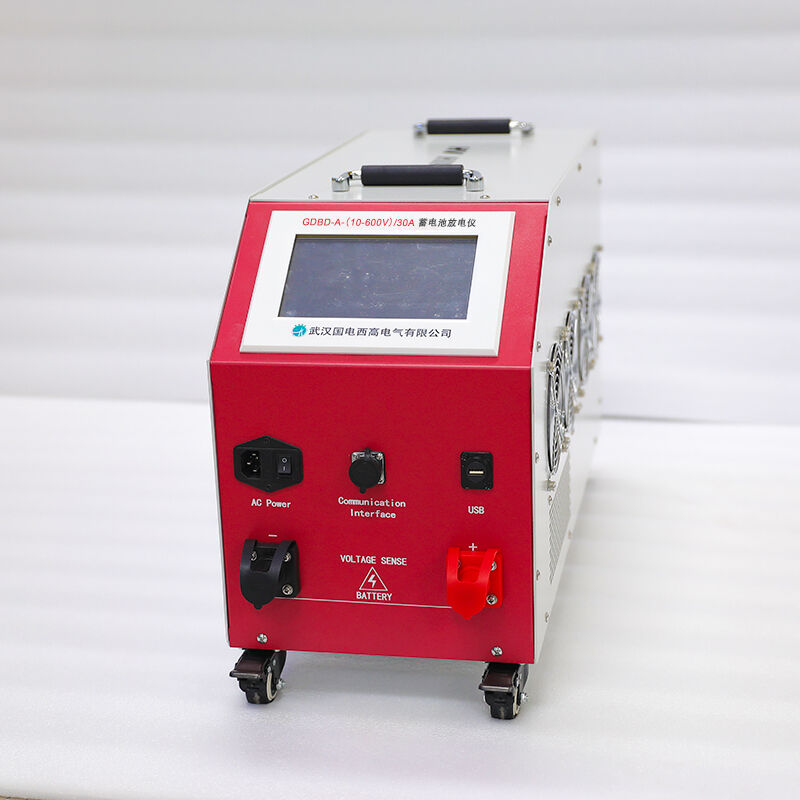

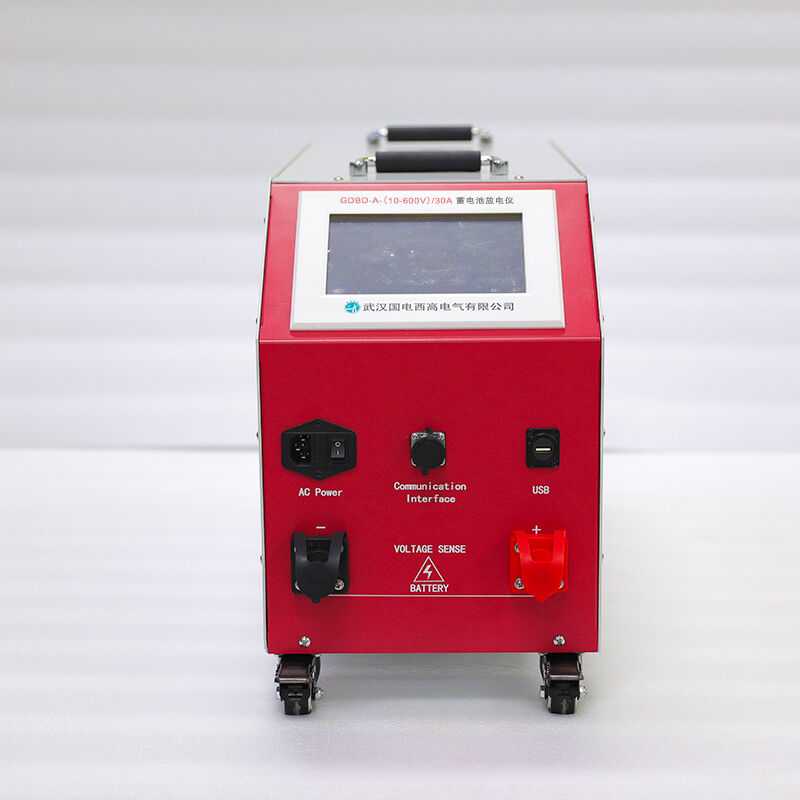

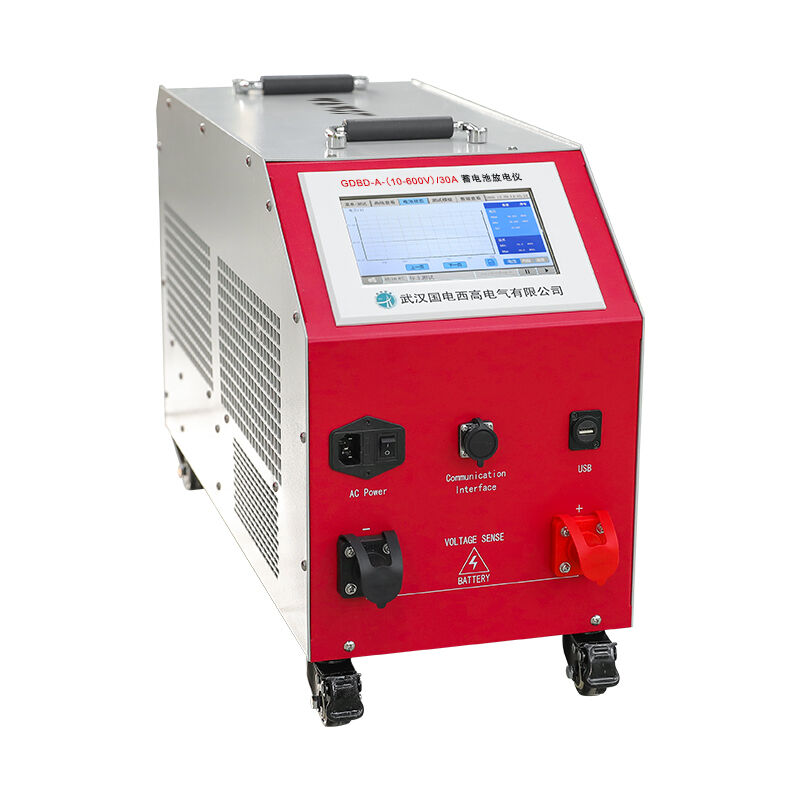

Description
The GDBD-A-(10-600V)-30A is a wide-voltage, high-precision intelligent battery discharger designed for 10–600V DC lead-acid battery banks (2V/6V/12V cells). It performs constant-current/constant-power discharge, capacity assessment, and cell imbalance detection via built-in electronic load and real-time data acquisition.
With a 7” TFT touchscreen, ±0.5% voltage accuracy, and ±1% current control precision, it supports standalone operation or PC remote control. The integrated 8GB FLASH stores 1000+ test records, while RS485 enables data transfer and report generation. Rugged, compact, and safe, it’s ideal for substation, UPS, telecom, and industrial battery maintenance.
Specifications
| Parameter Category | Specification |
| Discharge Ratings | |
| Voltage Range | 10–600V DC |
| Current Range | 0–30A (0.1A step) |
| Max Discharge Power | 18kW |
| Discharge Modes | Constant Current / Power / Resistance |
| Measurement Accuracy | |
| Group Voltage | ±0.5%FS ±0.1V |
| Discharge Current | ±1%FS |
| Cell Voltage | ±0.1%FS (1.000–16.000V) |
| Display & Control | |
| Screen | 7” TFT Touchscreen (1024×600) |
| Operation | Touchscreen + physical emergency stop |
| Data & Communication | |
| Internal Storage | 8GB FLASH |
| Communication | RS485 (Modbus RTU) |
| Data Export | USB Flash Drive |
| Protection | |
| Overvoltage / Undervoltage | User-configurable thresholds |
| Overcurrent / Short Circuit | Auto-stop + alarm |
| Overheat Protection | 75°C auto-shutdown |
| Reverse Polarity | No damage, alarm only |
| Mechanical & Environmental | |
| Dimensions | 480×380×220mm |
| Weight | ~28kg |
| Cooling | Forced Air |
| Operating Temp | -5°C ~ +40°C |
| Humidity | 20–90% RH (non-condensing) |
| Compliance | DL/T 724, IEC 60896, CE |
Applications
Core Test Objects
· Substation Battery Banks: 110V/220V DC systems (VRLA/flooded cells)
· UPS Batteries: 24V–600V backup power for data centers
· Telecom Towers: 48V DC battery plants
· Industrial Systems: 380V/600V battery banks for heavy machinery
· New Energy: Wind/solar farm energy storage batteries
Industry-Specific Usage
· Capacity Validation: New battery acceptance testing
· Maintenance Discharge: Prevent sulfation; restore weak cells
· Fault Diagnosis: Identify weak/imbalanced cells before failure
· Routine Inspection: Comply with DL/T 724, IEC 60896 standards
Advantages
Ultra-Wide Coverage, One Unit for All
10–600V + 30A covers all common battery systems—no need for multiple testers.
Lab-Grade Precision On-Site
±0.5% voltage & ±1% current accuracy ensures reliable capacity data for critical systems.
Real-Time Cell Monitoring Saves Time
Instantly spot weak cells during discharge—reduces maintenance time by 50%.
All-Weather Safety & Reliability
Multiple protections + rugged design prevent battery damage and safety incidents.
Data-Driven Maintenance
PC software generates professional reports—simplifies compliance and asset management.
FAQ
Q: Can it test both 2V and 12V cells in the same bank?
A: Yes. It auto-detects cell voltage (1–16V) and monitors each cell individually.
Q: Is it safe for online testing (battery connected to load)?
A: Yes. It supports online discharge while the battery powers critical loads.
Q: How long can it discharge at 30A continuously?
A: Up to 10 hours (limited by battery capacity and temperature).
Q: Does it come with PC software for reporting?
A: Yes. Free software for data analysis, curve plotting, and professional report generation.
Q: What’s included in the standard package?

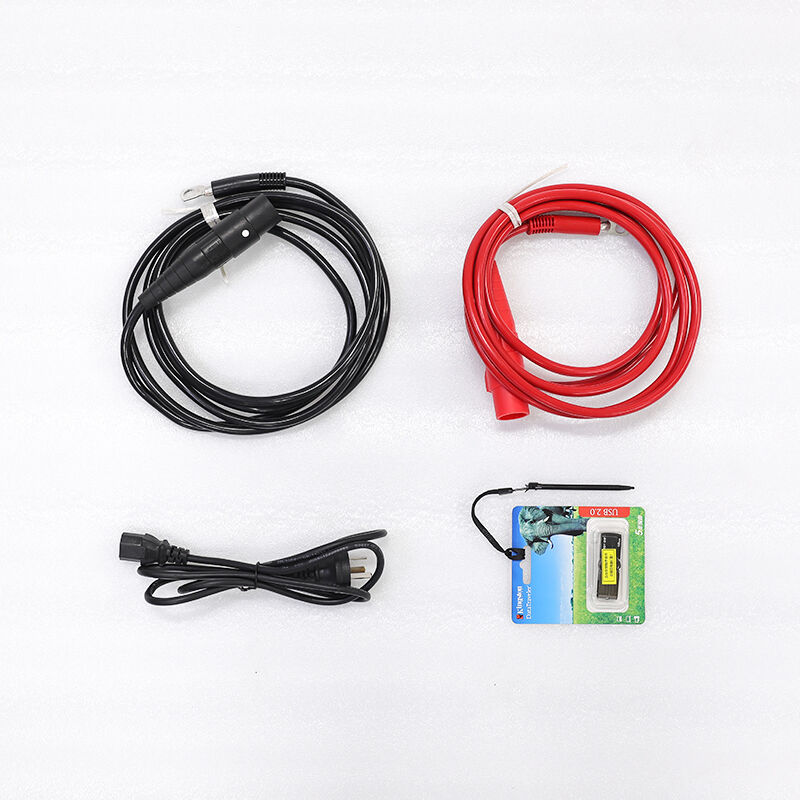

A: Main unit, power cable, discharge cables (30A), cell voltage sensors, RS485 cable, USB drive, user manual, rugged carry case.
