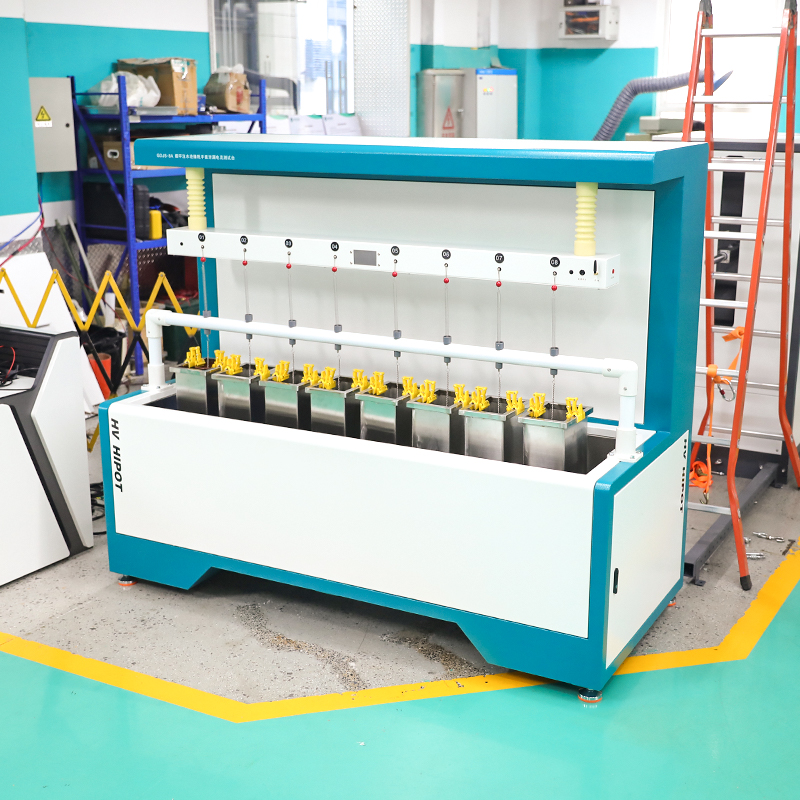

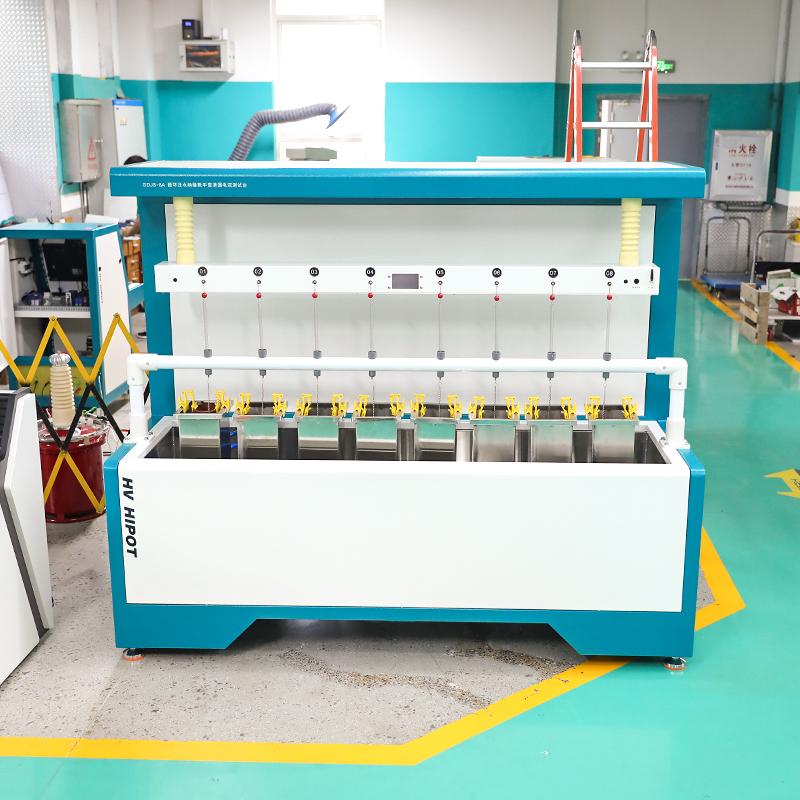

GDJS-8A 8-Station Automatic Insulating Boots & Gloves Test Bench
GDJS-8A Digital Intelligent Circulating Water Injection Insulating Boots & Gloves Leakage Current Test Bench with 8 Independent Stations, 0-50kV Power Frequency Withstand Voltage, Auto Water Filling & Auto-Trip, for Electrical Safety PPE Preventive Test
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description
GDJS-8A is a professional automatic insulating safety PPE test bench designed for power frequency withstand voltage and leakage current test of insulating gloves, insulating boots and dielectric shoes in power utilities, substations, industrial enterprises and third-party testing institutions. It strictly complies with DL/T 1476-2023, GB/T 17622-2008 and GB 21148-2020 standards, adopting innovative circulating water injection technology and independent per-channel measurement & trip system that ensures accurate test results and reliable safety protection.
The instrument features 8 independent test stations that can test 8 pieces of gloves or boots simultaneously, significantly improving test efficiency. Its 0~50kV continuously adjustable high-voltage output and 0~30mA high-precision leakage current measurement cover all mainstream insulating gloves (Class 00~Class 4) and insulating boots (6kV~35kV). The fully automatic test process automatically completes water filling, voltage rise, constant voltage timing, voltage drop and result judgment, eliminating manual operation errors.
Specifications
| Parameter | Specification |
|---|---|
| Compliance Standards | DL/T 1476-2023, GB/T 17622-2008, GB 21148-2020, DL/T 976-2017, DL/T 848.2-2018 |
| Test Stations | 8 independent stations |
| Rated Output Voltage | 0 ~ 50kV AC, continuously adjustable |
| Rated Capacity | 5kVA |
| Input Power | AC 220V±10%, 50Hz±2Hz |
| Input Current | 0 ~ 23A |
| Leakage Current Range | 0 ~ 30mA AC per channel |
| Leakage Current Resolution | 0.01mA |
| Leakage Current Accuracy | ±1% reading ± 3 digits |
| Voltage Measurement Accuracy | ±1.5% FS |
| Timing Range | 0 ~ 999s (adjustable) |
| Timing Accuracy | ±0.1s |
| Trip Mode | Independent per-channel auto-trip when leakage current exceeds limit or breakdown occurs |
| Water System | Automatic circulating water injection, electric electrode lifting |
| Display | 7-inch 800×480 color capacitive touch screen |
| Data Storage | 1000 groups (with time stamp and test parameters) |
| Protection Functions | Over-voltage, over-current, breakdown trip, zero-position start, emergency stop |
| Alarm Mode | Sound and light alarm |
| Water Tank Material | 304 stainless steel |
| Operating Temperature | -10℃ ~ +50℃ |
| Humidity | ≤85% RH (non-condensing) |
| Overall Dimensions (L×W×H) | 1200×600×1100mm (trolley type) |
| Total Weight | ~110kg (including test transformer and control unit) |
| Enclosure | Cold-rolled steel spray + stainless steel tank, with wheels and handle |
Applications
Core Test Objects
- Insulating gloves: Class 00, Class 0, Class 1, Class 2, Class 3, Class 4 insulating gloves for live working
- Insulating boots & shoes: 6kV, 10kV, 15kV, 20kV, 35kV insulating boots and dielectric safety shoes
- Other insulating PPE: Insulating sleeves, insulating blankets (with optional fixtures)
Typical Usage Scenarios
- Power utilities: Substation and power plant safety PPE routine preventive test (every 6 months)
- Industrial enterprises: Internal electrical safety tool regular inspection and maintenance
- Third-party testing institutions: Safety PPE certification testing and calibration services
- Safety tool manufacturers: Factory quality control and type test of insulating PPE products
Advantages
Compliance with Latest Industry Standards
Fully meets DL/T 1476-2023, GB/T 17622-2008, GB 21148-2020 → test results are legally valid and compliant with safety regulations
Industry-Leading 8-Station Independent Design
Simultaneous testing of 8 samples, independent trip per channel → improves test efficiency by 300% and avoids repeated wiring
Automatic Circulating Water Injection System
Automatic water filling, draining and level control → eliminates manual water injection work and reduces labor intensity by 80%
High-Precision Leakage Current Measurement
0.01mA resolution, ±1% accuracy → accurately captures tiny leakage changes and ensures reliable test results
Fully Automatic Test Process
One-click to complete the entire test, automatic pass/fail judgment → eliminates manual operation errors and reduces operator skill requirements
Comprehensive Safety Protection
Multi-level protection + isolated measurement + emergency stop → ensures absolute safety of operators during high-voltage tests
Durable & Portable Design
Stainless steel tank + movable trolley → suitable for both laboratory and on-site mobile tests
FAQ
Q: What is the test cycle for insulating gloves and boots according to standards?
A: According to DL/T 1476-2023 Preventive Test Code for Electric Safety Tools, insulating gloves and insulating boots must undergo power frequency withstand voltage test every 6 months. The test voltage and leakage current limit vary for different voltage classes. GDJS-8A pre-stores all standard limit values and automatically judges pass/fail according to the selected sample type.
Q: How does the independent per-channel trip function work?

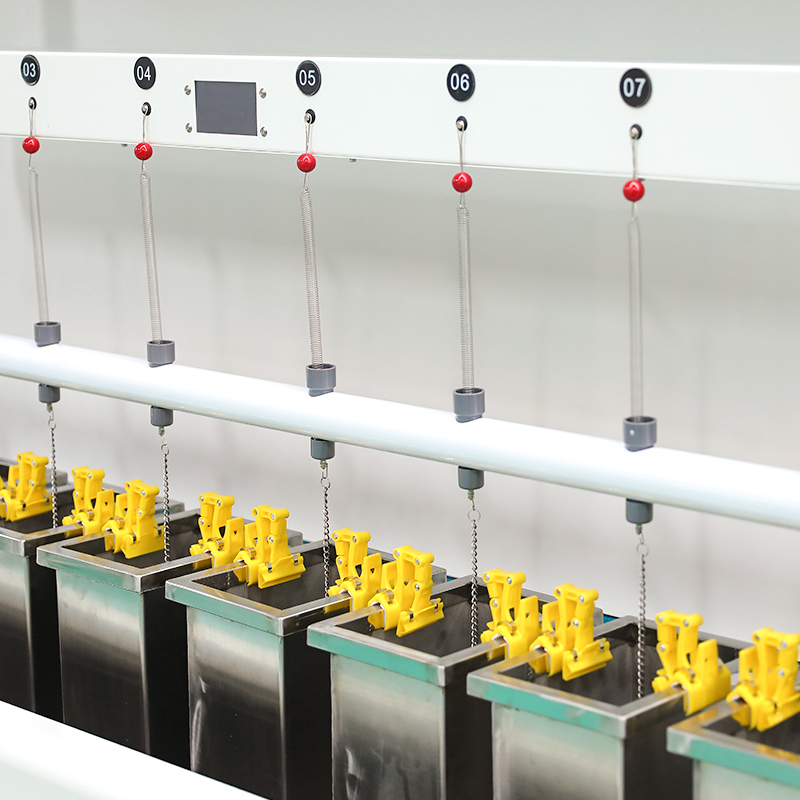

A: Each of the 8 test stations has an independent current detection and trip mechanism. When the leakage current of any station exceeds the set threshold or breakdown occurs, the high voltage of that station is automatically cut off immediately, while the other 7 stations continue to test normally. This avoids the situation where one faulty sample causes the entire test to stop, significantly improving test efficiency.
Q: What is the advantage of circulating water injection compared to manual water injection?
A: Traditional manual water injection requires manual filling of water into each glove/boot and the water tank, which is time-consuming and labor-intensive, and it is difficult to ensure consistent water level inside and outside the sample. GDJS-8A's circulating water system automatically fills and drains water, maintains consistent water level inside and outside the sample, and meets the standard requirement of 90mm dry exposed edge. This reduces labor intensity by 80% and ensures test consistency.
Q: Can GDJS-8A test both insulating gloves and insulating boots?
A: Yes. GDJS-8A is designed for both insulating gloves and insulating boots. It is equipped with special electrodes for both types of samples. The electric lifting mechanism can adjust the electrode height to adapt to different sizes of gloves and boots. Users only need to select the corresponding sample type in the menu, and the instrument will automatically call the corresponding test parameters and standard limits.
