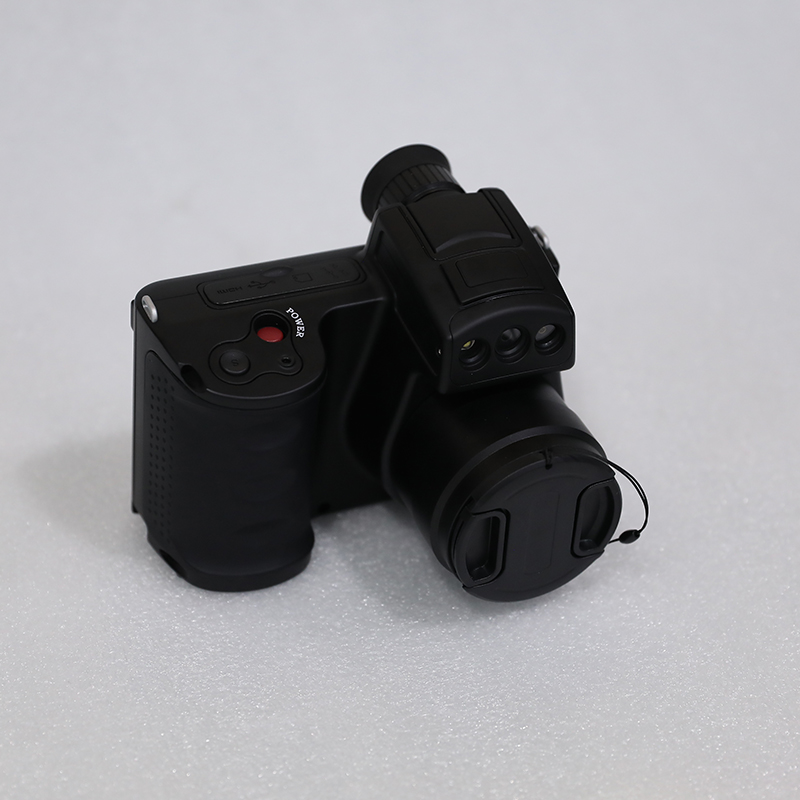

GLF314 SF6 Gas Infrared Imaging Leak Detector
GLF314 Digital Intelligent Dual-Band Infrared Gas Imaging Leak Detector with 384×288 Uncooled FPA Detector, 0.1℃ NETD, Gas Enhanced Display Mode, Dual Display System, GPS, for SF6 Electrical Equipment and Natural Gas Pipeline Leak Detection.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description
The GLF314 is a professional-grade, high-sensitivity dual-band infrared gas imaging leak detectorexclusively designed for non-contact, real-time visualization of gas leaks in power systems and petrochemical industries. It fully complies with DL/T 846.6-2018, IEC 60480-2004 and GB/T 22065-2008 standards, adopting an innovative dual-band uncooled infrared focal plane array (FPA) detector that can simultaneously detect SF6 sulfur hexafluoride and CH4 methane without changing filters.

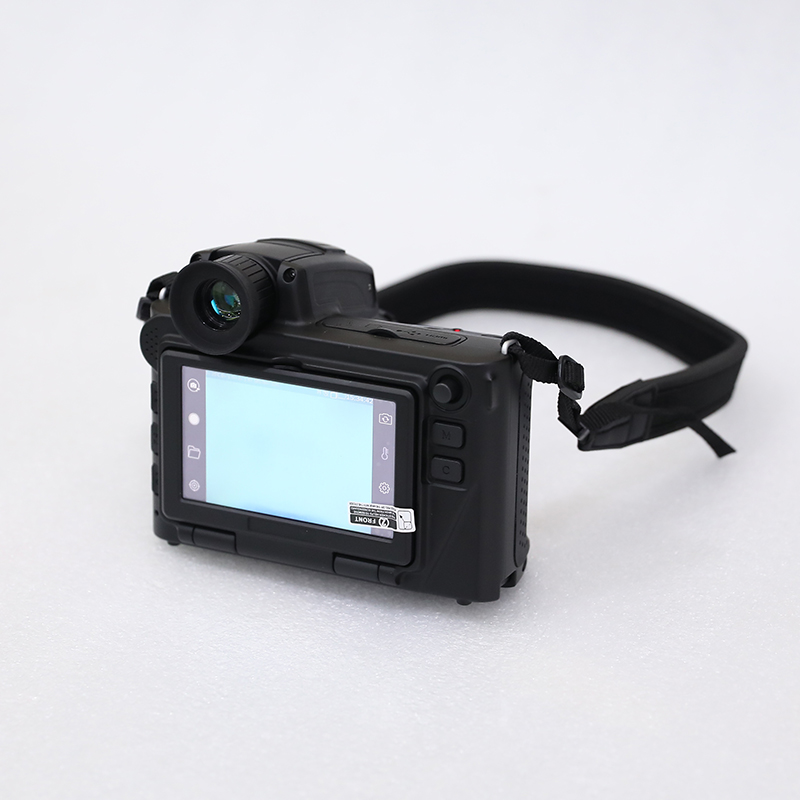

The instrument features an industry-leading 384×288 high resolution and ≤0.1℃ ultra-high thermal sensitivity, enabling it to detect extremely small gas leaks that are invisible to the naked eye. Its proprietary Gas Visual Enhancement Technology (GVETM) significantly improves gas contrast against background, making even the tiniest leaks clearly visible. The innovative dual-display system with a 5-inch rotatable LCD touch screen and high-resolution OLED viewfinder ensures clear visibility even in strong direct sunlight.
Specifications
| Parameter | Specification |
|---|---|
| System Parameters | |
| Compliance Standard | DL/T 846.6-2018, IEC 60480-2004, GB/T 22065-2008, EPA OOOOa |
| Detector Type | Dual-band uncooled microbolometer FPA |
| Infrared Resolution | 384×288 pixels |
| Pixel Pitch | 25μm |
| Thermal Sensitivity (NETD) | ≤0.1℃ @30℃ |
| Filter Bandpass | 7μm-8.5μm (CH4), 9.5μm-12μm (SF6) |
| Detectable Gases | SF6, CH4, and other gases with absorption peaks in these bands |
| Optical Parameters | |
| Infrared Lens | Standard lens: 21.7°×16.4° field of view |
| Focus | Auto & manual focus |
| Digital Zoom | 1~10 times continuous |
| Image Frame Rate | 50Hz±1Hz |
| Display Parameters | |
| Main Display | 5-inch 1024×600 rotatable LCD touch screen |
| Viewfinder | OLED high-resolution display, 1024×600 pixels |
| Visible Light Camera | 5 megapixels, field of view consistent with infrared lens |
| Color Palettes | 10 standard + 1 user-defined |
| Gas Detection Parameters | |
| Gas Enhanced Mode | Yes (GVETM technology) |
| Minimum Detectable Leak Rate | <0.001mL/s (SF6) |
| Maximum Detection Distance | 50m (SF6), 30m (CH4) |
| Temperature Measurement Parameters | |
| Temperature Range | -20℃~150℃, 100℃~650℃ |
| Measurement Accuracy | ±3℃ or ±3% of reading, whichever is greater |
| Temperature Analysis | 10 points, 10 circles, 10 rectangles, 10 lines |
| Automatic Tracking | Global highest/lowest temperature |
| Temperature Alarm | Color and sound alarms |
| Data Management | |
| Storage | 32GB removable TF card |
| Image Format | JPEG with full radiometric data |
| Video Format | Radiometric *.raw, non-radiometric *.avi |
| Annotation | 60-second voice + text |
| GPS | Yes, location saved in images |
| Interfaces | USB 2.0, WiFi, HDMI |
| Physical Parameters | |
| Laser Pointer | 635nm Class 2 |
| LED Lights | Yes |
| Battery | Rechargeable lithium-ion battery |
| Battery Life | ≥4 hours continuous operation |
| External Power | DC12V |
| Dimensions | ≤185×148×155mm (including standard lens) |
| Weight | ~1.8kg (without battery) |
| Protection Grade | IP54 |
| Drop Resistance | 1.5 meters |
| Operating Temperature | -20℃ ~ +50℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Tripod Mount | Standard 1/4"-20 |
Applications
Core Test Objects
- Power system SF6 equipment: GIS, circuit breakers, transformers, gas insulated transmission lines (GIL), gas cylinders
- Petrochemical industry: Natural gas pipelines, storage tanks, valves, compressors, refinery equipment
- Environmental monitoring: Industrial gas emission detection, greenhouse gas monitoring
- Other industries: Refrigeration systems, semiconductor manufacturing, aerospace
Typical Usage Scenarios
- Power companies: Substation SF6 equipment regular inspection, fault troubleshooting, acceptance test
- Petrochemical enterprises: Natural gas pipeline leak detection, plant safety inspection, environmental compliance monitoring
- Gas companies: Natural gas distribution network inspection, storage facility maintenance
- Third-party testing institutions: Gas leak detection service, safety assessment
- Environmental protection agencies: Industrial emission monitoring, greenhouse gas inventory
Advantages
Compliance with International Standards
Fully meets DL/T 846.6-2018 Chinese power industry standard, IEC 60480 international standard and EPA OOOOa environmental standard → test results are recognized worldwide
Industry-Leading Dual-Band Technology
One instrument detects both SF6 and CH4 simultaneously without changing filters → reduces equipment investment by 50%, improves inspection efficiency by 100%
0.1℃ Ultra-High Thermal Sensitivity
Detects temperature differences as small as 0.1℃, making even the tiniest gas leaks clearly visible → identifies early leaks before they cause safety hazards or economic losses
Proprietary Gas Enhanced Display Mode
Increases gas contrast by 300% against background, significantly improves detection sensitivity → reduces false negative rate by 80%
Innovative Dual-Display System
Rotatable LCD touch screen + high-resolution OLED viewfinder, ensures clear visibility in all lighting conditions → ideal for outdoor on-site inspections
FAQ
Q: What is the advantage of dual-band technology compared to single-band gas detectors?
A:
- Dual detection capability: One instrument can detect both SF6 (used in power systems) and CH4 (used in petrochemical and natural gas industries) simultaneously
- No filter changing: Eliminates the need to stop work and change filters when switching between different gas types
- Cost effective: Reduces equipment investment by 50% compared to purchasing two separate single-band detectors
- Versatility: Suitable for multiple industries and applications with a single device
Q: How sensitive is the SF6 gas leak detection?
A: GLF314 can detect SF6 gas leaks as small as 0.001mL/s from up to 50 meters away. This is equivalent to detecting a leak of less than 1 gram per year, which is far below the industry standard limit of 1% annual leakage rate for SF6 equipment.
Q: Can it work in strong sunlight?
A: Yes. GLF314 features an innovative dual-display system with a high-brightness rotatable LCD screen and a high-resolution OLED viewfinder. The OLED viewfinder is specially designed for strong sunlight conditions, providing clear and sharp images even in direct sunlight.
Q: How long does the battery last?
A: The built-in rechargeable lithium-ion battery provides more than 4 hours of continuous operation under normal test conditions. It also supports external DC12V power supply for extended working time.
Q: Can it record videos?
A: Yes. GLF314 supports both radiometric infrared video recording (.raw format, contains full temperature data) and non-radiometric video recording (.avi format). Videos are stored on the 32GB removable TF card.
