Description

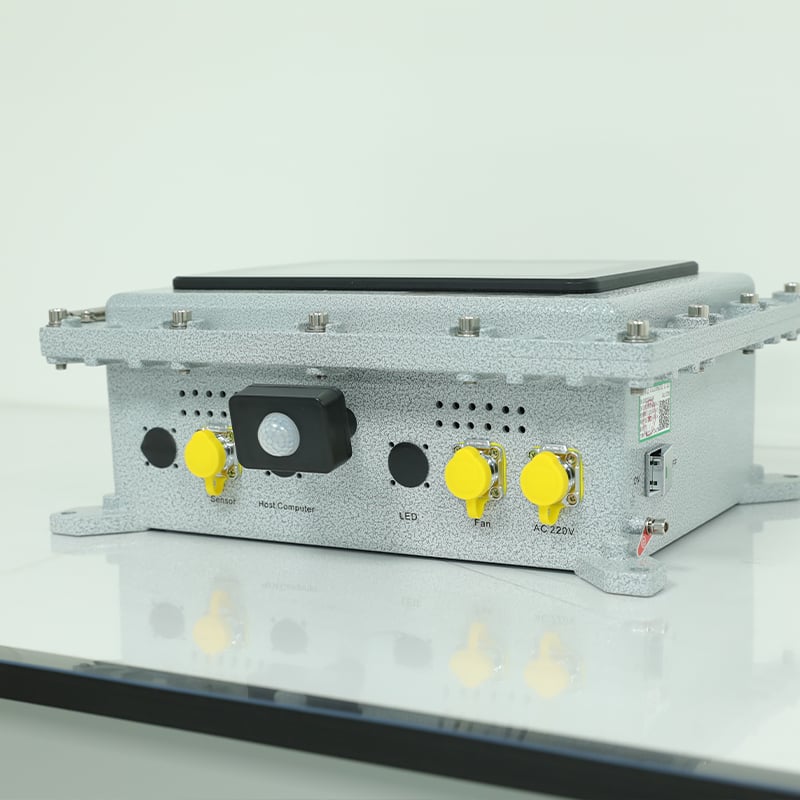

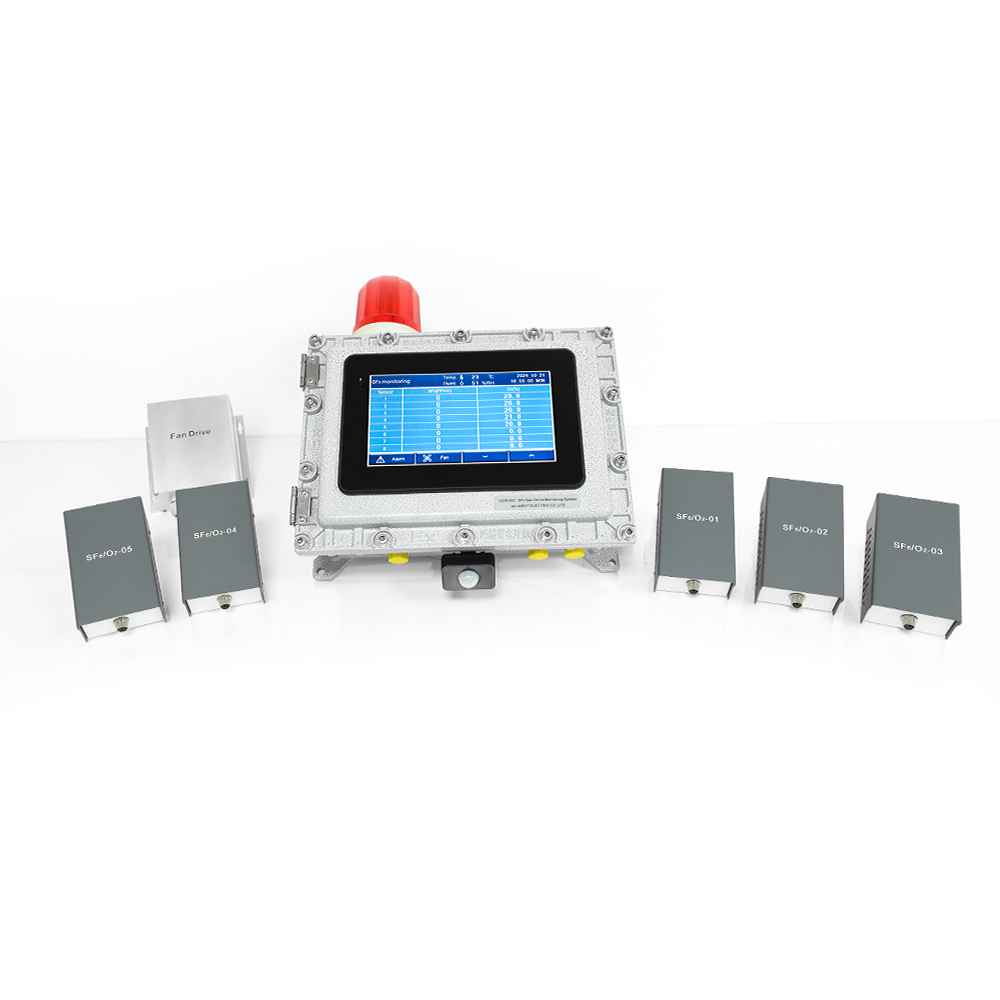

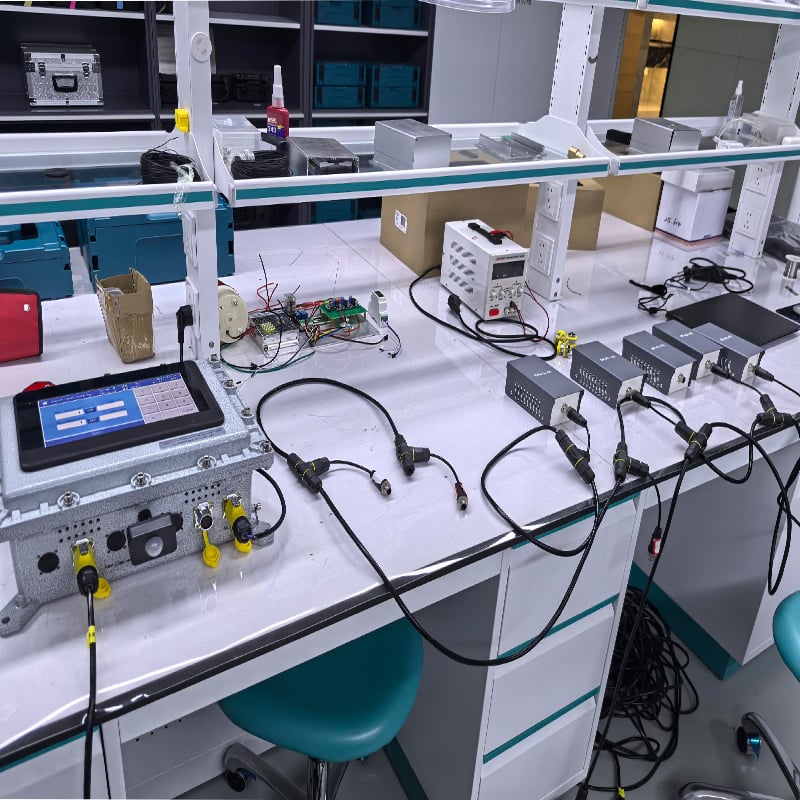

The GSA-0/SO SF6 Gas Leak Online Monitoring System is a professional, 24/7 online safety monitoring solution designed for enclosed high-voltage environments such as SF6 switchgear rooms, GIS halls, and transformer compartments. It integrates real-time SF6 leakage detection and oxygen (O₂) deficiency monitoring to address the dual hazards of SF6 leakage (a potent greenhouse gas) and oxygen displacement (asphyxiation risk).
Adopting high-sensitivity NDIR infrared sensing for SF6 and electrochemical sensors for O₂, the system delivers rapid, stable, and interference-free monitoring. Fully compliant with IEC 60480, GB/T 8905, and DL/T 639, it supports real-time data display, multi-channel alarm, and automatic linkage with ventilation systems, providing comprehensive safety protection for personnel and equipment in power utilities, manufacturing, and industrial sites.
Specifications
| Parameter | Specification |
| Model | GSA-0/SO |
| SF6 Detection Principle | NDIR Infrared Absorption |
| SF6 Measurement Range | 0–5000ppm |
| SF6 Detection Accuracy | ≤±2%FS |
| Response Time (SF6) | <30s (T90) |
| O₂ Detection Principle | Electrochemical Sensor |
| O₂ Measurement Range | 0–25% Vol |
| O₂ Detection Accuracy | ≤±1%FS |
| Temperature Range | -30°C~+99°C (±0.5°C) |
| Humidity Range | 10–99%RH (±0.5%RH) |
| Alarm Output | Audible/Visual, Relay, SMS/App |
| Ventilation Linkage | Built-in/External Fan Control (6A Max) |
| Communication | RS-485/Modbus-RTU, Ethernet, MQTT |
| Data Storage | 5M+ Records, USB Export (Excel/PDF) |
| Power Supply | AC/DC 220V±10%, 50Hz (Customizable) |
| Rated Power | <10W |
| Protection Grade | IP54 (Main Unit), IP66 (Sensor Probe) |
| Operating Environment | -25°C~+70°C, ≤95%RH (Non-Condensing) |
| Compliance Standards | IEC 60480, GB/T 8905, DL/T 639, CE |
| Overall Dimensions | 330×250×65mm (Main Unit) |
| Net Weight | 8kg (Main Unit) |
Applications
Core Scenarios
· GIS/SF6 Switchgear Rooms: Real-time monitoring of SF6 leakage and oxygen levels to prevent asphyxiation and equipment insulation failure.
· Transformer Compartments: On-line detection of SF6 leakage in oil-immersed transformers with SF6 bushings, ensuring safe operation of high-voltage transformers.
· High-Voltage Cable Rooms: Monitoring SF6 accumulation in cable compartments with gas-insulated joints, reducing fire and explosion risks.
· Power Substations: 24/7 safety monitoring for indoor SF6 equipment, supporting unattended substation operations.
Industry Verticals
· Power Utilities: Grid substations, transmission & distribution projects, and smart grid sites.
· Electrical Equipment Manufacturing: SF6 equipment production lines, quality control, and post-sales service sites.
· Industrial & Petrochemical: High-reliability power systems in refineries, chemical plants, and manufacturing facilities.
· Railway & Urban Infrastructure: Metro, high-speed railway, and urban rail traction power supply systems.
· New Energy Projects: Wind farms, solar power stations, and energy storage system HV switchgear rooms.
Advantages
All-In-One Safety Solution
Combines SF6 leakage detection and oxygen deficiency monitoring in a single system, replacing separate devices and reducing overall costs and installation complexity.
IEC Standard Full Compliance
Strictly adheres to international SF6 management standards, ensuring test data is recognized by global power grids and meets regulatory requirements for environmental protection and workplace safety.
Ultra-Sensitive & Rapid Response
High-sensitivity NDIR sensors enable early detection of micro-leaks (10ppmv), supporting predictive maintenance and preventing equipment failures and safety incidents.
Automatic Linkage for Emergency Response
Auto-triggers ventilation and alarms to quickly mitigate risks, minimizing human intervention and ensuring on-site personnel safety.
Low-Cost & Low-Maintenance
Long-life sensors reduce replacement costs, low power consumption lowers operational expenses, and one-click calibration simplifies maintenance, delivering excellent value for money.
Seamless System Integration
Supports multiple communication protocols for easy connection to SCADA, PLC, and cloud platforms, enabling centralized monitoring and management of multiple sites.
FAQ
Q: What standards does the GSA-0/SO comply with?
A: The system fully complies with IEC 60480, GB/T 8905, DL/T 639, and CE, meeting global SF6 safety and environmental protection requirements.
Q: Can it monitor both SF6 leakage and oxygen deficiency?
A: Yes. It simultaneously detects SF6 concentration and O₂ levels, providing early warning for both gas leakage and asphyxiation risks.
Q: Does it support automatic ventilation control?
A: Yes. It triggers external or built-in fans when alarms are activated to rapidly dilute SF6 and restore oxygen levels, ensuring on-site safety.
Q: How is the data stored and exported?
A: It supports up to 5 million historical records with timestamps and can export Excel/PDF reports via USB for compliance documentation and project handover.
Q: Is it suitable for outdoor substation environments?
A: Yes. It has an IP66-rated enclosure, explosion-proof design, and wide operating temperature range (-25°C~+70°C), making it suitable for harsh outdoor conditions.
Q: Can it integrate with existing SCADA systems?
A: Yes. It supports RS-485/Modbus-RTU, Ethernet, and IEC 61850 protocols, enabling seamless integration with SCADA, PLC, and cloud platforms for centralized monitoring.
Q: Warranty and after-sales support?
A: We provide a standard 1-year whole-machine warranty, lifetime technical support, on-site calibration, and maintenance services through our global service network. Extended warranty plans are available upon request.
