Description

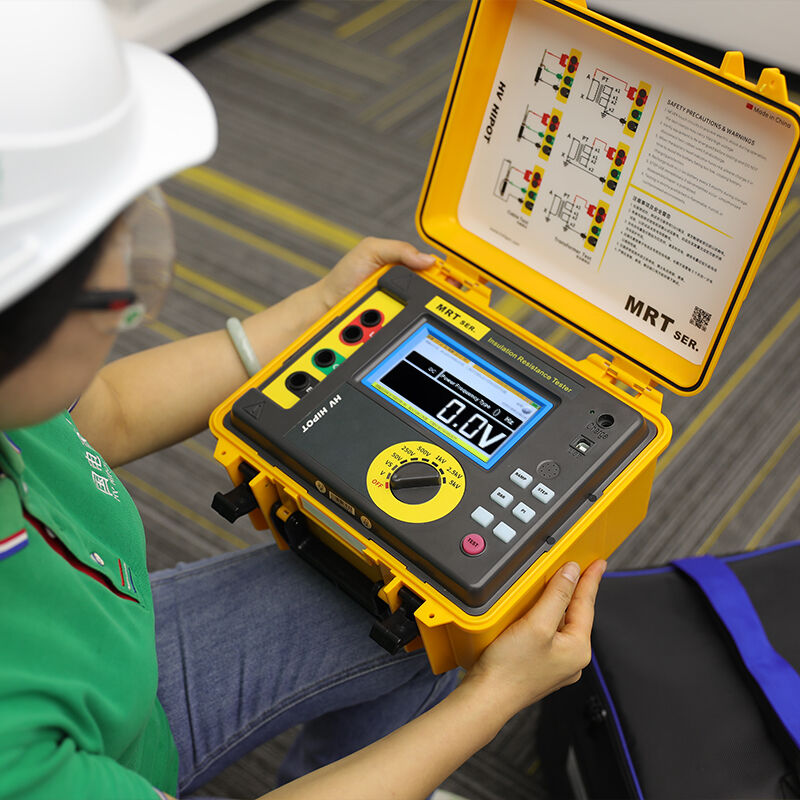

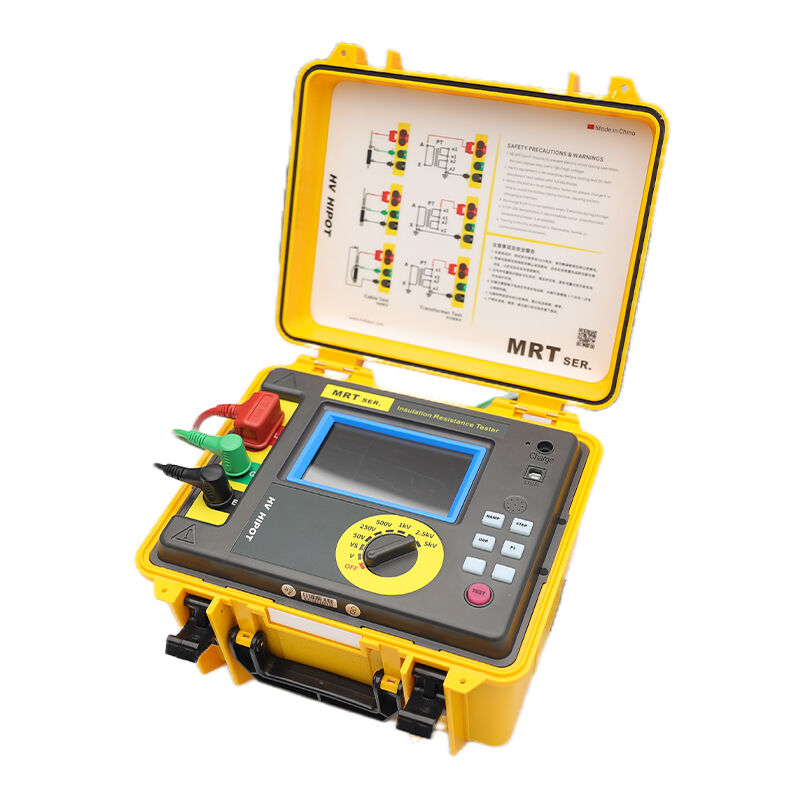

The MRT-3127 is a portable, battery-powered 10kV high-voltage insulation resistance tester (megohmmeter) designed for precision insulation diagnostics on high-voltage power equipment. It provides 5 selectable test voltages (250V–10kV) and measures up to 2000GΩ, with built-in PI, DAR, RAMP, SV diagnostic functions for evaluating insulation aging and moisture.
Featuring a large backlit LCD, Bluetooth/USB communication, rechargeable 12V battery, and CAT IV 600V safety rating, it delivers laboratory-grade accuracy in field conditions. Widely used for transformers, motors, generators, HV cables, switchgear, and bushings in power utilities, industrial plants, and maintenance teams.
Specifications
| Parameter | Specification |
| Test Voltages | 250V / 500V / 1kV / 5kV / 10kV (±10%) |
| Insulation Resistance | 0–2000GΩ；0.01MΩ–1GΩ resolution |
| Capacitance Range | 5nF–50μF |
| Accuracy | ±3%–±20% (rangedependent)；±5% typical |

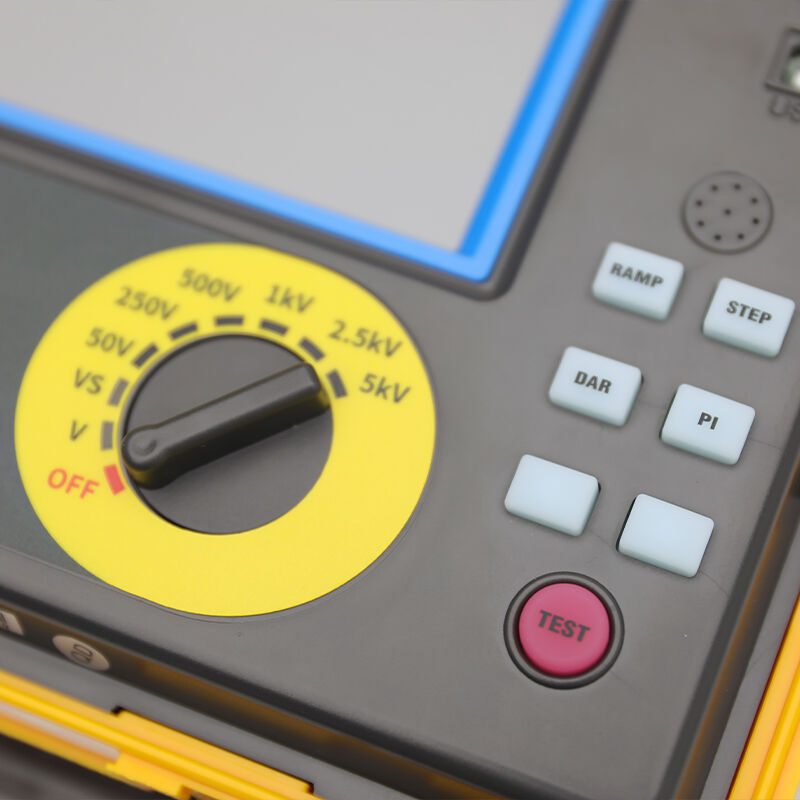

| Diagnostic Modes | IR, PI, DAR, RAMP, SV |
| Display | Backlit LCD (V/I/R/C/Time/Date) |
| Data Storage | 999 records；time/date stamp |
| Communication | Bluetooth 2.1+EDR, USB 1.1 |
| Power Supply | 12V rechargeable leadacid battery；8–12hrs operation |
| Charging | DC 15V/1A；3hrs full charge |
| Safety Rating | IEC 610101 CAT IV 600V；Double insulation |
| Protection | OverV, OverI, Shortcircuit, Arc detection |
| Dimensions | 208×225×130mm |
| Weight | ~4kg (main unit)；~8kg (with case/accessories) |
| Operating Temp | 10°C ~ +45°C |
| Compliance | DL/T 1550, IEC 610101, IEC 613261, CE |
Applications
Core Test Objects
· Power transformers: Winding insulation, PI/DAR, 10kV testing
· HV cables: XLPE/PVC cables, 5kV/10kV insulation, capacitance
· Motors/generators: Stator/rotor winding insulation, aging assessment
· Switchgear: Bushings, CT/PT, circuit breaker insulation
· Capacitors: Insulation resistance, leakage current, capacitance
· Substation equipment: Secondary circuits, control panels, relay coils
Typical Usage Scenarios
· Preventive maintenance: Scheduled insulation testing of HV assets
· Commissioning: New transformer/cable/motor insulation verification
· Fault diagnosis: Locating moisture, aging, or damaged insulation
· Emergency repair: Quick insulation check after outage or fault
· Quality control: Factory testing of HV equipment before delivery
Advantages
10kV High Voltage + 2000GΩ Ultra-Wide Range
Covers all HV equipment testing → one unit replaces multiple lower-voltage testers
Full Diagnostic Suite (PI/DAR/RAMP/SV)
Comprehensive insulation analysis → early warning of aging/moisture
Bluetooth/USB + PC Software
Wireless data & automated reports → saves time, reduces human error
Rechargeable + 12hr Battery Life
All-day field testing → no need for external power in substations
CAT IV 600V Safety Rating
Highest field safety standard → protects operator in high-risk environments
FAQ
Q: Can it test 10kV transformer windings?
A: Yes. 10kV test voltage and 2000GΩ range are ideal for transformer insulation.
Q: What’s the battery runtime?
A: 8–12 hours continuous use; recharge in 3 hours with 15V charger.
Q: Does it support wireless data transfer?
A: Yes. Bluetooth + USB; PC software for graphs and reports.
Q: Is it safe for live-site testing?
A: Yes. CAT IV 600V safety rating and arc detection protect operators.
Q: What’s included in the standard package?

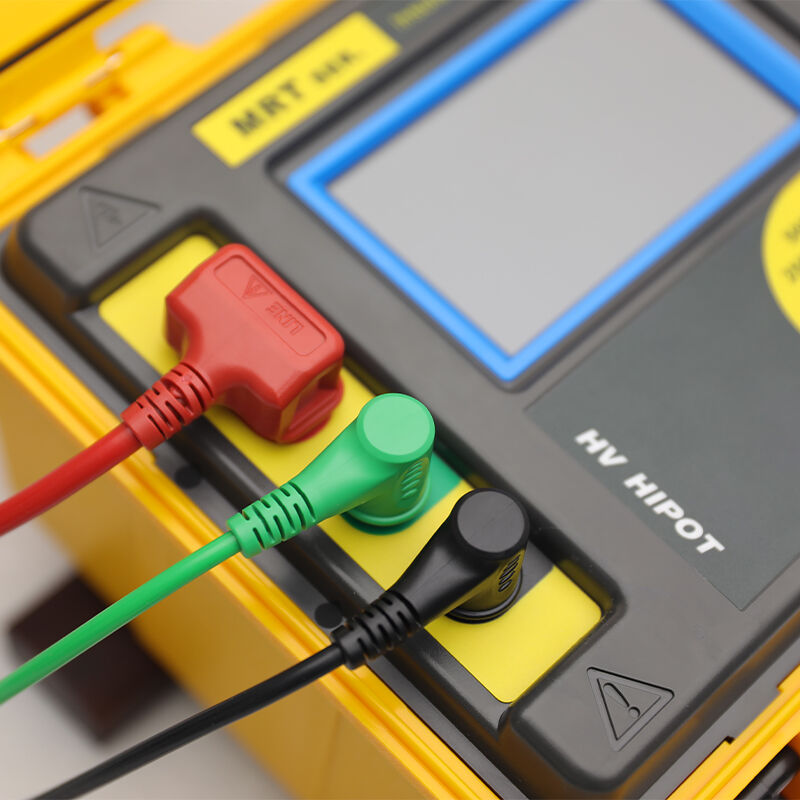

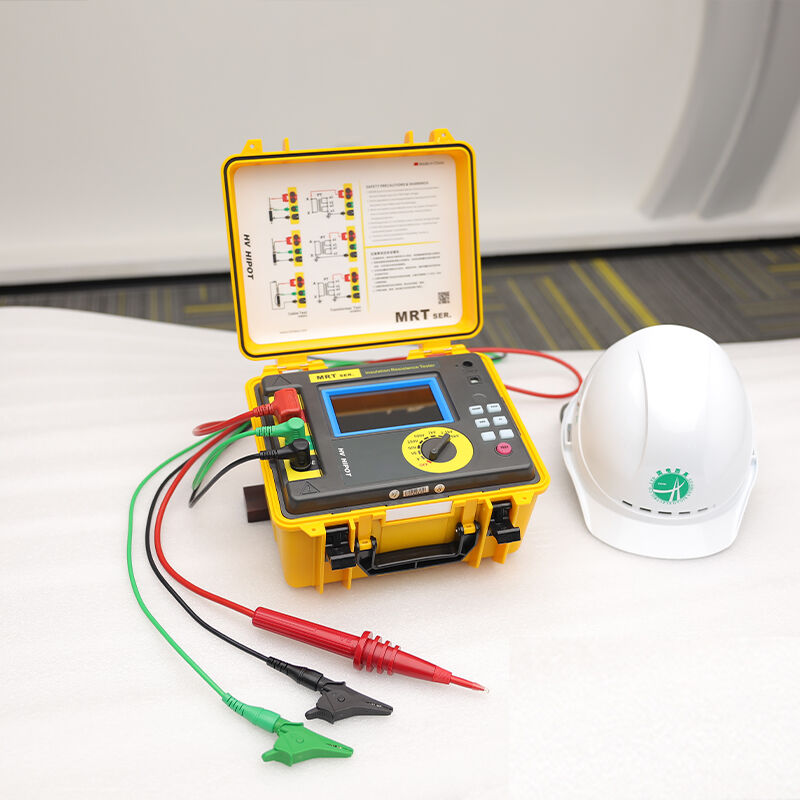

A: Main unit, 12V battery, charger, HV test leads, ground cable, carry case, user manual.
