PDM-IS Integrated Partial Discharge Test Platform
PDM-IS Digital Intelligent Integrated Partial Discharge Test Platform with Built-in High Voltage Source, Standard Coupling Capacitor and PD Analyzer, 0.1pC Ultra-High Sensitivity, Full-Shielded Structure, for Electrical Equipment Factory Test and Laboratory Insulation Detection
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description
GDPD-IS is a professional cabinet-type integrated partial discharge test platform designed for factory quality inspection, type test and metrological calibration of instrument transformers, insulators, small & medium power transformers, cable accessories and other medium-voltage electrical equipment in high-voltage equipment manufacturers, third-party testing institutions and power research laboratories. It strictly complies with IEC 60270, GB/T 7354-2003 and DL/T 848.3-2004 standards, adopting highly integrated all-in-one design that integrates high voltage power supply, standard coupling capacitor, PD detection unit and control system into a single shielded cabinet, eliminating the need for separate equipment matching and complex on-site wiring.
The platform is equipped with a built-in 1kVA high voltage test power supply with 2kV / 5kV / 10kV multi-gear output (customizable higher voltage), and a built-in 1nF standard coupling capacitor to ensure stable and reliable test loop matching. It adopts 6.5MHz high-speed single-channel synchronous acquisition technology, achieving 0.1pC ultra-high detection sensitivity and more than 120dB ultra-wide dynamic range, capable of capturing extremely weak partial discharge signals in early insulation failure. The full-shielded cabinet structure combined with programmable digital filtering and digital windowing technology effectively suppresses power frequency interference and environmental electromagnetic noise, ensuring accurate and reliable test results in factory and laboratory environments.
Specifications
| Parameter | Specification |
|---|---|
| System Parameters | |
| Compliance Standard | IEC 60270:2015, GB/T 7354-2018, DL/T 848.1-2016 |
| Integrated Components | PD-free high voltage power supply, digital PD detection unit, coupling capacitor, protective resistor, control system |
| System Background Noise | <0.1pC |
| Detection Sensitivity | 0.1pC |
| Measurement Range | 0.1pC ~ 10000nC |
| Dynamic Range | >80dB |
| High Voltage Power Supply | |
| Output Voltage | 0 ~ 15kV AC (continuous adjustable) |
| Output Capacity | 1kVA |
| Output Frequency | 50Hz/60Hz (switchable) |
| Voltage Regulation Accuracy | ±1% |
| Waveform Distortion | <3% |
| Anti-Interference Technologies | |
| Time-Domain Windowing | Yes |
| Frequency-Domain Filtering | Yes |
| Pulse Shape Recognition | Yes |
| Phase-Shift Interference Suppression | Yes |
| Background Noise Subtraction | Yes |
| Display & Operation | |

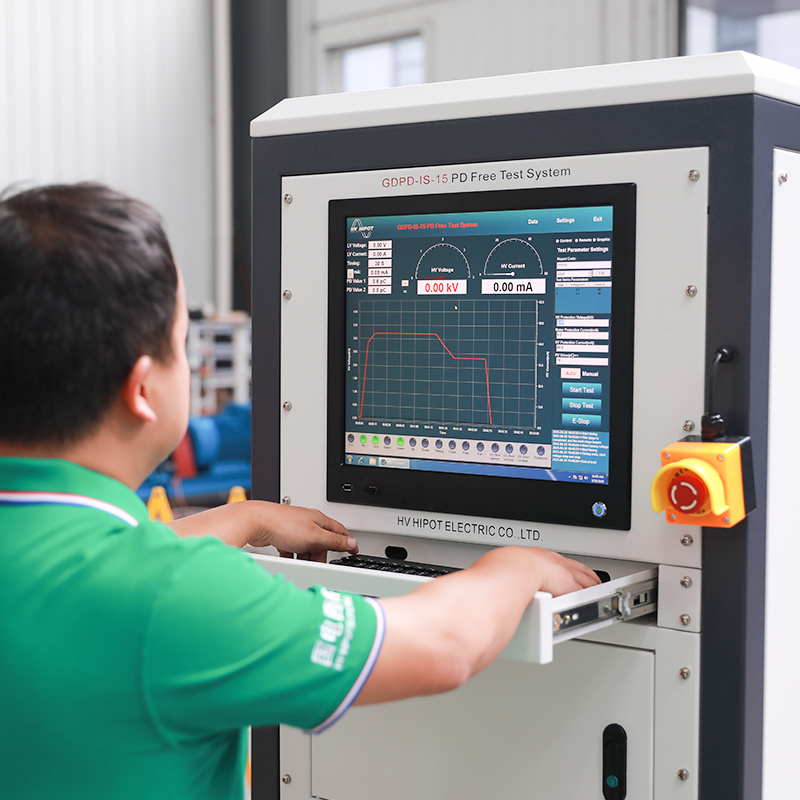

| Display | 12-inch high-resolution industrial touch screen |
| Operation Modes | Fully automatic mode, manual mode |
| Real-Time Monitoring | High voltage, high current, low voltage, low current, test time, PD waveform |
| Map Display | PRPD, time-domain waveform, pulse count, trend curve |
| Software Functions | |
| Automatic Test Process | One-click voltage boosting → withstand → PD detection → voltage reduction → report |
| Report Generation | Automatic Word/PDF report generation (IEC 60270 compliant) |
| Data Management | Unlimited storage, query, comparison, export |
| User Management | Multi-level authority management |
| Safety Protection | |
| Overvoltage Protection | Yes (adjustable threshold) |
| Overcurrent Protection | Yes (adjustable threshold) |
| Flashover Protection | Yes |
| Short Circuit Protection | Yes |
| Door Interlock Protection | Yes |
| Emergency Stop Button | Yes |
| General Parameters | |
| Power Supply | AC 220V±10%, 50Hz |
| Power Consumption | <2kW |

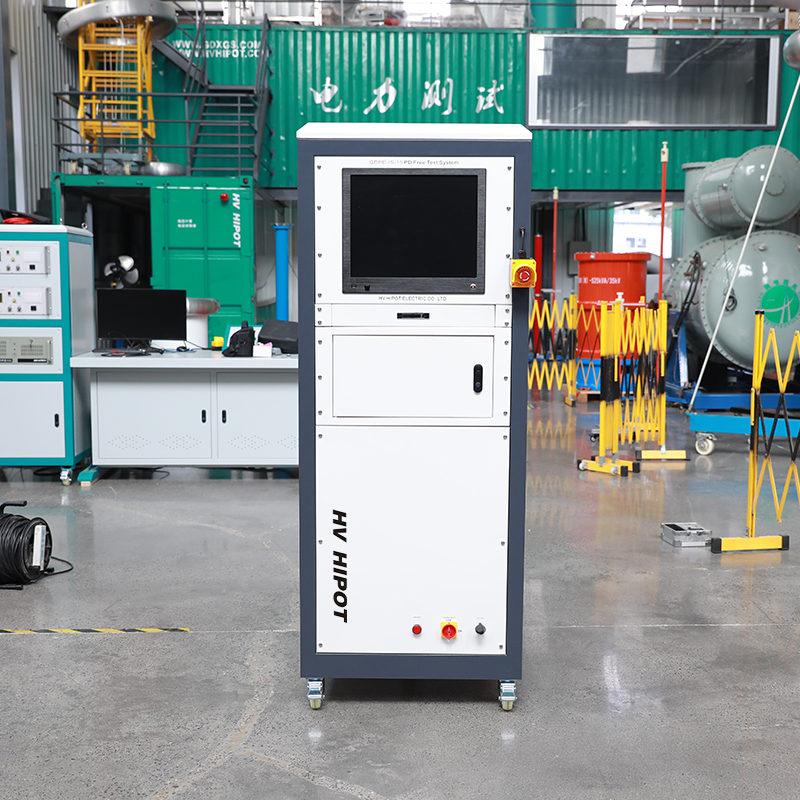

| Dimensions | 600×600×1200mm (L×W×H) |
| Weight | ~120kg |
| Housing | Cold-rolled steel cabinet with electrostatic spraying |
| Cable Management | Automatic retractable soft connections |
| Operating Temperature | -10℃ ~ +50℃ |
| Operating Humidity | ≤90% RH (non-condensing) |
| Altitude | ≤2000m |
Applications
Core Test Objects
- Micro transformers: 10kV and below distribution transformers, instrument transformers, electronic transformers
- Cable accessories: 10kV and below cable terminals, intermediate joints, cable connectors
- Low-voltage switches: Circuit breakers, contactors, relays, switchgear components
- Insulating materials: Epoxy resin, silicone rubber, insulating paper, insulating films
- Other components: Capacitors, reactors, bushings, surge arresters, electronic components
Typical Usage Scenarios
- Electrical component manufacturers: Batch factory inspection and quality control
- Transformer manufacturers: Small transformer production line testing
- Cable accessory manufacturers: Cable terminal and joint routine tests
- Insulating material manufacturers: Material insulation performance testing
- Technical schools and universities: Teaching and demonstration experiments
- Third-party testing institutions: Basic component performance testing
Advantages
Compliance with International Standard IEC 60270
Fully meets IEC 60270 and GB/T 7354 standards → test methods and quantitative results are internationally recognized and traceable
All-in-One Highly Integrated Design
Integrates HV power supply, coupling capacitor and PD detector → no separate matching required, saves laboratory space, reduces wiring workload by 70%
0.1pC Industry-Leading Detection Sensitivity
Ultra-high sensitivity, >120dB wide dynamic range → captures extremely weak early discharge signals, accurately evaluates insulation quality
Full-Shielded Structure + Multi-Stage Anti-Interference
Shielded cabinet + programmable filtering + digital windowing → effectively suppresses factory and laboratory interference, ensures test accuracy
Fully Automatic Intelligent Test Flow
One-click completion of the whole process, automatic protection → reduces operator skill requirements, avoids manual errors, improves test efficiency
Professional PC-Grade Analysis Software
Multiple map display modes, powerful data management, standard report generation → meets the needs of factory batch test and laboratory research
High Cost Performance Integrated Solution
Complete set delivery, pre-calibrated before delivery → ready to use out of the box, low later maintenance cost, ideal for medium-voltage equipment manufacturers
FAQ
Q: Can it be used for batch production line testing?
A: Yes. PDM-IS is specifically designed for batch factory inspection. It supports one-click fully automatic testing, which can complete a full test cycle in less than 2 minutes. The automatic report generation function eliminates manual report writing, greatly improving production line efficiency.
Q: Does it require a shielded room?
A: No. The platform adopts a fully enclosed electromagnetic shielding structure combined with multiple digital anti-interference technologies, which can effectively suppress environmental electromagnetic interference. It can obtain reliable test results in ordinary factory production environments without the need for an expensive shielded room.
Q: What is the maximum test capacitance it can handle?
A: PDM-IS can handle test capacitances up to 10μF, which covers all mainstream micro transformers, cable terminals, low-voltage switches and insulating materials.
Q: Can it automatically generate test reports?
A: Yes. The professional test software can automatically generate standardized Word/PDF test reports compliant with IEC 60270 standard, including test parameters, test data, PD maps and conclusions. Users can also customize the report format according to their needs.
