GD-4134E Portable Multi-Function Comprehensive Cable Locator
GD-4134E Digital Intelligent Comprehensive Cable Locator System Composed of Transmitter and Receiver, Adopting Electromagnetic Induction Principle, Supporting Active Multi-Frequency Signal & Passive Power Frequency Detection, for Underground Cable Route Tracing, Buried Depth Measurement, Cable Identification and Cable Sheath Ground Fault Pinpointing.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description

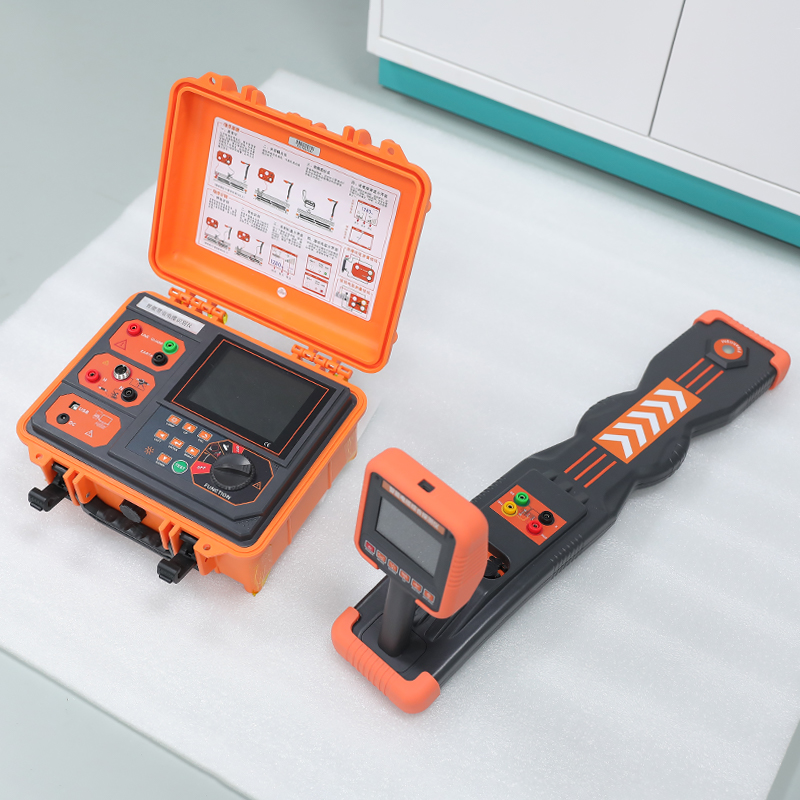

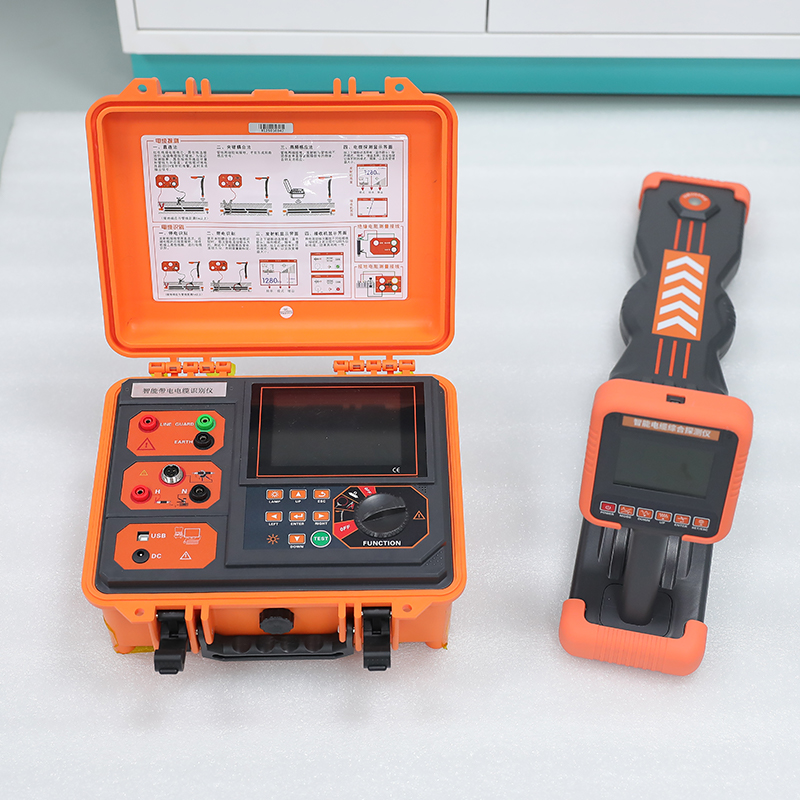

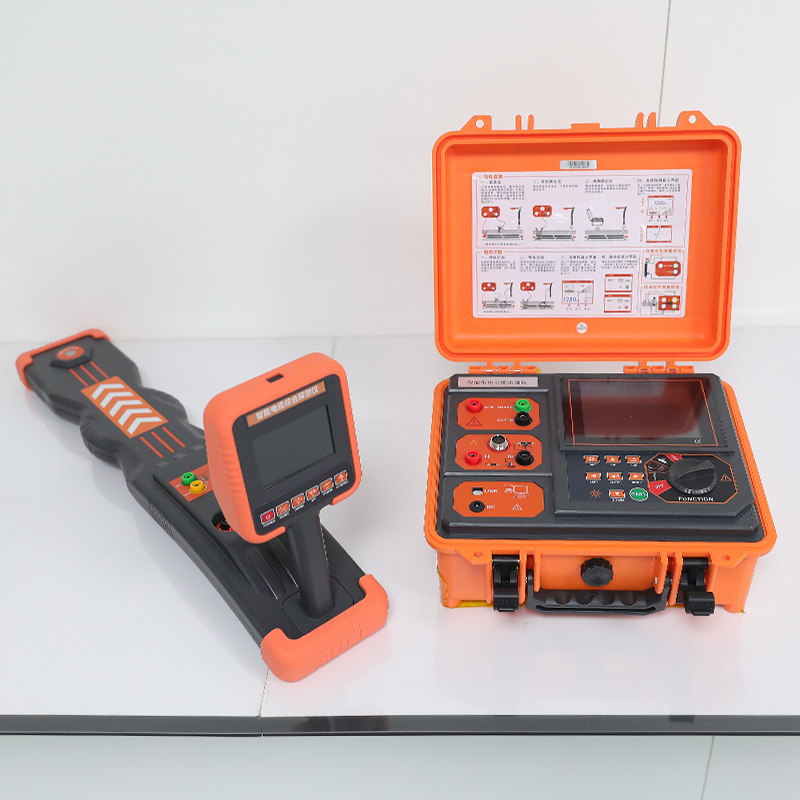

GD-4134E is a professional split-type multi-functional underground cable and metal pipeline detection system, consisting of a signal transmitter and a handheld receiver. Based on electromagnetic induction technology, it realizes integrated underground utility inspection, covering four core working scenarios: cable path tracing, real-time buried depth measurement, target cable identification among bundled cables, and cable sheath insulation fault pinpointing with optional A-frame sensor.
The system supports passive power frequency mode for quick scanning of live cables without connecting any signal source. For accurate tracing and identification, the transmitter outputs adjustable multi-frequency active signals via three connection methods: direct wiring, flexible clamp coupling and inductive radiation, applicable to both energized and de-energized cables. The receiver adopts high-precision digital filtering, peak/valley dual detection modes, electronic compass directional guidance and real-time signal waveform display, together with tracking validity judgment function to effectively suppress interference from adjacent parallel cables and metal pipelines.
Specifications
| Parameter | Specification |
|---|---|
| System Composition | Signal Transmitter + Handheld Receiver |
| Detection Principle | Electromagnetic Induction Method |
| Transmitter | |
| Active Output Frequencies | 640Hz, 1.28kHz, 8kHz, 33kHz, 82kHz, 197kHz optional |

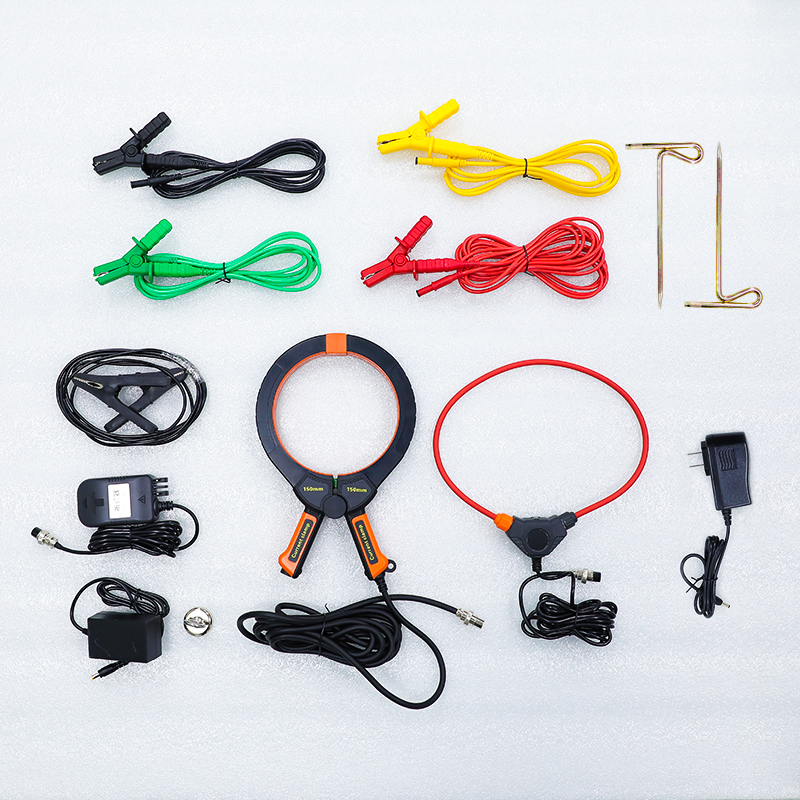

| Output Modes | Direct connection / Flexible clamp coupling / Inductive radiation |
| Power Output | Adjustable multi-level, automatic impedance matching & overload protection |
| Receiver | |
| Detection Modes | Active signal receiving + Passive 50/60Hz power frequency detection |
| Receiving Mode | Peak mode / Valley mode switchable |
| Auxiliary Functions | Electronic compass, real-time depth measurement, waveform & spectrum display, curve recording, tracking validity judgment |
| Depth Measuring Range | Up to 6m (varies with soil conditions and signal frequency) |
| Cable Identification | Supported with matched flexible clamp sensor |
| Sheath Fault Location | Supported with optional A-frame probe |
| Display | 3.5" high-brightness color LCD, CN/EN bilingual |
| Data Storage | Built-in memory for waveform and test records |
| Communication | USB 2.0 interface for data export |
| Power Supply | Built-in lithium battery for transmitter and receiver; AC charging adapter |
| Continuous Battery Life | ≥8 hours continuous working |
| Protection Grade | IP65 (host units) |
| Operating Temperature | -10℃ ~ +50℃ |
| Ambient Humidity | ≤85% RH (non-condensing) |
| Enclosure | Shockproof reinforced engineering plastic portable case with handle |
Applications
Core Test Objects
- 0.4kV ~ 35kV underground power cables, cable joints and terminals
- Metal water pipes, gas pipelines and communication metal pipelines
- Bundled cables inside cable trenches, cable wells and substations
Detectable Items
- Cable running path and buried depth
- Identify target cable among multiple bundled cables (live or de-energized)
- Locate cable sheath insulation breakdown and grounding fault points (with A-frame)
- Pipeline census before municipal construction excavation
Advantages
Four functions integrated, one set replaces multiple separate instruments
Path tracing, depth measurement, cable identification and sheath fault location reduce equipment carrying quantity
Passive + active dual detection modes
Passive mode for rapid live cable scanning; active mode for high-precision tracing and identification
Anti-interference tracking judgment function
Reduce misjudgment caused by dense parallel cables in urban complex environments
Safe live cable identification capability
Prevent safety accidents caused by mistakenly cutting energized cables during construction
IP65 industrial waterproof design
Suitable for outdoor, cable tunnel and rainy working conditions
Perfect compatibility with RE series cable fault test equipment
Form standardized complete cable fault testing workflow for power O&M teams
FAQ
Q: What is the difference between passive mode and active mode?
A: Passive mode: Receiver directly detects 50/60Hz electromagnetic field generated by live cables, no transmitter connection required, used for quick scanning to find approximate cable positions. It cannot measure depth accurately and cannot identify cables. Active mode: Transmitter injects specific frequency signal onto target cable, receiver tracks the signal, achieves accurate path tracing, depth reading and reliable cable identification. Required for formal positioning and cable discrimination work.
Q: Can GD-4134E identify live cables?
A: Yes. Equipped with flexible clamp sensor, the transmitter can couple signal onto energized cables without power cut. The receiver captures unique signal characteristics to pick out the target cable among multiple bundled cables, effectively avoid mistakenly cutting live cables during construction.
Q: How to complete sheath fault pinpointing?
A: Purchase optional A-frame probe. After confirming approximate fault distance via RE-TDR pre-locator, connect the A-frame to GD-4134E receiver, walk along the cable route to find the maximum signal mutation point, which is the sheath breakdown fault position.
