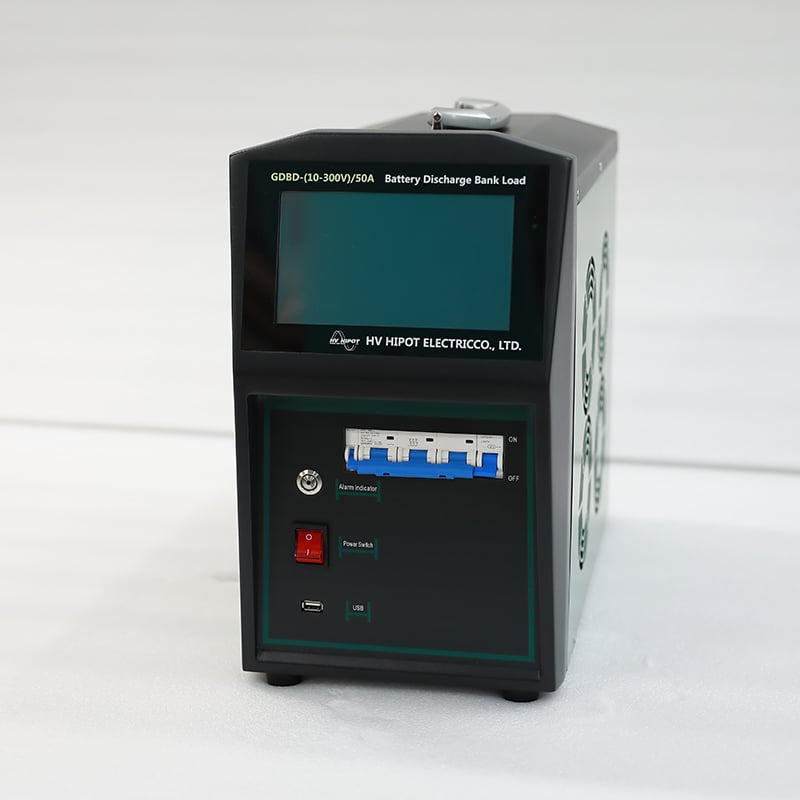

GDBD-(10-300V)50A Intelligent Battery Discharge Tester
GDBD-(10-300V)50A Digital Intelligent Constant Current Battery Discharge Tester with 10-300V Wide Voltage Range, 7" Touch Screen, Real-Time Monitoring, for Lead-Acid Battery Pack Capacity Verification.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description
GDBD-(10-300V)50A is a professional intelligent constant current battery discharge tester designed for capacity verification, routine maintenance and activation of lead-acid battery packs in substations, power plants, communication base stations, UPS systems and data centers. It strictly complies with DL/T 724-2000, DL/T 1392-2014 and IEC 60896-2:2008 standards, adopting 10-300V ultra-wide voltage design that covers 48V, 110V and 220V all mainstream DC power systems with one single instrument.
The instrument uses high-precision nickel-chromium alloy resistors as discharge load, featuring low temperature coefficient, no red heat phenomenon and long service life. Its advanced closed-loop constant current control technology ensures stable discharge current with ±1% accuracy throughout the entire discharge process, even as battery voltage drops. The 7-inch high-definition color touch screen provides intuitive operation and real-time display of battery voltage, discharge current, elapsed time, discharged capacity and dynamic curves.
Specifications
| Parameter | Specification |
|---|---|
| Compliance Standards | DL/T 724-2000, DL/T 1392-2014, IEC 60896-2:2008, IEEE 1188-2005 |
| Discharge Voltage Range | 10V ~ 300V DC continuous adjustable |
| Discharge Current Range | 0A ~ 50A DC continuous adjustable |
| Current Control Accuracy | ±1% FS |
| Voltage Measurement Accuracy | ±0.5% FS + 0.1V |
| Current Measurement Accuracy | ±1% FS + 0.1A |
| Voltage Resolution | 0.1V |
| Current Resolution | 0.1A |
| Capacity Measurement Range | 0Ah ~ 9999Ah |
| Discharge Load Type | High-precision nickel-chromium alloy resistor |
| Cooling Method | Intelligent forced air cooling |
| Display | 7-inch 1024×600 color TFT touch screen |
| Data Storage | 128MBit, stores 200 groups of test data + curves |

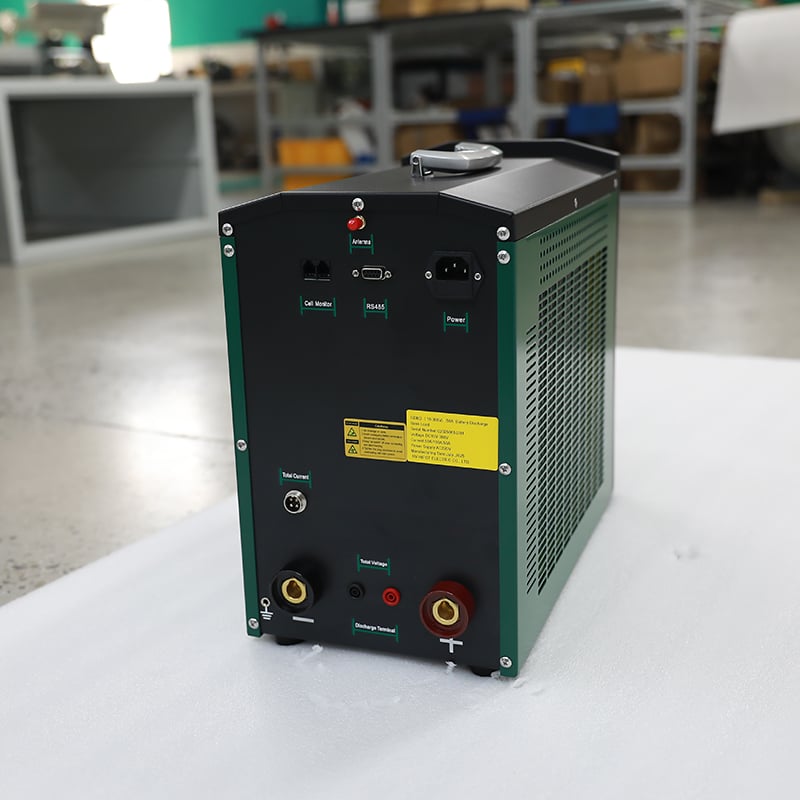

| Communication Interfaces | USB 2.0 (U-disk export), RS485 (remote control) |
| Termination Conditions | Discharge voltage, discharge time, discharge capacity, manual stop |
| Protection Functions | Over-voltage, under-voltage, over-current, over-temperature, reverse polarity, short circuit, fan fault, emergency stop |
| Power Supply | AC 220V±15%, 50Hz±2Hz |
| Power Consumption | ≤15kW (peak at 300V/50A) |
| Operating Temperature | -10℃ ~ +50℃ |
| Humidity | ≤85% RH (non-condensing) |
| Dimensions (L×W×H) | 550×450×250mm |
| Weight | ~18kg (including all components) |
| Enclosure | Rugged aluminum alloy, IP40 |
Applications
Core Test Objects
- Lead-acid battery packs: 2V, 4V, 6V, 12V series-connected valve-regulated lead-acid (VRLA) batteries
- DC power systems: 48V communication power systems, 110V and 220V substation DC systems
- Backup power systems: UPS systems, EPS systems, data center backup power
- Renewable energy systems: Solar photovoltaic power systems, wind power energy storage systems
Typical Usage Scenarios
- Power companies: Substation battery pack routine maintenance, capacity verification and acceptance test
- Telecom operators: Communication base station battery pack performance test and life assessment
- Data centers: UPS battery pack regular inspection and capacity test
- Battery manufacturers: Factory quality control, type test and batch inspection
- Industrial enterprises: Internal backup power system maintenance and safety assessment
Advantages
Compliance with Latest Industry Standards
Fully meets DL/T 724-2000, DL/T 1392-2014, IEC 60896-2:2008 → test results are globally recognized
Industry-Leading 10-300V Wide Voltage Design
Covers 48V, 110V and 220V all mainstream DC power systems → one instrument replaces multiple testers, reduces equipment cost
High-Precision Constant Current Control
±1% current accuracy, stable discharge throughout the entire process → ensures accurate and reliable battery capacity measurement
Safe & Reliable Nickel-Chromium Load
No red heat, no open flame, long service life → eliminates fire hazards during discharge testing
Comprehensive Real-Time Monitoring
7-inch touch screen, dynamic curve display, automatic capacity calculation → simplifies operation and improves test efficiency
8-Level Comprehensive Safety Protection
All-round protection for battery and instrument → ensures safe operation in various field environments
FAQ
Q: What is the purpose of battery discharge testing?
A: Battery discharge testing is used to verify the actual capacity of battery packs, identify weak or degraded batteries, and assess the overall health status of the battery system. According to DL/T 724-2000 standard, new battery packs should undergo a capacity test after installation, and operating battery packs should be tested every 1-3 years to ensure they can provide sufficient backup power during power outages.
Q: What is the advantage of 10-300V wide voltage design?
A: Traditional battery discharge testers are designed for specific voltage levels (48V, 110V or 220V), requiring multiple instruments for different systems. GDBD-(10-300V)50A's 10-300V wide voltage range covers all mainstream DC power systems from 48V to 220V, allowing one instrument to perform all battery discharge tests, significantly reducing equipment purchase and maintenance costs.
Q: How does the constant current control work?
A: The instrument adopts advanced closed-loop constant current control technology. It continuously monitors the discharge current in real time and automatically adjusts the load resistance to maintain the set current value, even as the battery voltage drops during discharge. This ensures that the discharge rate remains constant throughout the test, providing accurate and reliable capacity measurement results.
Q: Is it safe to discharge batteries with this instrument?
A: Yes. The instrument is equipped with an 8-level comprehensive safety protection system that protects both the battery and the instrument from various abnormal conditions. The nickel-chromium alloy load has no red heat phenomenon and no open flame, eliminating fire hazards. The reverse polarity protection prevents damage caused by incorrect battery connection.
