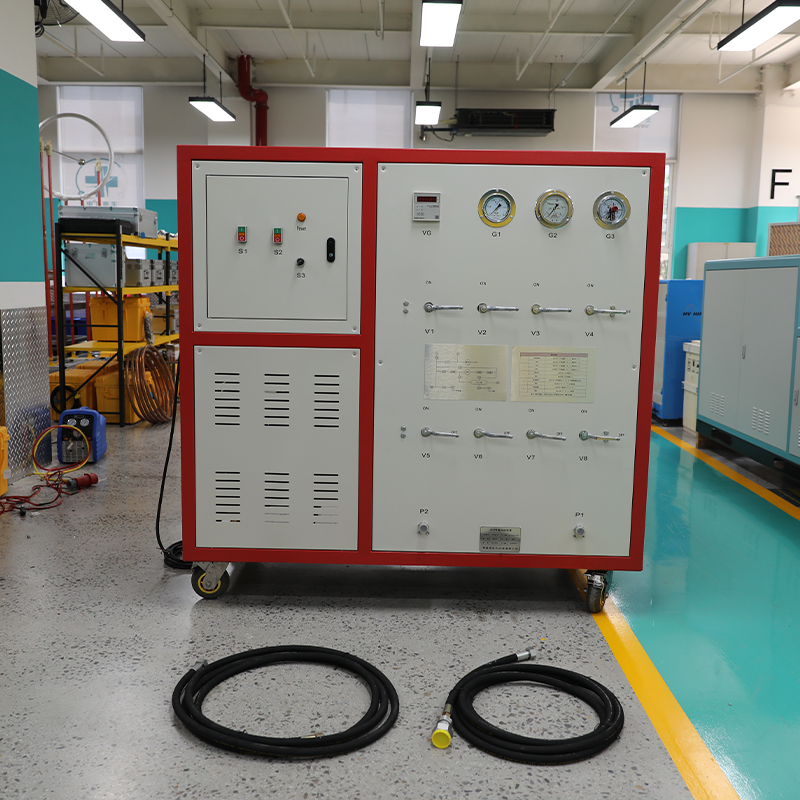

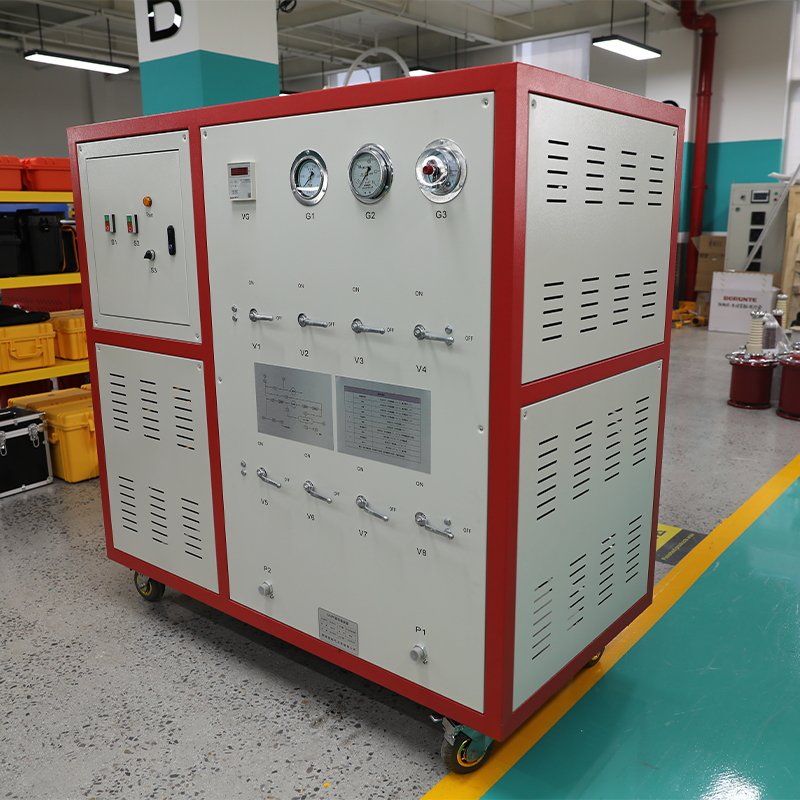

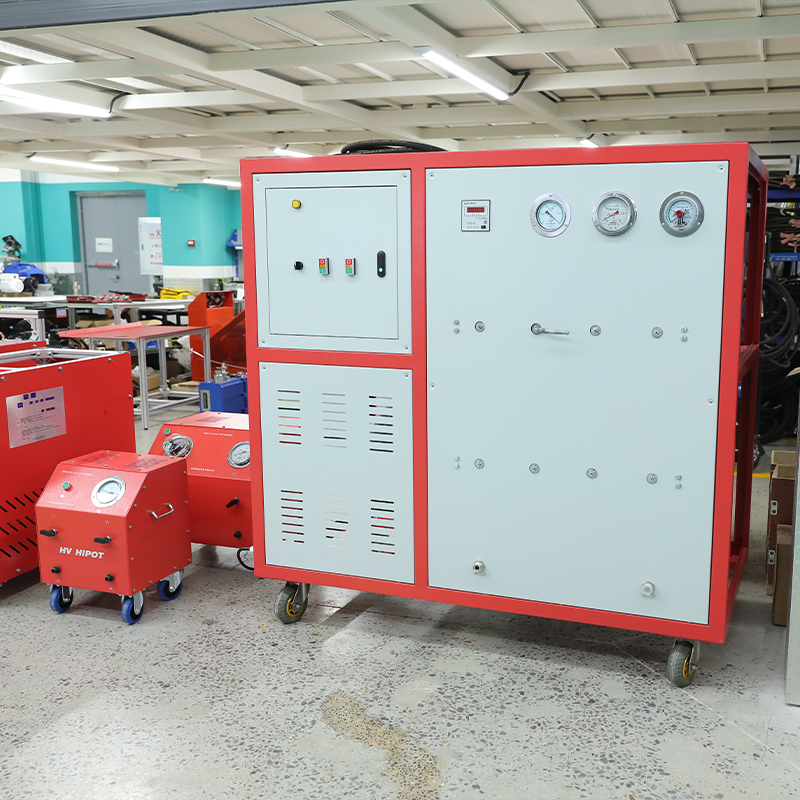

GSH-C-YYM-40/11-200 Mobile SF₆ Gas Recovery & Purification Unit
GSH-C-YYM-40/11-200 Digital Intelligent Mobile SF₆ Gas Recovery & Purification Unit with 40m³/h Recovery Rate, 11L/s Vacuum Pump, 200L Liquid Storage Tank, 5-Stage Purification System, PLC+Touch Screen Control, for 110kV-220kV GIS and SF₆ Circuit Breaker On-Site Service.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description
The GSH-C-YYM-40/11-200 is a professional, field-optimized mobile SF₆ gas recovery and purification unitexclusively designed for full-process SF₆ gas handling in 110kV-220kV GIS and SF₆ circuit breaker installation, maintenance and decommissioning. It fully complies with DL/T 662.1-2021, IEC 60480:2019 and GB/T 8905-2012 standards, adopting an oil-free hermetic high-pressure compressor, two-stage rotary vane vacuum pump and 5-stage deep purification system to achieve high-efficiency recovery and purification of SF₆ gas.
The unit features an integrated mobile design with heavy-duty casters and a towing device, making it easy to move between different equipment locations in substations and factories. Equipped with a 7-inch high-resolution color touch screen and PLC control system, it supports one-click completion of all processes including gas recovery, purification, vacuum pumping, gas refilling and liquid storage. The 5-stage purification system can remove moisture, oil, dust and other impurities from recovered SF₆ gas, making it meet the new gas standard and can be directly reused. With comprehensive safety interlock protection and reliable performance, it is the ideal solution for SF₆ gas management in power systems and electrical equipment manufacturing.
Specifications
| Parameter | Specification |
|---|---|
| Recovery System | |
| Recovery Rate | 40m³/h (gaseous, 0.1MPa, 20℃) |
| Recovery Initial Pressure | ≤0.8MPa |
| Recovery Final Pressure | ≤5kPa |
| Compressor Type | Oil-free hermetic high-pressure SF₆ compressor |
| Maximum Discharge Pressure | 3.8MPa |
| Vacuum System | |
| Vacuum Pump Type | Two-stage rotary vane vacuum pump |
| Pumping Speed | 11L/s |
| Ultimate Vacuum | ≤1Pa |
| Vacuum Pumping Time | ≤1 hour (1m³ volume from 0.1MPa to 133Pa) |
| Purification System | |
| Purification Process | Oil separator → Particle filter → Molecular sieve dryer → Activated carbon filter → Precision filter |
| Moisture Content After Purification | ≤50ppm (weight) |
| Oil Content After Purification | ≤5ppm (weight) |
| Particle Filtration Efficiency | 99.99% for particles ≥1μm |
| Adsorbent Regeneration | Vacuum heating regeneration |
| Storage System | |
| Storage Tank Volume | 200L |
| Nominal Liquid Storage Capacity | 200kg |
| Maximum Working Pressure | 3.8MPa |
| Safety Valve Opening Pressure | 4.0MPa |
| Control System | |
| Control Mode | PLC + 7-inch color touch screen |
| Operation Modes | Fully automatic, Semi-automatic, Manual |
| Real-time Monitoring | Pressure, temperature, vacuum degree, flow rate, process status |
| Data Logging | Automatic recording, USB export |
| Language Support | Chinese/English bilingual |
| General Parameters | |
| Power Supply | 3-phase 380V±10%, 50Hz |
| Rated Power | ~7.5kW |
| Noise Level | ≤75dB(A) |
| Dimensions | 1600(L)×800(W)×1400(H)mm |
| Weight | ~450kg |
| Mobile Design | Heavy-duty casters (2 fixed, 2 swivel with brakes) + towing device |
| Annual Leakage Rate | ≤0.5% |
| Operating Temperature | -10℃ ~ +40℃ |
| Operating Humidity | ≤90%RH (non-condensing) |
| Altitude | ≤2000m |
| Compliance | DL/T 662.1-2021, IEC 60480:2019, GB/T 8905-2012 |
Applications
Core Test Objects
- GIS gas insulated switchgear: 110kV-220kV GIS and HGIS equipment
- SF₆ circuit breakers: Live tank and dead tank SF₆ circuit breakers
- SF₆ transformers: SF₆-insulated power transformers
- SF₆ instrument transformers: SF₆-insulated CTs and VTs
- SF₆ gas cylinders: SF₆ gas cylinder filling and emptying
- Other SF₆ equipment: SF₆ load switches, disconnectors, surge arresters
Typical Usage Scenarios
- Power companies: Substation SF₆ equipment installation, maintenance and decommissioning
- GIS manufacturing plants: Factory type tests, outgoing quality control and on-site commissioning
- Transformer manufacturing plants: SF₆-insulated transformer production and testing
- Power engineering companies: Power grid construction and renovation projects
- Third-party testing institutions: SF₆ equipment acceptance and compliance testing
- Industrial and mining enterprises: SF₆ equipment routine maintenance
