Description
The GDWY-30KVA is a high-power, industrial-grade three-phase automatic AC voltage stabilizer designed to compensate grid voltage fluctuations and deliver stable 380V AC output for critical loads. Adopting servo motor-driven carbon brush regulation + compensation transformer technology, it provides ±2% high precision and fast response under severe voltage swings (±20% input) and dynamic load changes.

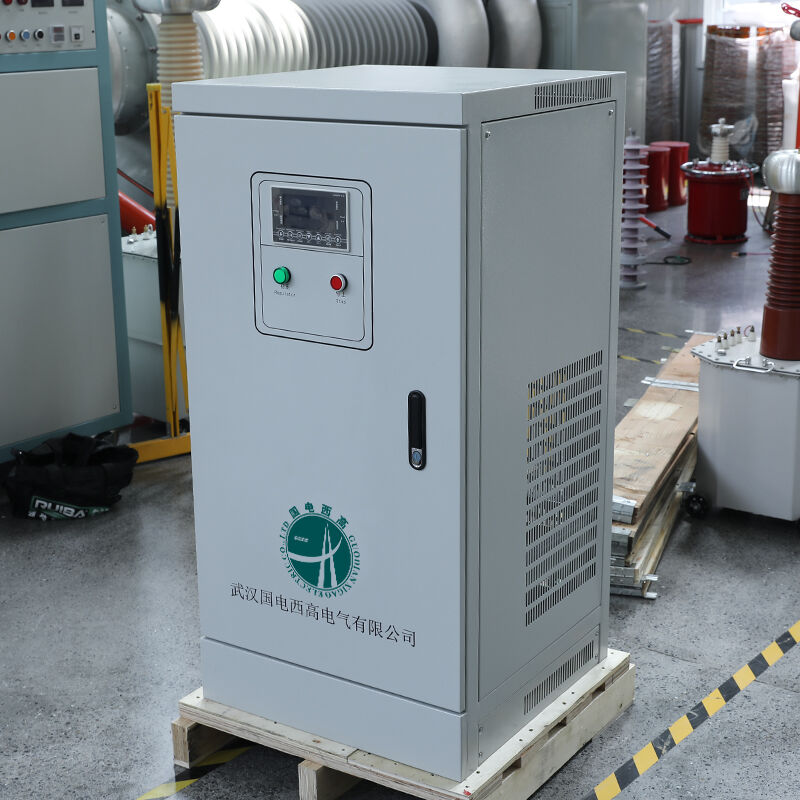

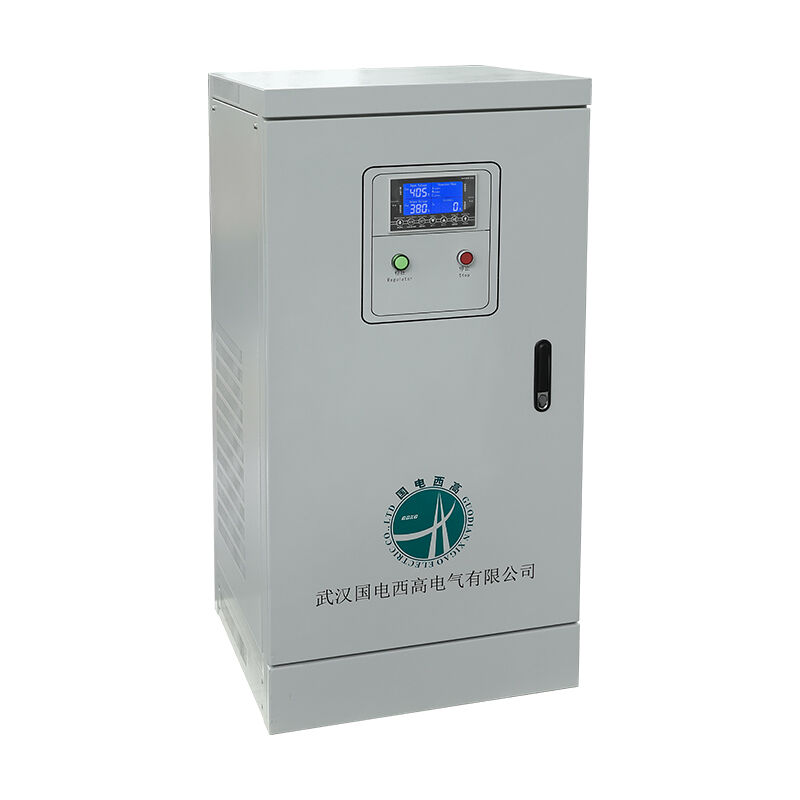

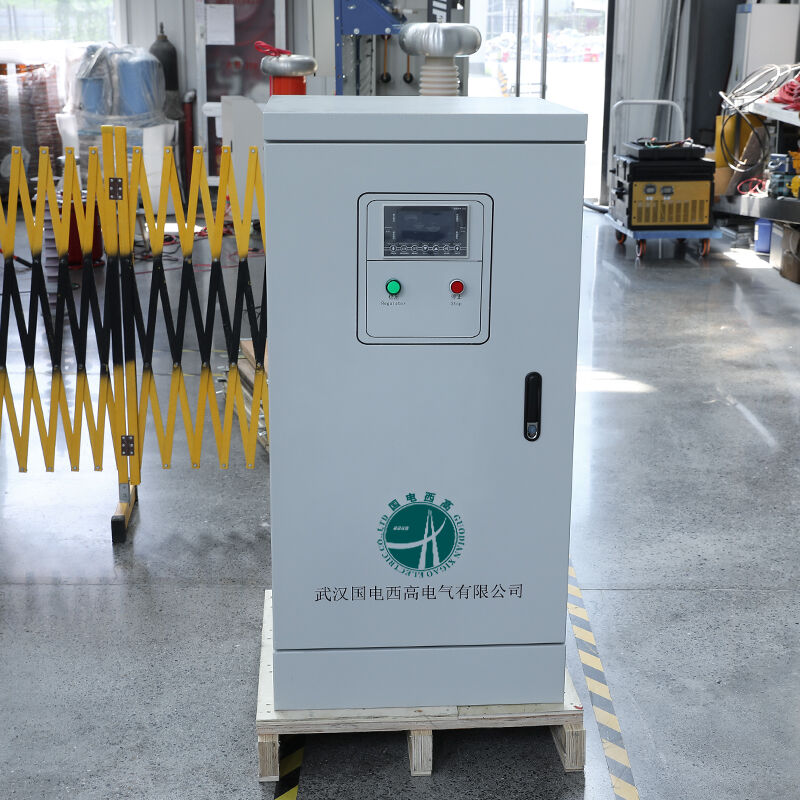

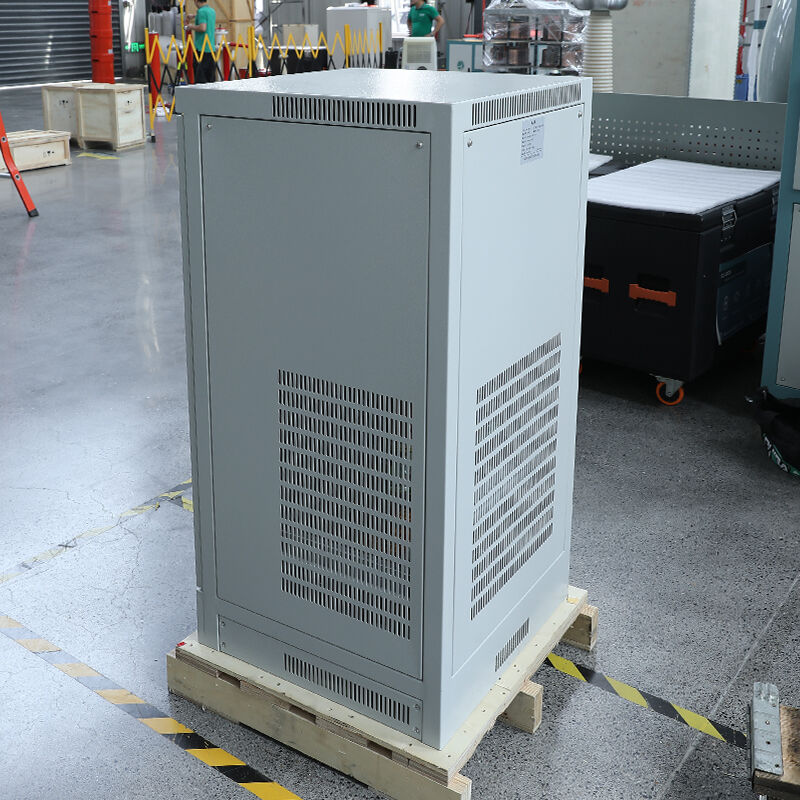

Built into a heavy-duty steel cabinet with intelligent control system, LCD digital display and comprehensive protection circuits, it ensures 24/7 continuous operation in harsh industrial and substation environments. Widely used for production lines, CNC machines, laboratory equipment, substations and data centers where stable voltage is critical.
Specifications
| Parameter | Specification |
| Rated Capacity | 30kVA (ThreePhase) |
| Input Voltage | 304–456V AC (±20% of 380V) |
| Output Voltage | 380V AC ±2% (LineLine)；220V±2% (PhaseNeutral) |
| Frequency | 50Hz/60Hz (Auto Adaptation) |
| Regulation Accuracy | ±2% (Optional ±1%) |
| Response Time | ≤1.5s (for ±10% Input Change) |
| Efficiency | ≥98% (Full Load) |
| Waveform Distortion | THD ≤0.5% |
| Display | LCD Digital Display (V/I/F/Load/Temp) |
| Protection | OverV, UnderV, Overload, ShortCircuit, OverTemp, Bypass |
| Cooling | Intelligent TemperatureControlled Fan |
| Insulation Class | Class F |
| Dimensions | 600×800×2000mm (Customizable) |
| Weight | ~280kg |
| Operating Temp | 10°C ~ +45°C |
| Compliance | DL/T 1074, IEC 61010, CE |
Applications
Core Loads
· Industrial equipment: CNC machines, injection molders, conveyor lines
· Power utilities: Substation secondary circuits, relay protection devices
· Laboratory & medical: Precision instruments, test benches, medical equipment
· Data centers: Servers, UPS, communication systems
· Commercial facilities: Elevators, air conditioners, large HVAC systems
Typical Usage Scenarios
· Unstable grid areas: Rural factories, remote mines, old urban districts
· High-precision manufacturing: Electronics assembly, precision machining
· Substation maintenance: On-site voltage stabilization for testing
· Emergency power: Generator output voltage regulation
· Energy saving: Reduce equipment damage and energy waste
Advantages
±20% Wide Input Adaptability
Covers severe grid fluctuations → stable output in poor power quality areas
30kVA High Power & 98% Efficiency
Sufficient capacity for large industrial loads → energy-saving & cost-effective
Servo Control + ±2% Precision
Fast, accurate regulation → protects expensive precision equipment
All-Weather Industrial Cabinet
Dustproof, waterproof, wide temp range → 24/7 operation in harsh environments
Full Protection + Bypass Design
Safe operation & easy maintenance → minimize downtime risk
FAQ
Q: Can it handle unbalanced three-phase loads?
A: Yes. It supports independent phase voltage regulation for unbalanced loads.
Q: What’s the maximum input voltage fluctuation it can handle?
A: ±20% (304–456V) of rated 380V, suitable for poor grid quality areas.
Q: Is it suitable for 24/7 continuous operation?
A: Absolutely. Industrial-grade design with 100,000+ hours lifespan ensures reliable continuous operation.
Q: Does it have a bypass switch for maintenance?
A: Yes. Manual bypass switch allows direct grid power supply during maintenance.
Q: What’s included in the standard package?
A: Main unit, power cables, user manual, warranty card, installation drawing.
