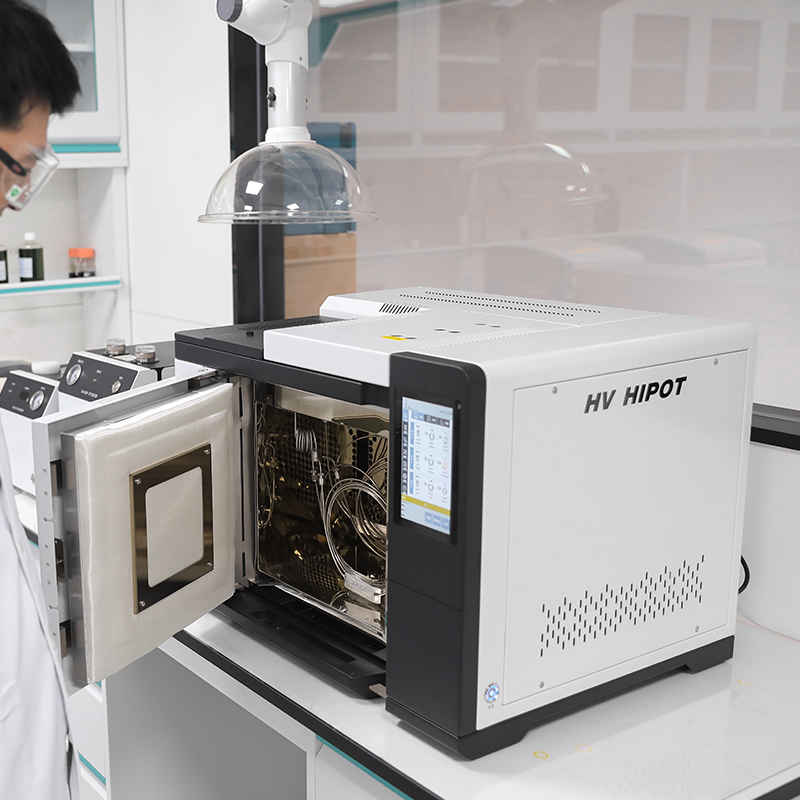

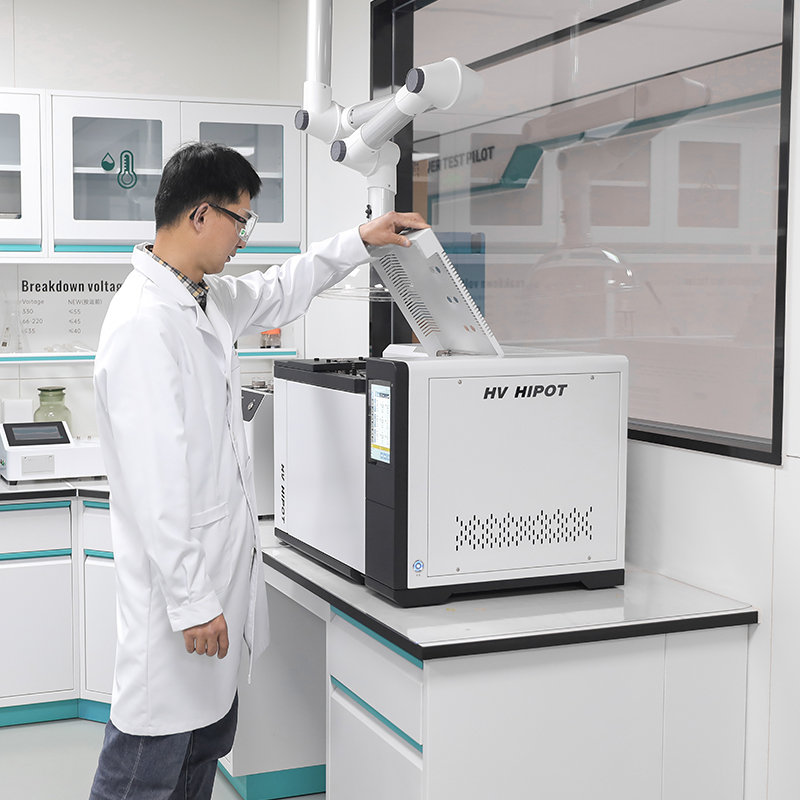

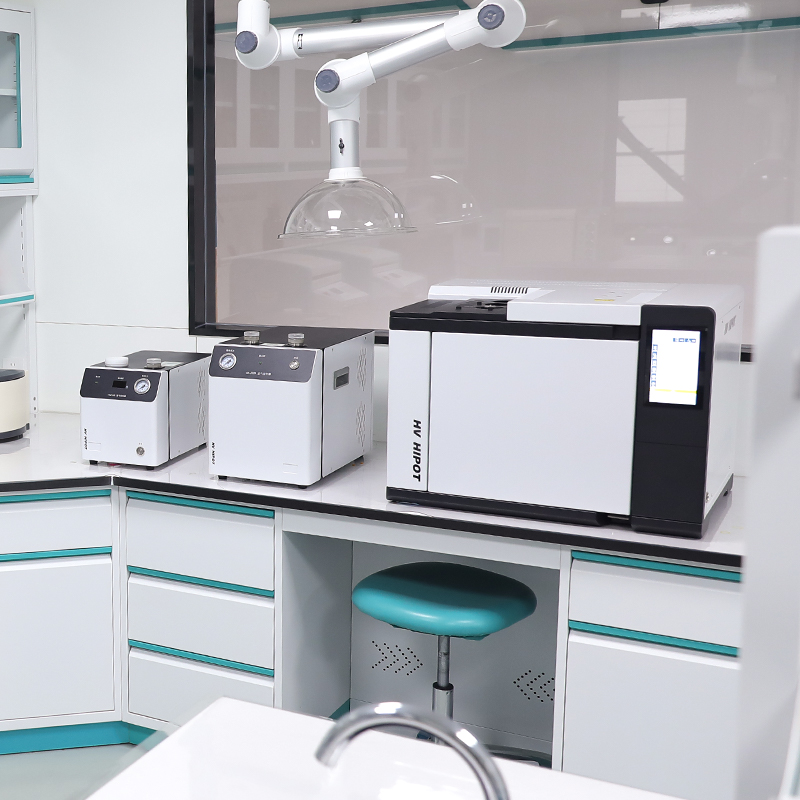

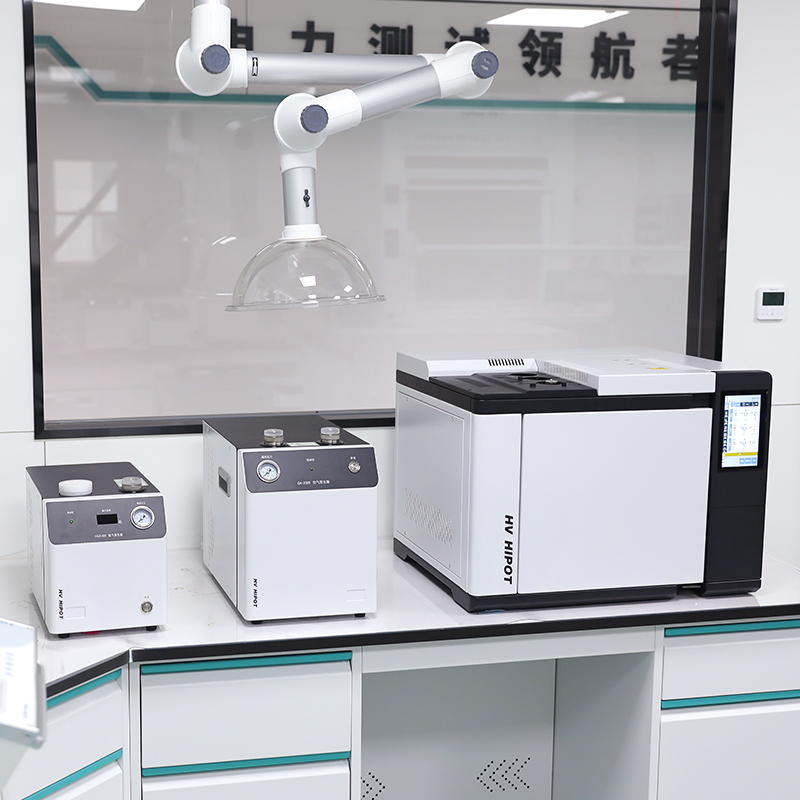

OGC-9820Pro High-Precision Insulation Oil Gas Chromatograph Analyzer
OGC-9820Pro is a high-precision lab-grade insulation oil gas chromatograph analyzer. It delivers accurate dissolved gas analysis (DGA) for oil-immersed transformers, enabling reliable insulation fault diagnosis and predictive maintenance, fully compliant with IEC 60599 and ASTM D3612 standards.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description
The OGC-9820Pro Insulation Oil Gas Chromatograph Analyzer is a professional, high-precision laboratory-grade instrument engineered for comprehensive dissolved gas analysis (DGA) of insulating oils used in high-voltage electrical equipment. Adopting advanced dual-detector (FID + TCD) technology with a nickel catalyst converter and fully automatic headspace sampling system, it delivers accurate, repeatable measurement of 9 characteristic dissolved gases generated by transformer insulation degradation under thermal and electrical stress.
With an industry-leading detection limit of 0.01ppm for acetylene (C2H2), 15-minute fast analysis per sample, and built-in multi-algorithm fault diagnosis software, this analyzer enables early detection of internal transformer faults such as partial discharge, overheating, arcing, and insulation breakdown. Fully compliant with IEC 60567, ASTM D3612-C, GB/T 7252, and GB/T 17623 international and domestic standards, it is the definitive solution for power utilities, transformer manufacturers, industrial maintenance teams, third-party testing institutions, and research laboratories worldwide. It is optimized for new oil incoming inspection, in-service oil routine monitoring, post-fault diagnosis, and transformer lifecycle management.
Specifications
| Parameter Category | Specification |
| Core Detection Performance | |
| Model | OGC-9820Pro |
| Detection Principle | Gas Chromatography (GC) with FID + TCD dual detectors + nickel catalyst converter |
| Detected Gases | H₂, CH₄, C₂H₆, C₂H₄, C₂H₂, CO, CO₂, O₂, N₂ (9 gases total) |
| Minimum Detection Limit | C₂H₂: ≤0.01ppm; H₂: ≤0.1ppm; CH₄: ≤0.1ppm; CO: ≤0.5ppm; CO₂: ≤5ppm |
| Measurement Accuracy | ≤±2% Relative Standard Deviation (RSD) for all gases |
| Analysis Time | ≤15 minutes per sample |
| Chromatography System | |
| Detectors | Flame Ionization Detector (FID) + Thermal Conductivity Detector (TCD) |
| FID Detection Limit | ≤5×10⁻¹² g/s (n-hexadecane) |
| TCD Sensitivity | ≥10000 mV·mL/mg (benzene) |
| Chromatographic Columns | Dedicated transformer oil analysis packed columns (2 columns) |
| Temperature Control Zones | 5 independent zones (column oven, injector, FID, TCD, converter) |
| Temperature Control Range | Room temperature +10℃ ~ 450℃ |
| Temperature Control Accuracy | ±0.1℃ |
| Programmed Temperature Ramp | 16-step programmable, 0.1~40℃/min ramp rate |
| Headspace Sampler | |
| Sample Capacity | 12-position automatic headspace sampler |
| Headspace Oven Temperature | Room temperature +10℃ ~ 200℃, ±0.1℃ accuracy |
| Injection Volume | 0.1~5mL adjustable |
| Cross-Contamination Prevention | Automatic needle cleaning and sample path purging |
| Operation & Data Management | |
| Display | 10.1-inch high-brightness industrial touchscreen |
| Operation Modes | Fully automatic mode + manual mode |
| Data Storage | 1TB SSD, expandable up to 4TB |
| Data Export | PDF, Excel, CSV formats |
| Communication Interfaces | Ethernet, USB, RS-232 |
| Remote Control | Ethernet-based remote monitoring and control |
| Power & Environmental Specifications | |
| Power Supply | AC 220V±10%, 50/60Hz |
| Rated Power Consumption | ≤2000W |
| Operating Temperature | 10℃ ~ +35℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Operating Humidity | ≤85% RH (non-condensing) |
| EMC Compliance | IEC 61000-4 series |
| Compliance Standards | IEC 60567, ASTM D3612-C, GB/T 7252, GB/T 17623, IEC 61010, CE |
Applications
Core Test Objects
· Insulating mineral oil for power transformers, distribution transformers, and instrument transformers (CT/PT)
· Insulating oil for high-voltage circuit breakers, switchgears, and GIS equipment
· Synthetic ester insulating oil, natural ester (vegetable-based) insulating oil, and other environmentally friendly insulating fluids
· Shunt reactors, grounding transformers, and other oil-immersed high-voltage equipment
Industry-Specific Usage
· Electric Power Utilities: Routine oil quality monitoring, substation transformer preventive maintenance, and post-fault diagnosis for transmission and distribution assets
· Transformer & Electrical Equipment Manufacturers: Production line quality control, factory outgoing inspection, and type testing for transformers and HV equipment
· Industrial & Petrochemical Facilities: Insulating oil testing for critical power transformers in high-reliability production plants and hazardous areas
· Rail Transit & Urban Infrastructure: Traction power supply equipment insulating oil testing for metro, high-speed railway, and urban rail transit systems
· Renewable Energy Projects: Wind turbine and solar photovoltaic step-up transformer oil monitoring
· Third-Party Testing & Certification Bodies: Compliance testing, performance verification, and arbitration testing of insulating oils
· Research & Academic Institutions: Insulating material aging research, transformer fault mechanism research, and high-voltage engineering experimental research
Advantages
Strict Global Standard Full Compliance
Fully designed, calibrated, and tested in accordance with IEC 60567 (Oil-filled electrical equipment – Sampling of gases and oil and analysis of free and dissolved gases), ASTM D3612-C (Standard Test Method for Analysis of Gases Dissolved in Electrical Insulating Oil by Gas Chromatography), GB/T 7252, and GB/T 17623 international standards. Test data is globally recognized, meeting the strict requirements of transformer export certification, grid access, and third-party laboratory accreditation.
Unmatched Detection Sensitivity & Accuracy
0.01ppm ultra-low detection limit for acetylene (C₂H₂), the key indicator of arcing faults, enables detection of incipient faults months or even years before they escalate into catastrophic failures. ≤±2% RSD measurement accuracy ensures consistent and reliable test results, providing a definitive basis for transformer maintenance decisions.
Fully Automated High-Throughput Analysis
Integrated 12-position automatic headspace sampler eliminates manual sample preparation and injection, enabling unattended batch analysis of up to 12 samples. 15-minute fast analysis per sample drastically improves laboratory throughput, making it ideal for high-volume testing in transformer factories and power utilities.
Comprehensive AI-Powered Fault Diagnosis
Built-in multi-algorithm fault diagnosis software automatically identifies fault types (partial discharge, overheating, arcing) and severity levels, providing clear maintenance recommendations. Long-term trend analysis enables predictive maintenance, optimizing transformer lifecycle management and reducing unplanned outages.
Superior System Stability & Low Maintenance
Industrial-grade components, EPC gas control system, and advanced temperature control technology ensure long-term baseline stability and reliable operation. Low maintenance design and easy access to consumables minimize downtime and total cost of ownership.
Seamless Laboratory Integration
Ethernet connectivity and standard data export formats enable seamless integration with laboratory information management systems (LIMS). Remote monitoring and control functionality supports centralized management of multiple analyzers, improving laboratory operational efficiency.
FAQ
Q: What international standards does the OGC-9820Pro comply with?
A: The analyzer is fully designed, calibrated, and tested in accordance with IEC 60567, ASTM D3612-C, GB/T 7252, and GB/T 17623 international standards for dissolved gas analysis in insulating oils. Test data is globally recognized for transformer quality certification and grid access compliance.
Q: What gases can the OGC-9820Pro detect?
A: It can simultaneously measure 9 characteristic dissolved gases: Hydrogen (H₂), Methane (CH₄), Ethane (C₂H₆), Ethylene (C₂H₄), Acetylene (C₂H₂), Carbon Monoxide (CO), Carbon Dioxide (CO₂), Oxygen (O₂), and Nitrogen (N₂), covering all key indicators for transformer fault diagnosis.
Q: What is the minimum detection limit for acetylene (C₂H₂)?
A: The minimum detection limit for acetylene is ≤0.01ppm, which is far below the 1ppm warning threshold specified in international standards, enabling early detection of incipient arcing faults in transformers.
Q: Does it support automatic headspace sampling?
A: Yes. It features an integrated 12-position automatic headspace sampler compliant with ASTM D3612-C standard, enabling fully automated sample processing from oil injection to analysis, eliminating manual operation and human error.
Q: What fault diagnosis algorithms are built-in?
A: The analyzer includes comprehensive fault diagnosis algorithms: IEC 60599 three-ratio method, Duval triangle method, Rogers ratio method, and key gas method. It also features AI-enhanced fault severity classification and long-term trend analysis for predictive maintenance.
