GDOT-6B Insulating Oil Dielectric Strength Tester | Laboratory High-Volume Oil Insulation Testing
GDOT-6B Digital Intelligent Fully Automatic Insulating Oil Dielectric Strength Tester with 80kV Adjustable Output, 6-Cup Integrated Structure, Microprocessor Control, Multi-Standard Test Programs, for Laboratory High-Volume Power Transformer Insulating Oil Insulation Performance Evaluation.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description

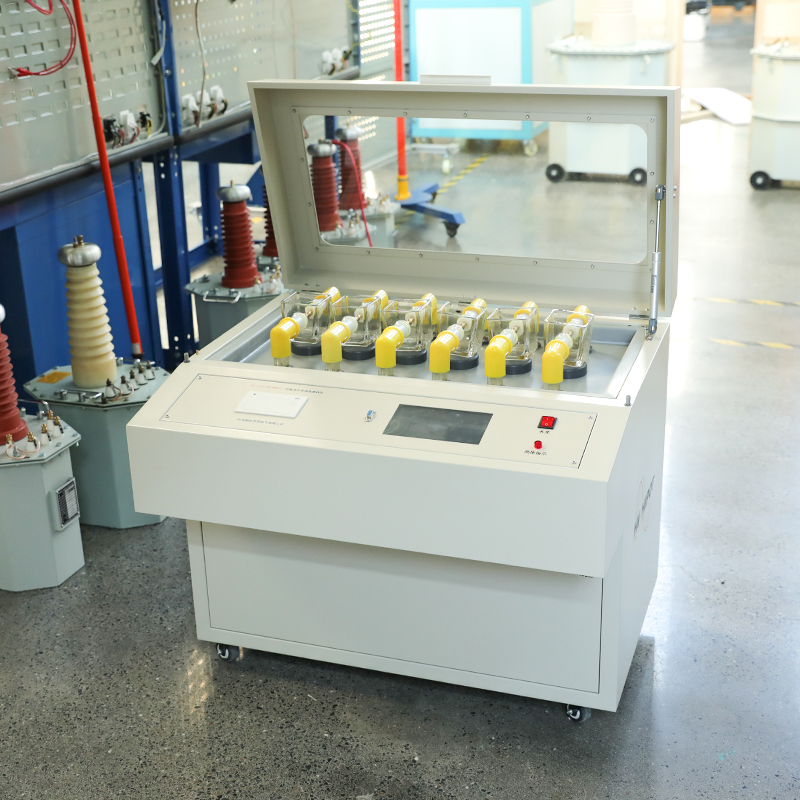

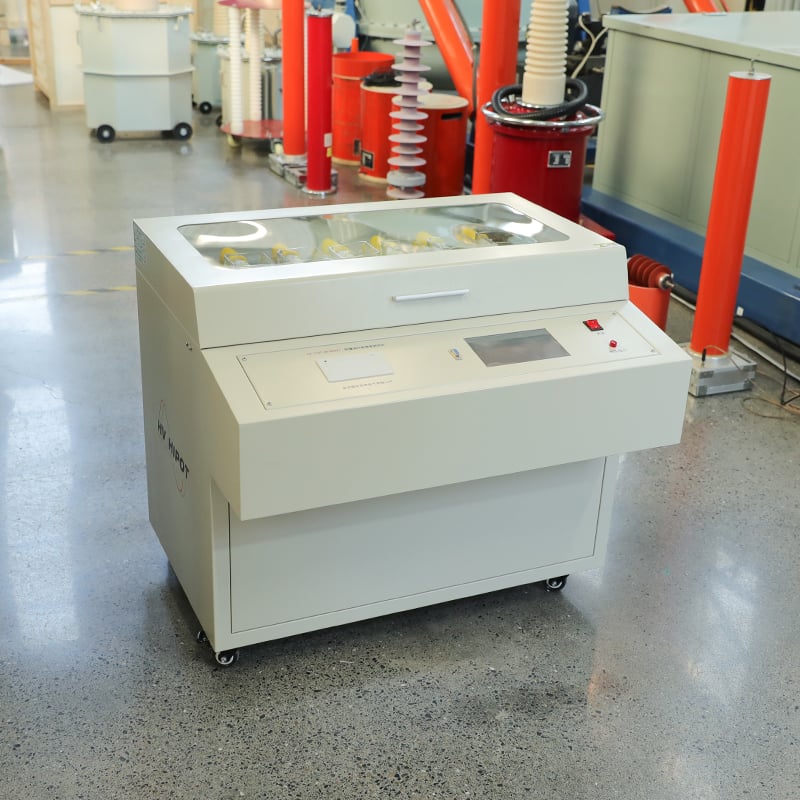

The GDOT-6B is a professional-grade, high-throughput 80kV fully automatic insulating oil dielectric strength testerexclusively designed for high-volume insulation performance evaluation of transformer oil, switch oil, capacitor oil and other insulating oils in power industry central laboratories, transformer factories and third-party testing institutions. It fully complies with GB/T 507-2002, DL/T 846.7-2016 and IEC 60156:1995 standards, adopting an innovative 6-cup integrated structure that enables simultaneous testing of six different samples, greatly improving test efficiency for high-volume applications.
The instrument features an advanced microprocessor control system that ensures fully automatic operation, completing the entire test process including voltage rise, stirring, standing, breakdown detection, voltage drop, average calculation and report printing without manual intervention. Its high-precision high-voltage sampling technology delivers 0.1kV voltage resolution and ±2% measurement accuracy, with a breakdown response time of less than 1ms, ensuring accurate and reliable test results.
Specifications
| Parameter | Specification |
|---|---|
| System Parameters | |
| Compliance Standard | GB/T 507-2002, DL/T 846.7-2016, IEC 60156:1995, ASTM D877-20 |
| Test Principle | Power frequency dielectric strength test (breakdown voltage method) |
| Test Cups | 6 independent test cups (2.5mm electrode gap) |
| Operation Mode | Fully automatic one-click test / Manual test |
| Display | 5-inch 800×480 color touch screen |
| Data Storage | 1000 groups test results |
| Data Export | USB 2.0, RS232 |
| Printer | High-speed thermal printer, 58mm paper width |
| Electrical Parameters | |
| Output Voltage Range | 0 ~ 80kV AC (50Hz) continuous adjustable |
| Voltage Resolution | 0.1kV |
| Measurement Accuracy | ±2% of reading |
| Waveform Distortion Rate | ≤3% |
| Breakdown Response Time | ≤1ms |
| Boost Rate | 0.5kV/s ~ 5kV/s adjustable (standard 2kV/s) |
| Maximum Output Current | 10mA |
| Transformer Capacity | 1.5kVA |
| Control Parameters | |
| Stirring Time | 0 ~ 99s adjustable |
| Standing Time | 0 ~ 999s adjustable |
| Test Times | 1 ~ 10 times adjustable (standard 6 times) |
| Boost Interval | 0 ~ 999s adjustable |
| Standard Programs | GB/T 507, IEC 60156, ASTM D877 |
| Custom Programs | Yes (user-defined parameters) |
| Safety Protection | |
| Over-voltage Protection | Yes (85kV automatic power off) |
| Over-current Protection | Yes (12mA automatic power off) |
| Door Interlock Protection | Yes (door open → high voltage cut off) |
| Automatic Discharge | Yes (after test completion) |
| Emergency Stop | Yes |
| Power Supply | |
| Input Power | AC 220V±10%, 50Hz±1Hz |
| Power Consumption | ≤200W (average), ≤1500W (peak) |
| Physical Parameters | |
| Dimensions | 650×470×410mm (L×W×H) |
| Weight | ~28kg (including all components) |
| Housing | Cold-rolled steel with electrostatic spraying |
| Protection Grade | IP40 |
| Operating Temperature | 0℃ ~ +45℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Humidity | ≤85% RH (non-condensing) |
| Altitude | ≤1500m (customizable for higher altitudes) |
Applications
Core Test Objects
- Power industry oils: Transformer oil, switch oil, capacitor oil, cable oil, turbine oil
- Oil-filled equipment: Power transformers, instrument transformers, capacitors, circuit breakers, reactors
Typical Usage Scenarios
- Power companies: Central laboratory routine preventive maintenance testing, high-volume insulating oil quality assessment
- Transformer manufacturers: Mass production factory quality control, type tests, batch inspection
- Oil treatment companies: Batch insulating oil regeneration quality inspection, vacuum oil filtration process control
- Third-party testing institutions: High-volume oil quality testing, performance assessment, quality arbitration services
- Power research institutes: Insulating oil performance research, new oil product development testing
Advantages
Compliance with Latest International Standards
Fully meets GB/T 507-2002 Chinese national standard, DL/T 846.7-2016 industry standard and IEC 60156 international standard → test results are recognized worldwide
Industry-Leading 6-Cup Simultaneous Test
Can test six samples simultaneously, improving test efficiency by 500% → ideal for high-volume laboratory testing, saves significant time and labor costs
High-Precision Measurement & Fast Response
0.1kV voltage resolution, ±2% measurement accuracy, ≤1ms breakdown response time → ensures accurate and reliable test results for all samples
Built-In Multi-Standard Test Programs
Pre-installed multiple international standard procedures, supports custom parameter settings → meets different test requirements and standards
Comprehensive Safety Protection System
Multiple safety protections including door interlock and automatic discharge → ensures operator safety during high-voltage testing
Comprehensive Data Management Function
1000 groups data storage, USB/RS232 export and automatic printing → simplifies data management and report generation for high-volume testing
FAQ
Q: How long does a typical test take for six samples?
A: A complete test for six samples including 6 breakdown tests each, stirring and standing takes approximately 15~20 minutes total. This is the same time as testing one sample on a single-cup tester, making GDOT-6B six times more efficient for high-volume testing.
Q: Can it test different types of oil samples simultaneously?
A: Yes. Each of the six test cups is independent. You can test different types of oil samples (e.g., transformer oil, switch oil, capacitor oil) or different batches of the same oil simultaneously. There is no cross-contamination between cups as each uses a dedicated electrode system.
Q: What safety measures are in place to protect operators?
A: GDOT-6B is equipped with a comprehensive safety protection system:
- Door interlock: Automatically cuts off high-voltage output when the test chamber door is opened
- Automatic discharge: Automatically discharges residual voltage after test completion
- Multiple electrical protections: Over-voltage, over-current, over-load and short-circuit protection
- Emergency stop button: One-button emergency stop for any abnormal situation
- Fully enclosed high-voltage chamber: Prevents accidental contact with high-voltage parts
