GDPV-IV 1500V PV IV Curve Tester | High-Power Solar Panel Tester
GDPV-IV Digital Intelligent Portable Photovoltaic String Tester with 15-1500V/0.5-30A Range, 45kW Max Power, Built-in Module Correction Database, IV Curve Tracer, for Utility-Scale PV Plant On-Site Performance Test & Fault Diagnosis.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description

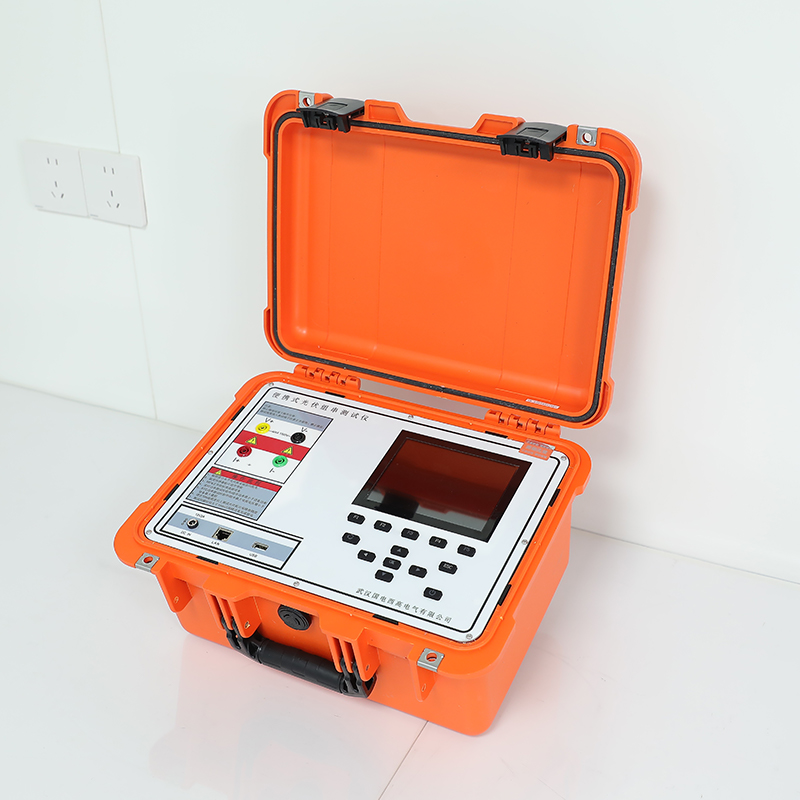

GDPV-IV is a professional high-power portable photovoltaic (PV) string tester designed for on-site performance testing, acceptance inspection and fault diagnosis of PV modules and strings in utility-scale ground-mounted PV plants, large distributed PV power plants and industrial PV installations. It strictly complies with IEC 62446-1:2016, GB/T 19939-2005 and GB/T 18210-2000 standards, adopting advanced high-speed digital signal processing technology and capacitive/resistive dual load architecture that enables fast and accurate IV curve tracing for high-power PV strings up to 45kW.
The instrument features 15V~1500V ultra-wide voltage range and 0.5A~30A ultra-wide current range, covering all mainstream 1500V PV modules and strings. Its built-in 200+ mainstream PV module correction model database automatically selects the appropriate temperature and irradiance coefficients for STC correction, ensuring accurate and reliable test results. The intelligent fault diagnosis algorithm automatically identifies common PV faults such as open circuit, short circuit, partial shading, module mismatch and bypass diode failure.
Specifications
| Parameter | Specification |
|---|---|
| Compliance Standards | IEC 62446-1:2016, GB/T 19939-2005, GB/T 18210-2000, T/CSEE 0160-2020 |
| Test Principle | Capacitive/resistive dual load IV curve tracing |
| Measurement Method | 4-wire Kelvin measurement |
| Voltage Measurement Range | 15V ~ 1500V DC |
| Voltage Resolution | 0.1V |
| Voltage Accuracy | ±0.5% reading ± 0.2V |
| Current Measurement Range | 0.5A ~ 30A DC |
| Current Resolution | 0.001A |
| Current Accuracy | ±0.5% reading ± 0.02A |
| Power Measurement Range | 0.05W ~ 45000W |
| Power Accuracy | ±0.5% reading ± 3W |
| Irradiance Measurement Range | 0 ~ 2000W/m² |
| Irradiance Accuracy | ±3.0% reading |
| Temperature Measurement Range | -30℃ ~ +100℃ |
| Temperature Accuracy | ±1℃ |
| IV Curve Data Points | 2048 points per curve |
| IV Curve Tracing Time | ≤20 seconds per string |
| STC Conversion Accuracy | ±5% |
| Built-in Module Database | 200+ mainstream PV module models, user-definable |
| Test Parameters | Voc, Isc, Pmax, Vmp, Imp, FF, η, Rs, bypass diode forward voltage |
| Fault Diagnosis | Open circuit, short circuit, partial shading, module mismatch, diode failure, hot spot |

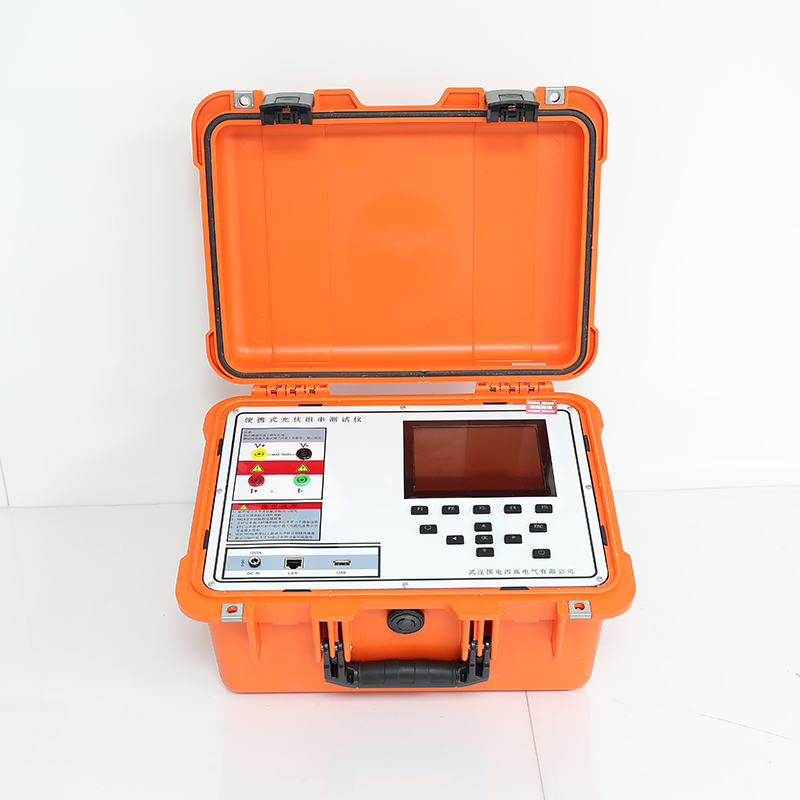

| Display | 5-inch 640×480 color capacitive touch screen |
| Operation Mode | Touch screen + physical keys dual operation |
| Language Support | Chinese / English bilingual |
| Data Storage | 2000 groups internal + USB U-disk + SD card external expansion |
| Communication Interface | USB 2.0, SD card slot |
| Power Supply | Built-in 14.8V/4400mAh replaceable lithium battery; AC 220V charging |
| Battery Life | ≥8 hours continuous working time |
| Charging Time | ≤4 hours |
| Isolation Voltage | ≥2000V DC (input-output) |
| Protection Functions | Over-voltage, over-current, short-circuit, reverse polarity, over-temperature |
| Operating Temperature | -10℃ ~ +50℃ |
| Humidity | 5% ~ 95% RH (non-condensing) |
| Dimensions (L×W×H) | 390×300×200mm |
| Weight | ~5.8kg (including battery) |

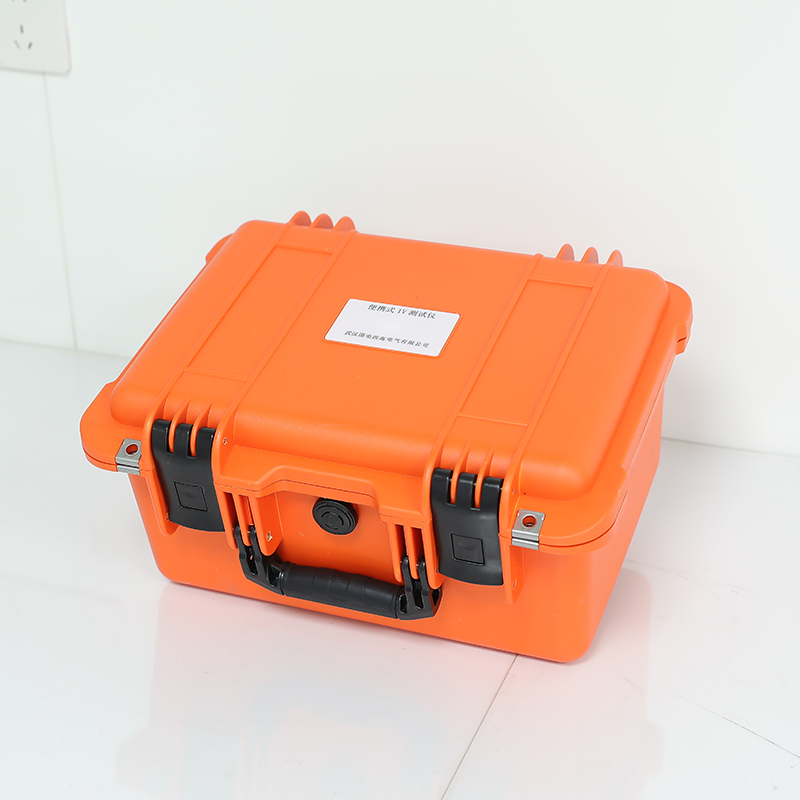

| Enclosure | Rugged aluminum alloy, IP40 |
Applications
Core Test Objects
- PV modules: Monocrystalline, polycrystalline, thin-film, bifacial PV modules (10W~450W)
- PV strings: Series-connected PV strings up to 1500V and 30A
- PV systems: Utility-scale ground-mounted PV plants, large distributed PV power plants, industrial PV installations
Typical Usage Scenarios
- PV EPC companies: PV system acceptance inspection, commissioning test and quality verification
- PV operation and maintenance companies: Routine patrol inspection, fault diagnosis and performance evaluation of large-scale PV plants
- PV module manufacturers: Factory quality control, batch inspection and on-site after-sales service
- Third-party testing institutions: PV system certification testing, safety assessment and energy efficiency evaluation
- Research institutes: PV module performance research and field test
Advantages
Compliance with Latest International Standards
Fully meets IEC 62446-1:2016, GB/T 19939-2005, GB/T 18210-2000 → test results are globally recognized
Industry-Leading 1500V/45kW High-Power Test
Covers all mainstream 1500V PV systems, one instrument tests both single modules and high-power strings → reduces equipment purchase cost by 50%
Built-in 200+ Module Correction Database
Automatically selects the appropriate correction coefficients, no manual parameter input required → improves test accuracy and efficiency
High-Resolution IV Curve Tracing
2048 data points per curve, captures subtle curve changes → accurately identifies early hidden faults
High-Voltage Isolation Safety Design
Input-output isolation voltage ≥2000V, ensures operator safety during high-voltage testing → eliminates electric shock hazards
Touch+Key Dual Operation
Meets different user operation habits, suitable for both young and experienced technicians → reduces training time and operation errors
Replaceable Battery & Dual Storage Expansion
Hot-swappable battery design, USB/SD card dual expansion → meets the needs of all-day on-site testing in remote areas
FAQ
Q: Can GDPV-IV test bifacial PV modules?
A: Yes. GDPV-IV can test both monofacial and bifacial PV modules. For bifacial modules, it is recommended to measure the irradiance on both front and back surfaces and input the albedo value for more accurate STC correction.
Q: How does the built-in module database work?
A: The instrument pre-stores the temperature coefficients, irradiance coefficients and nominal parameters of over 200 mainstream PV module models from major manufacturers. During testing, you can select the corresponding module model from the database, and the instrument will automatically use the correct coefficients for STC correction, eliminating the need for manual parameter input. You can also manually add new module models to the database.
Q: Can GDPV-IV test PV strings without disconnecting them from the inverter?
A: No. For safety reasons, PV strings must be disconnected from the inverter and other electrical equipment before testing. The instrument is equipped with comprehensive protection functions including reverse polarity protection and over-voltage protection to prevent damage caused by incorrect connection.
