GDSCP-1000H Disconnecting Switch Contact Pressure Tester
GDSCP-1000H Digital Intelligent Disconnecting Switch Contact Pressure Tester with High-Precision Strain Gauge Sensor, Simulated Contact Design, Built-in Rated Pressure Database, Dual Power Supply, for On-Site High-Voltage Switchgear Contact Force Measurement.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description

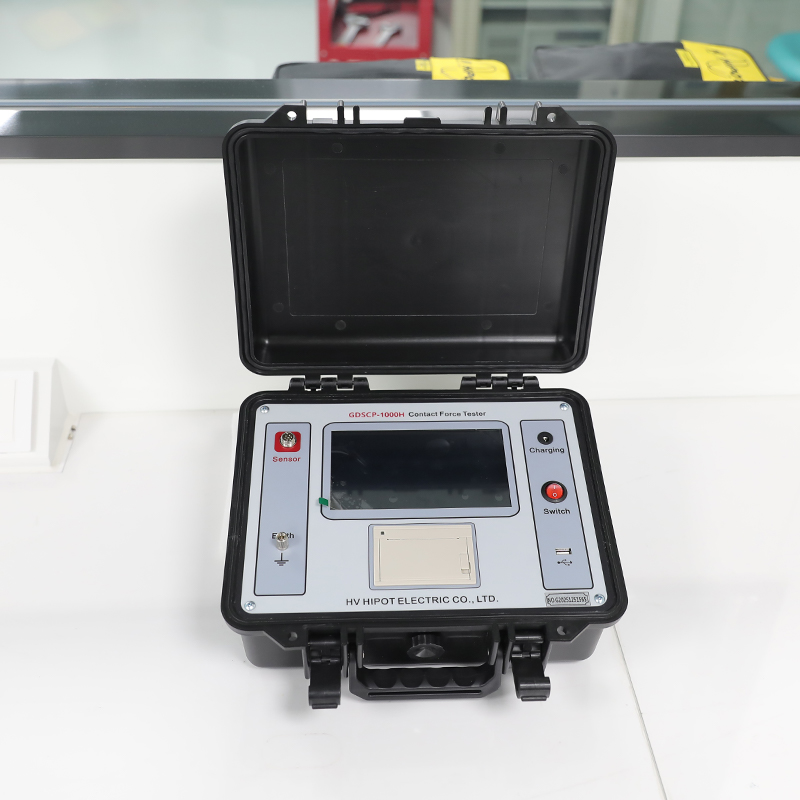

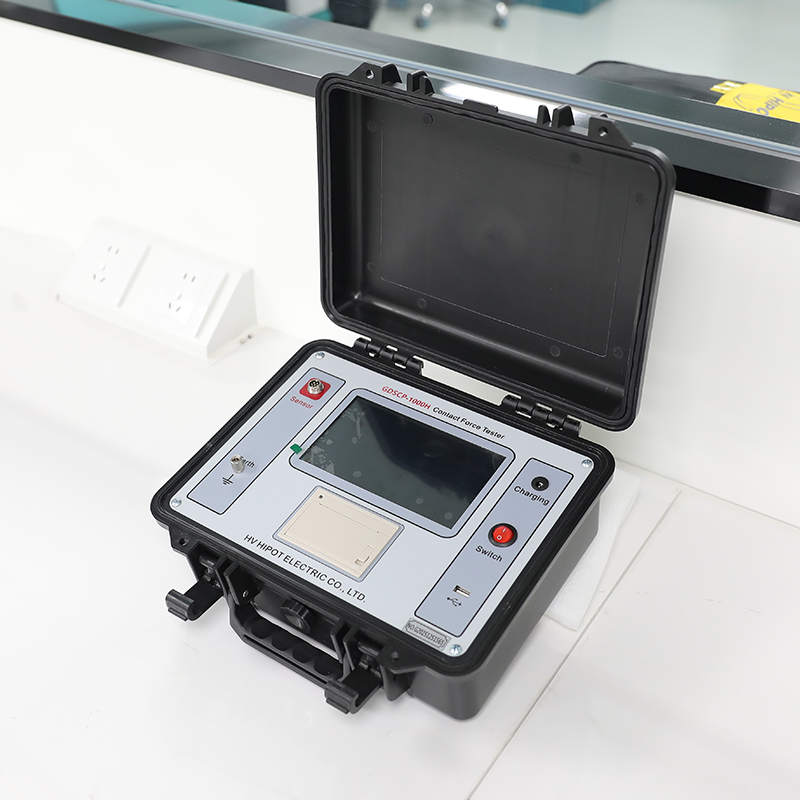

The GDSCP-1000H is a professional-grade, high-precision portable contact pressure testerexclusively designed for on-site quantitative detection of contact clamping force in disconnecting switches, circuit breakers, vacuum contactors and low-voltage drawer switches in power systems, electrical manufacturing and industrial enterprises. It fully complies with GB 1985-2014, DL/T 486-2010 and IEC 62271-102:2018 standards, adopting advanced strain gauge pressure sensing technology that eliminates the need to disassemble any switch components, enabling direct on-site testing without power outage or mechanical adjustment.
The instrument features an innovative simulated contact integrated sensor whose shape and dimensions exactly match the actual moving contact, accurately reproducing the real contact state between the moving and static contacts. This ensures that the measured pressure is consistent with the actual operating pressure, solving the long-standing problem of inaccurate measurement caused by traditional spring scale methods. The built-in 200+ rated pressure values for mainstream disconnecting switch models automatically compare test results with standard values and display whether they are qualified, eliminating the need for manual lookup of technical manuals.
Specifications
| Parameter | Specification |
|---|---|
| System Parameters | |
| Compliance Standard | GB 1985-2014, DL/T 486-2010, DL/T 846.3-2004, IEC 62271-102:2018 |
| Test Principle | High-precision strain gauge pressure sensing technology |
| Test Method | Non-disassembly on-site testing with simulated contact sensor |
| Operation Mode | One-click fully automatic test / Manual test |
| Display | 5-inch 800×480 color capacitive touch screen |
| Data Storage | 1000 groups test results with time stamps and equipment information |
| Data Export | USB 2.0 (Excel format) |
| Unit Switching | N, kgf, lbf |
| Measurement Performance | |
| Pressure Measurement Range | 0 ~ 1000N |
| Measurement Accuracy | ±(1% of reading + 1N) |
| Resolution | 0.1N |
| Repeatability | ≤1% RSD |
| Response Time | ≤10ms |
| Sensor Cable Length | 10m (customizable for longer lengths) |
| Adaptable Contact Opening | 5.5mm ~ 90mm (customizable for larger openings) |
| Built-in Rated Pressure Database | 200+ mainstream disconnecting switch models |
| Power Supply | |
| Power Supply Mode | AC220V±15%, 50Hz / Built-in lithium battery |
| Battery Capacity | 5200mAh |
| Battery Life | ≥6 hours continuous operation |
| Charging Time | ≤4 hours |
| Power Consumption | ≤20W (average) |
| Protection Functions | |
| Overload Protection | Yes (1200N automatic stop) |
| Overvoltage Protection | Yes |
| Short Circuit Protection | Yes |
| Low Battery Reminder | Yes |
| Physical Parameters | |
| Main Unit Dimensions | 360×260×150mm (L×W×H) |
| Sensor Dimensions | Customized according to contact type |
| Main Unit Weight | ~8kg (including all components) |
| Sensor Weight | ~0.5kg |
| Housing | Cold-rolled steel with electrostatic spraying |
| Protection Grade | IP54 (main unit), IP65 (sensor) |
| Operating Temperature | -20℃ ~ +40℃ |
| Storage Temperature | -30℃ ~ +60℃ |
| Humidity | ≤85% RH (non-condensing) |
| Altitude | ≤2000m (customizable for higher altitudes) |
Applications
Core Test Objects
- Disconnecting Switches: GW4, GW5, GW6, GW16, GW17, GW22, GW23 and other series of indoor and outdoor disconnecting switches
- Circuit Breakers: Vacuum circuit breakers, SF6 circuit breakers, low-voltage molded case circuit breakers
- Contactors: AC contactors, DC contactors, vacuum contactors
- Other Equipment: Low-voltage drawer switch contacts, busbar connectors, plug-in terminals
Typical Usage Scenarios
- Power companies: Substation preventive maintenance, disconnecting switch regular inspection, contact fault diagnosis
- Switchgear manufacturers: Factory quality control, batch production inspection, type test verification
- Power plants: Generator circuit breaker test, auxiliary equipment switch contact inspection
- Industrial enterprises: Internal electrical equipment maintenance, switchgear routine testing
- Third-party testing institutions: Electrical equipment certification testing, on-site calibration services
Advantages
Compliance with Latest International Standards
Fully meets GB 1985-2014 Chinese national standard, DL/T 486 industry standard and IEC 62271-102 international standard → test results are recognized by certification bodies worldwide
Industry-Leading No Disassembly Testing
Eliminates the need to disassemble any switch components, reducing test time by 90% and avoiding mechanical adjustment after reassembly → the only practical solution for on-site contact pressure testing
High-Precision & Accurate Measurement
Simulated contact design ensures true contact state reproduction, ±(1% reading+1N) measurement accuracy → solves the long-standing problem of inaccurate measurement caused by traditional spring scale methods
Comprehensive Built-in Rated Pressure Database
Pre-stored 200+ mainstream switch model rated pressure values, automatic qualified judgment → eliminates manual lookup errors and improves test efficiency
Safe High-Altitude Operation
10-meter long sensor cable allows safe ground operation for high-altitude switchgear → protects operators from falling hazards and improves work safety
Dual Power Supply & Long Battery Life
AC220V+built-in lithium battery dual power supply, ≥6 hours continuous working time → suitable for long-term field work without power supply
Comprehensive Data Management Function
1000 groups data storage, USB export and standardized report generation → facilitates digital management of test data and historical trend analysis
FAQ
Q: Why is contact pressure measurement so important for disconnecting switches?
A: Contact pressure is the core indicator that determines the conductive performance and mechanical life of disconnecting switches. Insufficient contact pressure will cause increased contact resistance, overheating during operation, spring annealing and contact erosion, forming a vicious cycle that may eventually lead to equipment burnout and power grid accidents. Excessive contact pressure will increase the operating torque, accelerate contact wear and reduce the mechanical life of the switch. Regular contact pressure testing is the most effective means to prevent these failures.
Q: What is the advantage of GDSCP-1000H compared to traditional spring scale measurement methods?
A: Traditional spring scale measurement methods have many disadvantages:
- Unsafe: Operators need to climb to high altitudes to operate, with falling hazards
- Inaccurate: Manual operation leads to large measurement errors, and it is impossible to measure scissors-type disconnecting switches
- Time-consuming: Requires disassembly and reassembly of switch components, taking 30-60 minutes per phase
- No data management: Manual recording of data, easy to make mistakes and difficult to trace
GDSCP-1000H solves all these problems:
- Safe: 10-meter long cable allows ground operation for high-altitude switchgear
- Accurate: Simulated contact design ensures true contact state reproduction, ±1% measurement accuracy
- Fast: No disassembly required, completes one phase test in less than 1 minute
- Intelligent: Automatic data recording, qualified judgment and report generation
Q: What types of switch contacts can GDSCP-1000H test?
A: GDSCP-1000H can test almost all types of switch contacts:
- Disconnecting switches: Knife-type, scissors-type, rotary-type and plug-in disconnecting switches
- Circuit breakers: Vacuum circuit breakers, SF6 circuit breakers and low-voltage circuit breakers
- Contactors: AC contactors, DC contactors and vacuum contactors
- Other contacts: Low-voltage drawer switch contacts, busbar connectors and plug-in terminals
We provide various types of sensors for different contact structures, and can customize sensors according to customer requirements.
Q: How to calibrate the instrument?
A: GDSCP-1000H is calibrated using standard weights or a standard force gauge with accuracy not lower than 0.5 class. The calibration procedure is simple and fast:
- Place the standard weight on the sensor or connect the standard force gauge in series
- Enter the calibration mode in the instrument menu
- Follow the prompts to complete the calibration process
- The instrument will automatically save the calibration coefficient
The instrument should be calibrated once every 12 months according to national metrology requirements.
Q: What is the allowable contact pressure range for disconnecting switches?
A: The allowable contact pressure range varies depending on the switch model, voltage level and current rating. Generally:
- 10kV disconnecting switches: 80N ~ 150N per contact
- 35kV disconnecting switches: 120N ~ 200N per contact
- 110kV disconnecting switches: 150N ~ 250N per contact
- 220kV disconnecting switches: 200N ~ 350N per contact
- 500kV disconnecting switches: 300N ~ 500N per contact
The exact rated pressure value should refer to the manufacturer's technical manual. GDSCP-1000H has built-in rated pressure values for 200+ mainstream switch models, which can be directly called for automatic qualified judgment.
