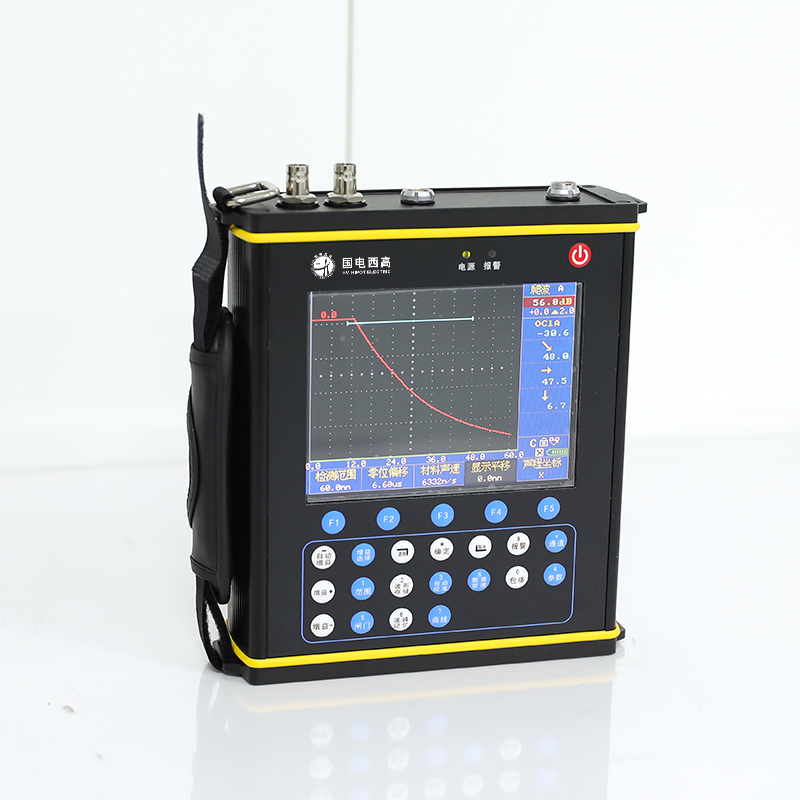

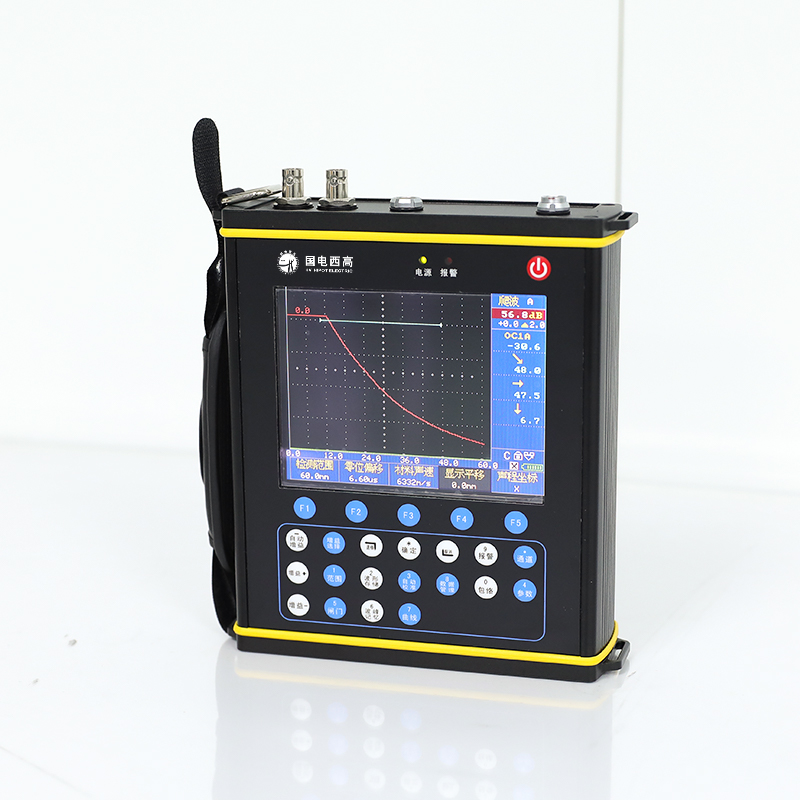

GDUD-PBI Portable Ultrasonic Flaw Detector for Power Equipment
The GDUD-PBI portable ultrasonic flaw detector is a high-precision non-destructive testing instrument customized for power industry equipment inspection. It accurately detects internal cracks, pores and welding defects on transformers, GIS shell, high-voltage pipelines and metal structural parts.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description
The GDUD-PBI Ultrasonic Flaw Detector is a professional, portable non-destructive testing (NDT) instrument tailored for power utilities. It uses advanced ultrasonic technology to detect internal cracks, voids, delaminations and material degradation in porcelain/composite insulators, HV bushings, CT/PT, transformer tanks and line hardware—without disassembly or shutdown.
Built on an embedded digital system and compliant with EN 12668-1, it integrates creep wave, angle beam and shear wave multi-mode testing. The high-sensitivity ultrasonic probe and auto-calibration ensure accurate coupling on curved surfaces. Rugged yet lightweight, it’s ideal for substation, transmission line and workshop NDT.
Specifications
| Parameter Category | Specification |
| Ultrasonic Performance | |
| Frequency Range | 0.5–20MHz |
| Gain | 110dB (0.1/2/6dB step) |
| Detection Range | 0–9999mm (steel longitudinal wave) |
| Sound Velocity | 0–9000m/s |
| Dynamic Range | ≥32dB |
| Vertical Linear Error | ≤3% |
| Horizontal Linear Error | ≤0.1% |
| Resolution | >42dB (5P14) |
| Sensitivity Margin | >62dB (200mm Φ2 flat-bottom hole) |
| Display & Storage | |
| Screen | TFT true-color LCD |
| Data Storage | 21 parameter sets, 1000 echoes |
| Mechanical & Power | |
| Dimensions | 210×168×50mm |
| Weight | ~1.8kg (with battery) |
| Power Supply | DC7.4V Li-ion (12h); AC220V |
| Environmental | |
| Operating Temp | -25℃ ~ +50℃ |
| Humidity | 20–95% RH (non-condensing) |
| Compliance | EN 12668-1, DL/T, IEC, CE |
Applications
Core Test Objects
· Porcelain/Composite Insulators: Post, string, pillar types (10–500kV)
· HV Bushings: Transformer, CT/PT, GIS bushings
· Power Equipment: Transformer tanks, CT/PT, arresters, line hardware
· Industrial Components: Pressure vessels, pipes, critical welds
Industry-Specific Usage
· Power Utilities: Substation equipment inspection, line patrol, aging assessment
· Grid Maintenance: Predictive maintenance, internal fault localization
· Manufacturing: Factory QA for insulators, bushings and HV components
· Renewable Plants: Wind/solar farm HV equipment NDT
Advantages
Find Hidden Internal Defects
Detects micro-cracks and deep flaws invisible to visual inspection—prevents sudden failure & outage.
No Shutdown, No Disassembly
Portable NDT works on-site without de-energizing—saves 80% inspection time vs. traditional methods.
Power-Optimized Algorithms
Pre-set insulator/bushing test modes—field technicians master in 10 minutes.
Lab-Grade Accuracy On-Site
Auto-calibration + high-sensitivity probes deliver repeatable, reliable results in harsh conditions.
Long-Term Cost Savings
Early flaw detection extends asset life—cuts replacement costs and outage losses significantly.
FAQ
Q: Can it test both porcelain and composite insulators?
A: Yes. Multi-wave modes support porcelain, composite and polymer insulators.
Q: Does it work on curved bushing surfaces?
A: Yes. Auto probe calibration matches curvature for perfect coupling.
Q: What’s the smallest crack it can detect?
A: Detects micro-cracks ≥0.1mm with high-sensitivity probes.
Q: Is training required for field use?
A: Minimal. Pre-set power modes + one-knob operation—easy to learn.
Q: What’s included in the standard package?

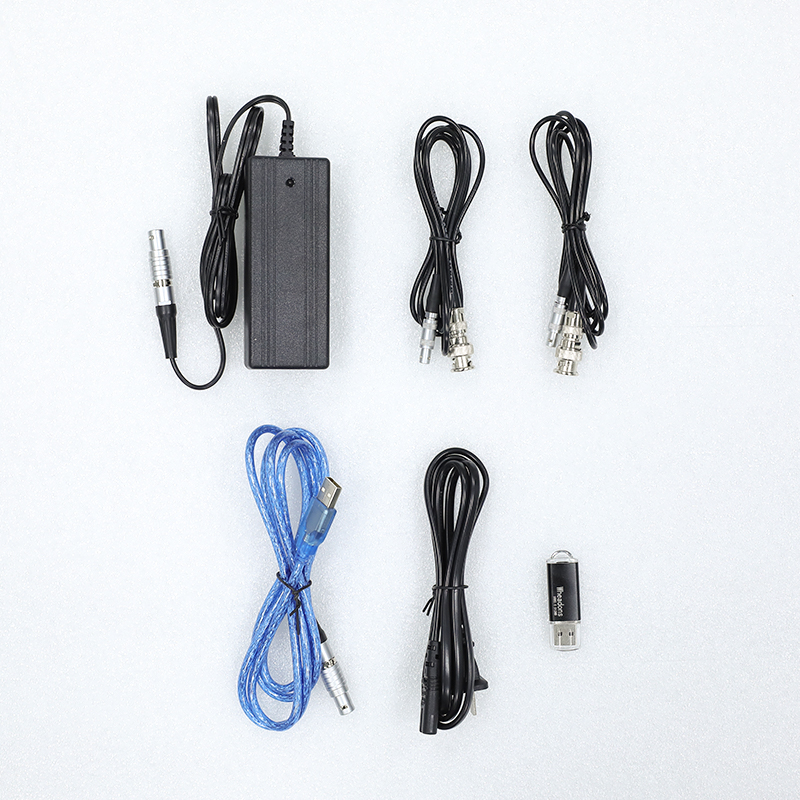

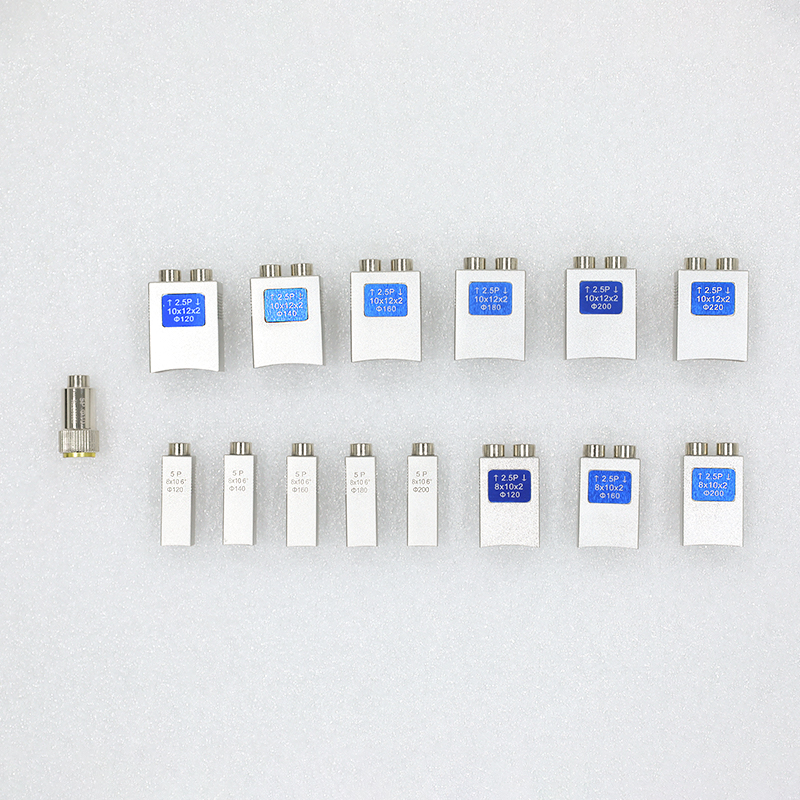

A: Main unit, ultrasonic probes (creep/angle/shear), calibration block, Li-ion battery, charger, HDMI/TF cables, user manual, rugged carry case.
