GSH-C-NYA-30/60 SF₆ Gas Recovery Machine | 30m³/h Recovery, 60m³/h Vacuum, 200L Built-in Tank
GSH-C-NYA-30/60 SF6 gas recovery machine: 30m³/h oil-free compression, 60m³/h vacuum, 200L built-in tank, 10.6" PLC touch screen, built-in dew point meter, EMERSON filter elements, regenerative dryer. Full functions of recovery, vacuum, purification, liquefaction & refilling. For GIS manufacturers & substations.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description

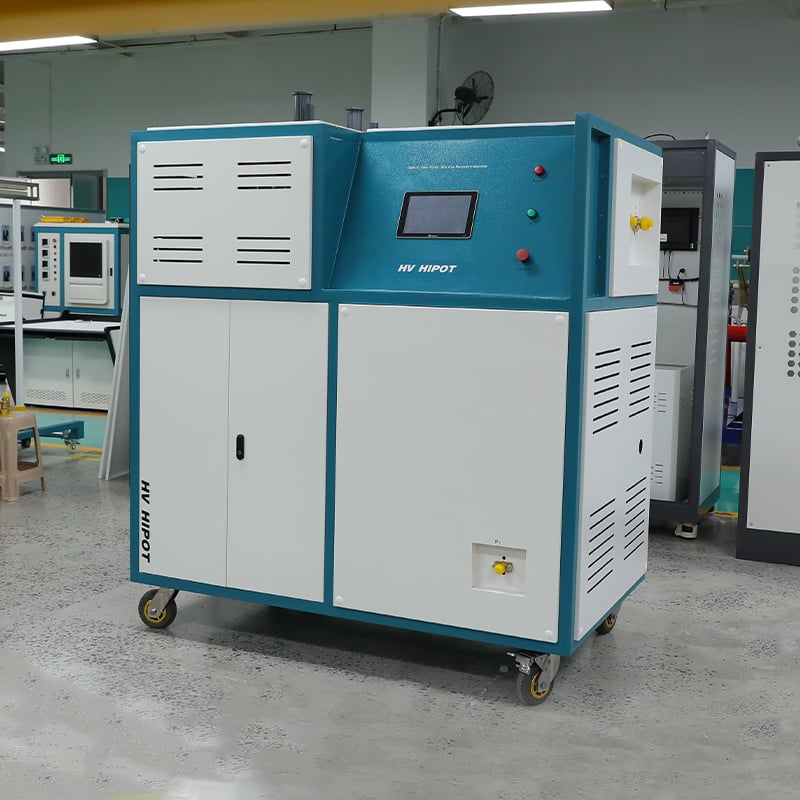

GSH-C-NYA-30/60 is a fully automatic multi-functional SF₆ gas handling machine designed for SF₆ switchgear manufacturers, power substations, research institutes and third-party testing institutions. It integrates SF₆ gas recovery, deep vacuumizing, multi-stage purification, compression liquefaction, pressure-regulated refilling and system self-vacuumizing into one unit, widely used for installation, commissioning, routine maintenance and decommissioning of SF₆ circuit breakers, ring main units and small & medium capacity GIS compartments.
It is equipped with an oil-free SF₆ dedicated compressor, a 60m³/h main vacuum pump and an auxiliary recovery vacuum pump, delivering 30m³/h recovery rate and 60m³/h vacuum pumping speed. The built-in 200L liquefied storage tank (5MPa design pressure) supports both liquid and gas storage modes, eliminating the need for external gas cylinders on site.
Specifications
| Parameter | Specification |
|---|---|
| System Functions | SF₆ recovery, vacuumizing, purification drying, compression liquefaction, pressure refilling, self-vacuumizing, metering, dew point detection |
| Recovery Performance | |
| Recovery Rate | 30 m³/h (at 50/60Hz, initial pressure 0.8MPa) |
| Compressor Type | Oil-free SF₆ special compressor, Model 30-2-50 |
| Max Output Pressure | 5 MPa |
| Recovery Efficiency | > 95% |
| Auxiliary Recovery Vacuum Pump | Model GWSPC600, 16 m³/h, 10Pa |
| Vacuum Performance | |
| Main Vacuum Pump Model | BSV-60 |
| Pumping Speed | 60 m³/h @ 50Hz; 65 m³/h @ 60Hz |
| System Ultimate Vacuum | ≤ 10 Pa |
| Limit Vacuum Degree | ≤ 0.5 Pa |
| Refilling Performance | |
| Refilling Rate | ≥ 20 m³/h (approx. 120kg/h SF₆) |
| Purification System | |
| Filter Elements | EMERSON brand |
| Purification Items | Oil mist filtration, particulate filtration, acidic substance & decomposition product removal, deep drying |
| Dew Point Measuring Range | -80℃ ~ -20℃ dp |
| Dew Point Accuracy | ± 2℃ |
| Dryer Regeneration Mode | Vacuum heating activation regeneration |
| Built-in Storage Tank | |
| Nominal Volume | 200 L |
| Max Design Pressure | 5 MPa |
| Storage Mode | Liquid state / Gaseous state |
| Control & Instrumentation | |
| Controller | PLC Model C60S0R-E |
| Display | 10.6" LCD touch screen, Model HMI-A10ProG, CN/EN bilingual |
| Vacuum Gauge | Model ZDZ-52P, 0 ~ 100000Pa |
| Differential Pressure Alarm | 2 units, 0 ~ 1MPa |
| Valves | SF₆ special electric ball valve JST-10, DN16 |
| Safety Protection | Over-pressure, over-current, over-temperature, low oil level alarm, emergency stop, safety valve |
| Noise Level | ≤ 75 dB (normal operation) |
| Input Power Supply | AC 380V ± 10%, 50Hz, three-phase |
| Total Power | < 10 kW |
| Operating Temperature | -10℃ ~ +40℃ |
| Ambient Humidity | ≤ 85% RH (non-condensing) |
| Net Weight | Approx. 600 kg |
| Structure Form | Mobile cabinet type with casters |
Applications
Core Application Objects
- Medium & high voltage SF₆ circuit breakers, load switchgears and ring main units
- Small & medium capacity GIS compartments and gas-insulated busbars
- SF₆ instrument transformers (CT/PT)
- SF₆-insulated combined electrical apparatus
Typical Users & Scenarios
- SF₆ switchgear & GIS manufacturers: workshop assembly test, finished product gas filling, factory quality inspection
- Power substations & power supply bureaus: on-site routine maintenance, fault repair and gas replacement
- Power research institutes and testing laboratories: SF₆ gas quality test and equipment performance verification
- Power engineering EPC companies: equipment installation, commissioning and project handover acceptance
- Industrial & mining enterprises: internal SF₆ equipment periodic maintenance
Advantages
All-Round 8-in-1 Functional Integration
One machine covers recovery, vacuum, purification, liquefaction, refilling, metering, self-cleaning and drying → no need for multiple separate devices, reduces on-site equipment quantity
Premium Core Components & Stable Performance
Oil-free compressor + EMERSON filter elements + precision vacuum gauge + dew point meter → reliable gas quality and long service life
Regenerative Dryer Cost-Saving Design
Vacuum heating activation regeneration → filter elements can be reused, greatly reduces daily consumable cost
10.6" Large Screen Intelligent Control
Large touch screen + full automatic mode → simple operation, reduces operator work intensity, no long-term manual monitoring
Built-in Dew Point Meter Real-Time Monitoring
No need for additional testing instruments → directly verify gas quality during recovery and refilling, improves work efficiency
Mobile Compact Design
Integrated 200L storage tank, caster-mounted structure → easy to move, suitable for both workshop fixed use and on-site mobile operation
FAQ
Q: Why is the vacuum pump noisy when starting in winter?
A: In low-temperature winter environments, vacuum pump oil will condense and become viscous. At the moment of startup, the lubrication effect is temporarily insufficient, resulting in dry friction noise. After running for a period of time, the oil temperature rises and the lubrication returns to normal, and the noise will gradually decrease to the normal level. This is a normal phenomenon and will not damage the pump or affect its service life. It is recommended to preheat the equipment properly before use in low temperature environment.
Q: Can the drying filter be reused?
A: Yes. The equipment is equipped with a regenerative drying filter, which adopts vacuum heating activation regeneration mode. After a period of use, the water absorption performance decreases, and the regeneration function can be started to restore the drying performance, which greatly extends the service life of the filter element and reduces the daily consumable cost.
Q: How much SF₆ gas can the 200L built-in tank hold?
A: The 200L storage tank supports both liquid and gas storage. Under normal liquefied storage state, it can hold about 180–200kg of liquefied SF₆ gas, which fully meets the one-time recovery demand of conventional medium-voltage switchgear and small & medium capacity GIS compartments.
Q: Can the recovered gas be directly refilled into equipment?
A: Yes. The multi-stage purification system with EMERSON filter elements can effectively remove oil mist, moisture, dust and decomposition products. After one recovery cycle, the gas quality indicators including moisture content and purity meet the requirements of IEC 60480 standard for reused gas, and can be directly refilled into electrical equipment. The built-in dew point meter can monitor the moisture content in real time to confirm the gas quality.
