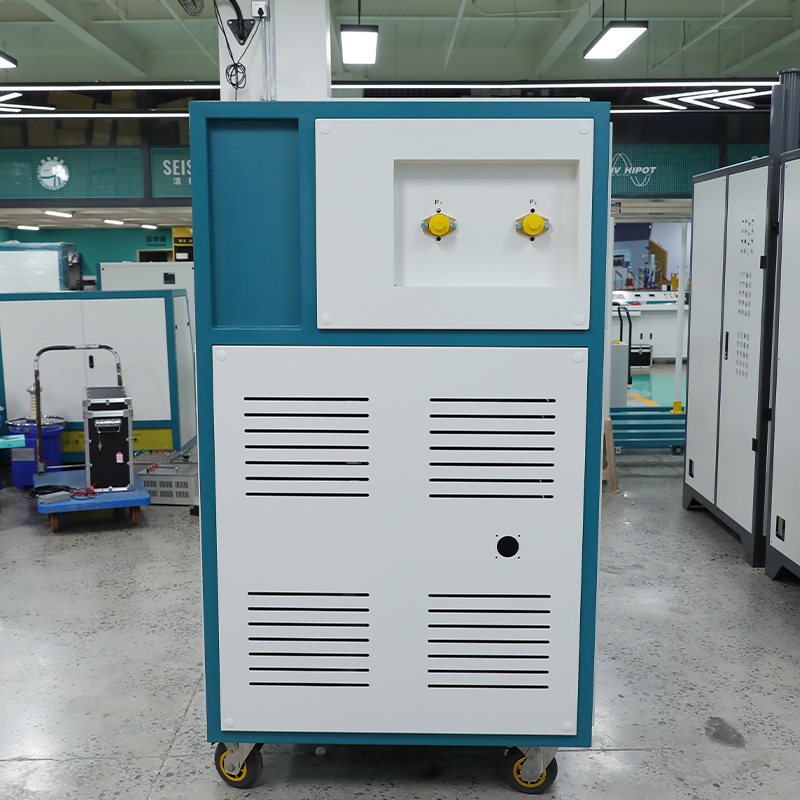

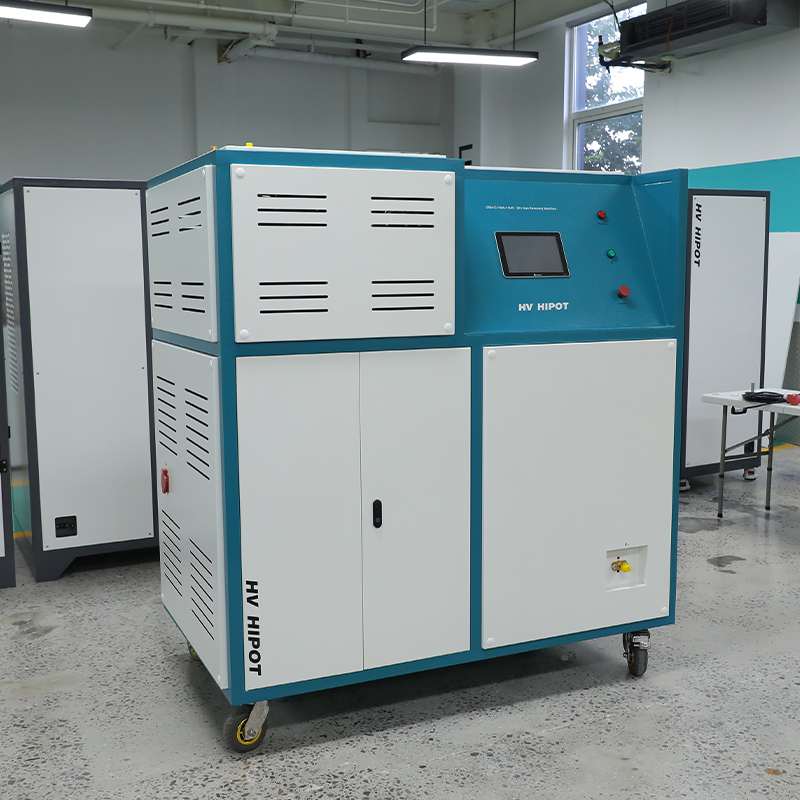

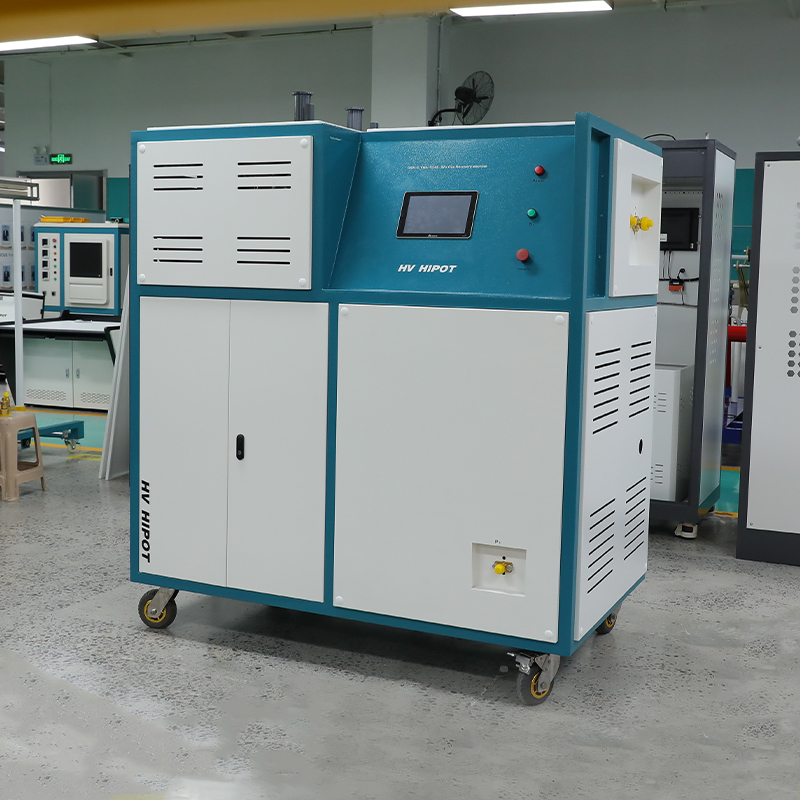

GSH-C-YNA-11/45 Mobile SF₆ Gas Recovery Machine with 300L Tank
GSH-C-YNA-11/45 Intelligent SF₆ Gas Recovery, Purification, Vacuumizing and Refilling Integrated Machine with 300L Built-in Liquefied Storage Tank, for On-Site Maintenance of Medium-Voltage SF₆ Switchgear, Circuit Breakers and Instrument Transformers.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description
GSH-C-YNA-11/45 is a compact cost-effective SF₆ gas handling machine designed for power distribution teams, switchgear after-sales service, industrial enterprises and third-party testing institutions. It is dedicated to SF₆ gas recovery, vacuumizing, purification, liquefied storage and pressure-regulated refilling during installation, routine maintenance and decommissioning of 10kV ~ 110kV SF₆ circuit breakers, ring main units, instrument transformers and small-capacity GIS compartments.
It adopts an oil-free SF₆ dedicated compressor and a two-stage rotary vane vacuum pump, delivering 11m³/h recovery rate and 45m³/h vacuum pumping speed. The built-in 300L liquefied storage tank with pressure vessel certification eliminates the need for external gas cylinders and improves on-site operation convenience. The multi-stage deep purification system effectively removes moisture, decomposition products, oil residues and dust particles, ensuring recovered gas meets IEC 60480 reuse standards.
Specifications
| Parameter | Specification |
|---|---|
| System Functions | SF₆ recovery, vacuumizing, purification drying, liquefied storage, pressure-regulated refilling |
| Recovery Performance | |
| Recovery Rate | 11 m³/h (at initial pressure 0.8MPa) |
| Final Recovery Pressure | ≤ 50 kPa (absolute) |
| Compressor Type | Oil-free SF₆ special compressor |
| Vacuum Performance | |
| Vacuum Pumping Speed | 45 m³/h |
| Ultimate Vacuum | ≤ 10 Pa |
| Vacuum Pump Type | Two-stage rotary vane vacuum pump |
| Built-in Storage Tank | 300L nominal volume, ~280kg liquid storage capacity, pressure vessel certified |
| Tank Design Pressure | 5.0 MPa |
| Purification Performance | |
| Particulate Filtration | ≤ 0.1μm, 99.99% efficiency |
| Moisture Content After Purification | ≤ 40 ppmV |
| Oil Content After Purification | ≤ 10 ppmW |
| SF₆ Purity After Recovery | ≥ 98% by volume |
| Control Mode | PLC + 10" touch screen, fully automatic / manual dual mode |
| Safety Protection | Over-pressure, over-current, over-temperature, low oil level alarm, emergency stop, safety valve |
| System Leakage Rate | ≤ 0.5% per year |
| Cooling Mode | Air-cooled, no external water source required |
| Input Power Supply | AC 380V ± 10%, 50Hz, three-phase (220V customizable) |
| Operating Temperature | -10℃ ~ +50℃ |
| Ambient Humidity | ≤ 85% RH (non-condensing) |
| Structure Form | Mobile cabinet type with brake casters and traction handle |
Applications
Core Application Objects
- 10kV ~ 110kV SF₆ circuit breakers and load switchgears
- SF₆ ring main units, cabinet-type switchgear
- SF₆ instrument transformers (CT/PT)
- Small-capacity GIS compartments and gas-insulated bus sections
Typical Usage Scenarios
- Power distribution operation & maintenance: substation MV switchgear routine maintenance, fault repair and gas replacement
- Switchgear manufacturers: after-sales on-site service, factory assembly test and ex-factory quality inspection
- Industrial & mining enterprises: internal SF₆ equipment periodic maintenance and fault troubleshooting
- Third-party testing institutions: SF₆ gas quality testing and equipment insulation diagnosis
- Decommissioning of old equipment: SF₆ gas recovery and treatment before equipment scrapping
