Description
The MRT pro is a high-end, microprocessor-controlled 10kV programmable insulation resistance tester designed for precision diagnostic insulation testing on critical high-voltage assets. It features 50V–10kV continuously adjustable test voltage (10V step), measures up to 20TΩ, and integrates IR, DAR, PI, DD, SV full diagnostic modes with real-time V/I/R/temp curves。
Equipped with a 5-inch true-color touchscreen + rotary knob (triple control: touch/key/knob), Bluetooth 5.0 + USB 2.0, 14.8V Li-ion battery (12hrs runtime), and CAT IV 600V safety rating, it delivers laboratory-grade accuracy and industrial-grade durability in harsh EMI environments. Ideal for transformers, generators, HV cables, motors, switchgear, and bushings in power utilities, industrial plants, and service teams.
Specifications
| Parameter | Specification |
| Test Voltage Range | 50V–10kV (±5%)；10V minimal step；preset 250V/500V/1kV/2.5kV/5kV/10kV |
| Insulation Resistance | 0–20TΩ；0.01MΩ–10GΩ resolution |
| ShortCircuit Current | 1–6mA adjustable (1mA step) |
| Accuracy | ±(5% + 10V)；voltage ripple <3% |
| Capacitance Range | 5nF–50μF |
| Diagnostic Modes | IR, DAR, PI, DD, SV, RAMP (optional) |
| Display | 5inch truecolor LCD (V/I/R/C/T/RH/Time) |
| Control | Touchscreen + rotary knob + physical keys |
| Data Storage | 999 records；time/date/temp/RH stamp |
| Communication | Bluetooth 5.0, USB 2.0 |
| Power Supply | 14.8V Liion battery；12hrs continuous operation |
| Charging | DC 15V/2A；3hrs full charge |
| Safety Rating | IEC 610101 CAT IV 600V；Double insulation |
| Protection | OverV, OverI, Shortcircuit, Arc detection, HV discharge |
| Dimensions (mm) | 330×260×140 |
| Weight | ~4.2kg (main unit) |
| Operating Temp | 10°C ~ +50°C |
| Compliance | DL/T 845.1, IEC 610101, IEC 613261, CE |
Applications
Core Test Objects
· Power transformers: Winding IR/DAR/PI/DD/SV, 10kV testing
· HV cables: XLPE/PVC cables, 5kV/10kV insulation, capacitance/length estimation
· Motors/generators: Stator/rotor winding insulation, aging assessment
· Switchgear: Bushings, CT/PT, circuit breakers, secondary circuits
· Capacitors/reactors: Insulation resistance, leakage current, capacitance
· Substation equipment: Control panels, relay coils, surge arresters
Typical Usage Scenarios
· Preventive maintenance: Scheduled insulation testing of HV assets
· Commissioning: New transformer/cable/motor insulation verification
· Fault diagnosis: Moisture/aging/defect localization via curves & diagnostics
· EMI environments: Substations, power plants, industrial sites
· Data logging: Longterm trend analysis & report generation
Advantages
10kV Programmable (50V–10kV, 10V Step)
Flexible voltage setting → adapts to any non-standard test requirement
Full 5-in-1 Diagnostics (IR/DAR/PI/DD/SV)
One-button comprehensive analysis → early warning of aging/moisture/defects
Touchscreen+Knob + Real-Time Curves
Intuitive operation + visual insights → faster, more accurate on-site decisions
Bluetooth/USB + PC Software
Wireless data & automated reports → saves time, reduces human error
Li-ion 12hrs + CAT IV 600V
All-day field work + highest safety standard → reliable & safe in harsh environments
FAQ
Q: What’s the difference between MRT pro and MRT-3127?
A: MRT pro adds 50V–10kV programmable voltage (10V step), DD/SV modes, touchscreen+knob, and 12hrs Li-ion; MRT-3127 is fixed-preset voltages.
Q: Can it estimate cable length?
A: Yes. Input capacitance per km;auto-calculates cable length from measured Cx.
Q: Does it work with gloves?

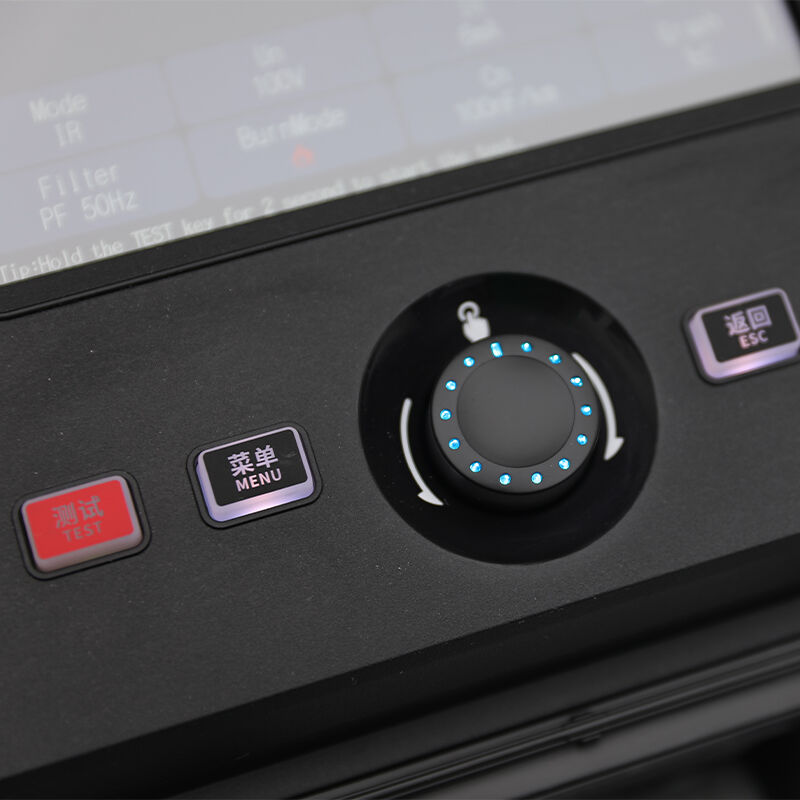

A: Yes. Rotary knob + physical keys designed for gloved-hand operation.
Q: How long is the battery life?
A: 12 hours continuous testing;3hrs full charge.
Q: What’s included in the standard package?

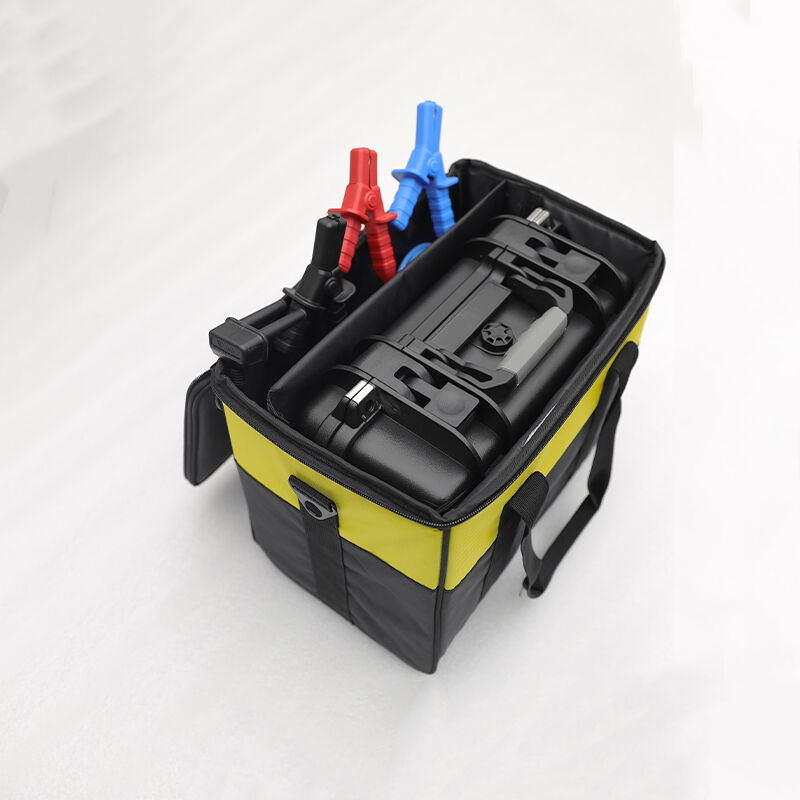

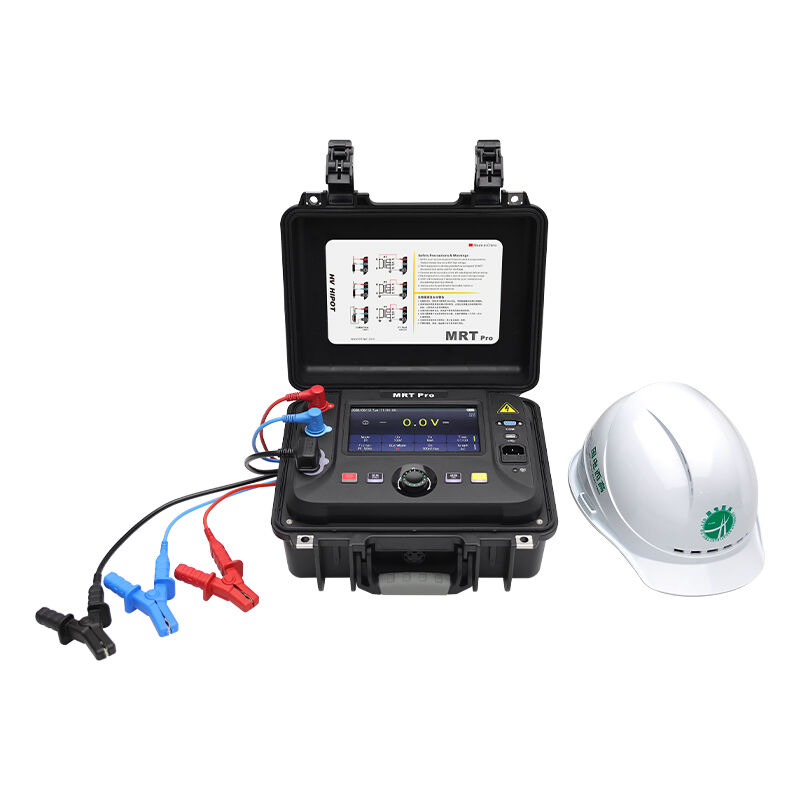

A: Main unit, Li-ion battery, charger, HV test leads, shielded cable, ground cable, carry case, user manual, PC software.
