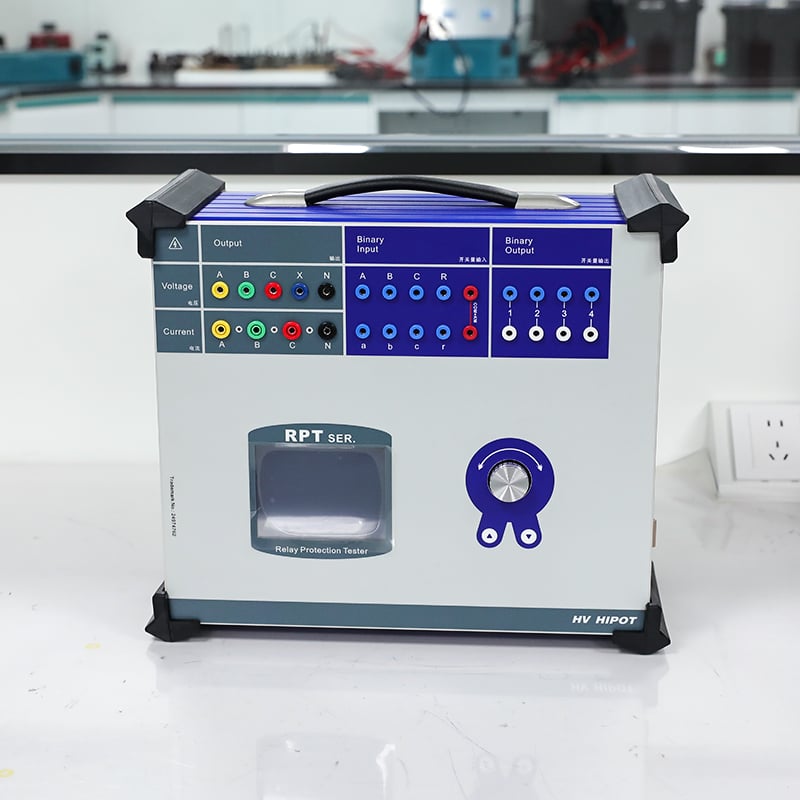

RPT-802 Digital Intelligent Microcomputer Relay Protection Tester
RPT-802 Digital Intelligent Microcomputer Relay Protection Tester with Industrial PC+DSP+FPGA Triple-Core Architecture, 4-Phase Voltage + 3-Phase Current Synchronous Output, 0.2% Accuracy, Built-in Lithium Battery, for 110kV and Below Substation Relay Protection Commissioning and Testing.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description
The RPT-802 is a cost-effective, field-optimized three-phase microcomputer relay protection testerexclusively designed for commissioning, testing and maintenance of relay protection devices and safety automatic devices in 110kV and below substations. It fully complies with DL/T 624-2023, DL/T 995-2016 and IEC 60255-1:2019 standards, adopting an advanced industrial PC+DSP+FPGA triple-core architecture to achieve high-precision, high-stability and high-speed signal output.
The instrument features a 4-phase voltage + 3-phase current synchronous output design with 0.2% output accuracy, supporting a wide frequency range of 20~1000Hz and 1~20 harmonic superposition. It can accurately simulate various power system fault conditions such as phase-to-phase short circuit, ground fault, power oscillation and CT saturation. With over 100 built-in professional test modules, it supports comprehensive testing of all types of relay protection devices including line protection, transformer differential protection, distance protection, auto-transfer switch (ATS) devices, reclosing devices and frequency protection.
Specifications
| Parameter | Specification |
|---|---|
| System Parameters | |
| Compliance Standard | DL/T 624-2023, DL/T 995-2016, IEC 60255-1:2019, GB/T 14598.1-2010 |
| Control Architecture | Industrial PC + DSP + FPGA triple-core |
| Operating System | Embedded Windows system |
| Display | 8.4-inch 800×600 TFT touch screen |

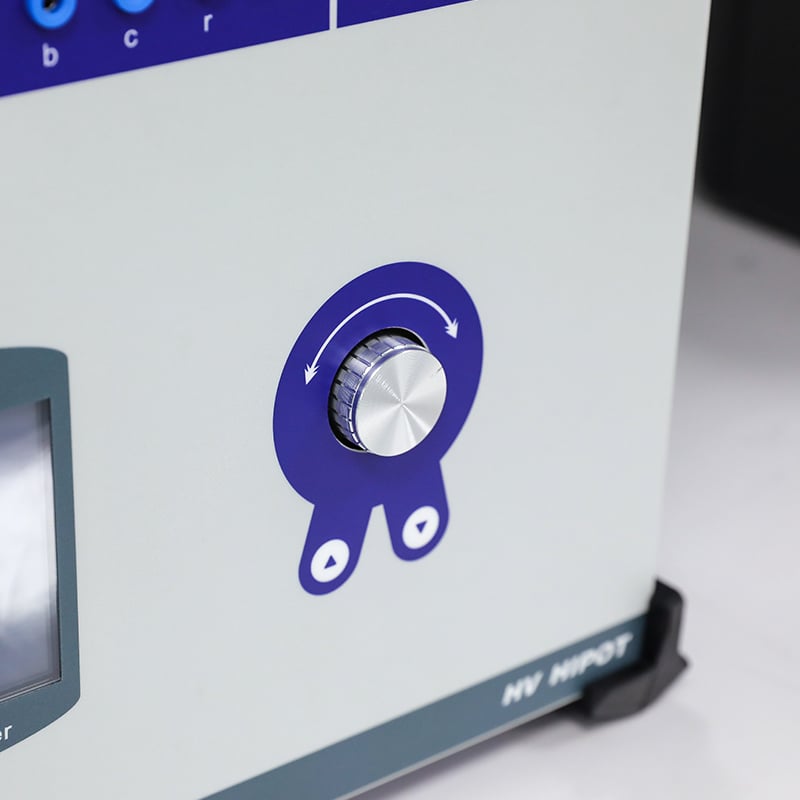

| Operation Modes | Touch screen + physical buttons |
| AC Voltage Output | |

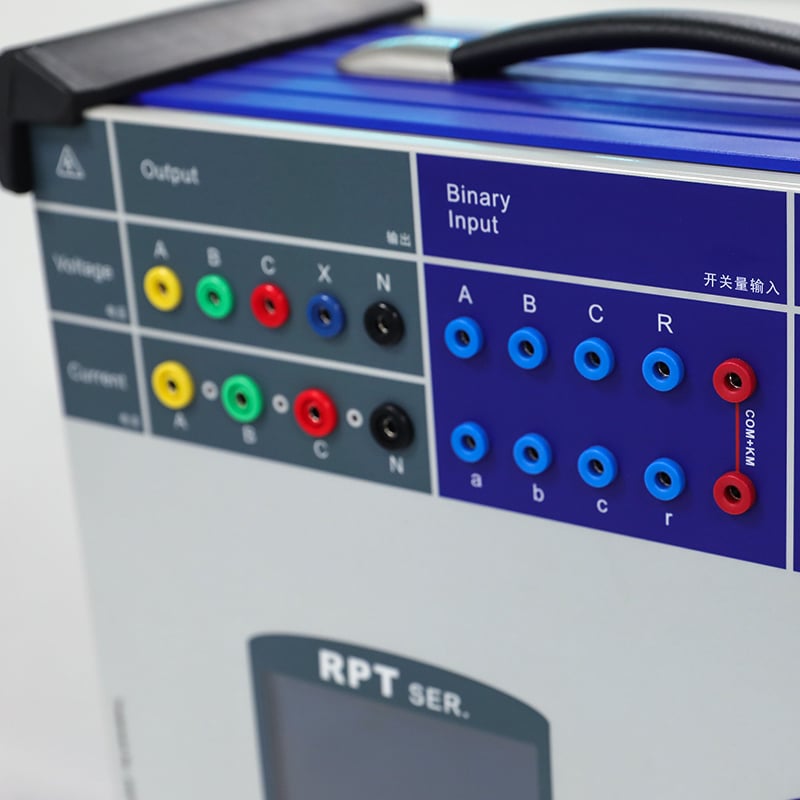

| Number of Phases | 4 independent phases (UA, UB, UC, UN) |
| Output Range | 0 ~ 125V/phase, 0 ~ 240V line voltage |
| Output Accuracy | ±0.2% |
| Output Power | 80VA/phase |
| Frequency Range | 20Hz ~ 1000Hz |
| Frequency Accuracy | ±0.001Hz |
| Phase Range | 0° ~ 360° |
| Phase Accuracy | ±0.1° |
| AC Current Output | |
| Number of Phases | 3 independent phases (IA, IB, IC) |
| Output Range | 0 ~ 40A/phase, 0 ~ 120A (three-phase parallel) |
| Output Accuracy | ±0.2% |
| Output Power | 420VA/phase |
| Frequency Range | 20Hz ~ 1000Hz |
| DC Output | |
| DC Voltage | 0 ~ ±160V |
| DC Current | 0 ~ ±10A |
| Accuracy | ±0.5% |
| Harmonic Output | |
| Harmonic Times | 1 ~ 20 times |
| Amplitude Range | 0 ~ 20% of fundamental |
| Phase Range | 0° ~ 360° |
| Switch 量 Interface | |
| Switch Input | 8 pairs, supports empty contacts and potential contacts |
| Switch Output | 4 pairs, DC 250V/0.5A, AC 250V/0.5A |
| Time Measurement | 0.1ms ~ 9999s, accuracy <0.1ms |
| Power Supply | |
| External Power | AC 220V±10%, 50Hz |
| Built-in Battery | Lithium-ion battery, 11.1V/10000mAh |
| Battery Life | ≥6 hours continuous operation |
| Charging Time | ~4 hours (full charge) |
| Physical Parameters | |
| Dimensions | 360×280×160mm (L×W×H) |
| Weight | ~12kg (including battery) |
| Housing | Rugged aluminum alloy chassis |
| Protection Grade | IP40 |
| Operating Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Humidity | ≤90% RH (non-condensing) |
Applications
Core Test Objects
- Relay protection devices: Microcomputer line protection, transformer protection, generator protection, bus protection
- Safety automatic devices: Auto-transfer switch (ATS) devices, reclosing devices, load shedding devices
- Traditional relays: Current relays, voltage relays, time relays, intermediate relays
- Other devices: Measurement and control devices, smart terminals, merging units
Typical Usage Scenarios
- Power companies: Substation acceptance tests, daily maintenance, fault troubleshooting
- Power engineering companies: Substation construction commissioning, equipment installation and debugging
- Electrical equipment manufacturers: Factory quality control, type tests, after-sales service
- Third-party testing institutions: Electrical equipment performance testing, quality arbitration
- Industrial enterprises: Internal power system protection device testing and maintenance
Advantages
Compliance with Latest International Standards
Fully meets DL/T 624-2023 Chinese power industry standard and IEC 60255-1:2019 international standard → test results are recognized by power systems worldwide
Industry-Leading 0.2% Output Accuracy
High-precision DAC and linear power amplifier design, ensuring accurate and stable signal output → guarantees the reliability of protection device test results
Unique 4U3I Output Configuration
Supports four-phase voltage output, can simulate neutral point voltage, ideal for testing zero-sequence protection and transformer differential protection → more flexible than traditional 3U3I testers
120A High-Current Output Capability
Three-phase current parallel output up to 120A, meets the test requirements of high-current protection devices → no need for additional current amplifiers
Over 100 Built-in Professional Test Modules
Covers all types of relay protection tests, no need for manual programming → greatly improves test efficiency and reduces operator skill requirements
Built-in Long-Lasting Battery
6 hours of continuous operation without external power supply → ideal for on-site testing in remote substations and construction sites
Ultra-Light Portable Design
Total weight only 12kg, compact size, easy to carry and transport → suitable for single-person operation and mobile testing
Comprehensive Safety Protection System
Multiple protection functions ensure the safety of operators and the tested equipment → avoids damage caused by misoperation
FAQ
Q: Can it test transformer differential protection?
A: Yes. RPT-802 has a dedicated transformer differential protection test module that supports two-winding and three-winding transformer differential protection tests, including ratio braking characteristic test, harmonic restraint test and differential quick-break test. The 4-phase voltage output can accurately simulate the transformer's phase shift and voltage transformation ratio.
Q: Can it output 120A current?
A: Yes. By connecting the three current phases in parallel, RPT-802 can output up to 120A continuous current, which meets the test requirements of high-current protection devices such as bus differential protection and generator differential protection.
Q: Does it support fault playback function?
A: Yes. RPT-802 supports importing COMTRADE format fault recording files and playing back the fault process, which is very useful for analyzing protection device action behavior during actual faults and verifying protection logic.
