GD6100 Insulating Oil Dielectric Loss Tester
GD6100 Digital Intelligent Integrated Insulating Oil Dielectric Loss and DC Resistivity Tester with High-Frequency Induction Heating Furnace, SF6 Standard Capacitor, One-Click Full Process Test, for Power Transformer Insulating Oil Quality Assessment.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description

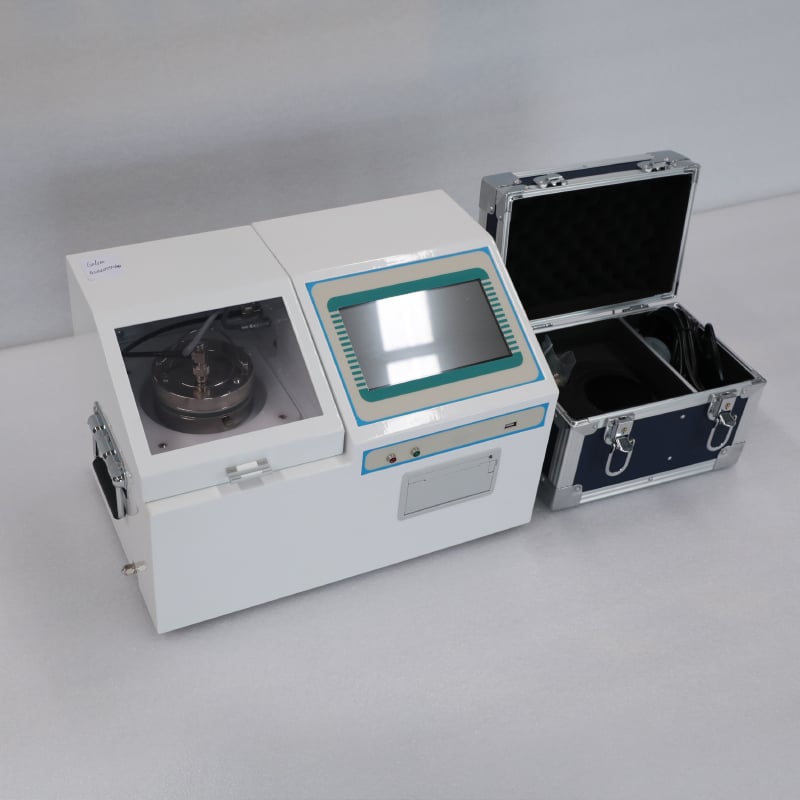

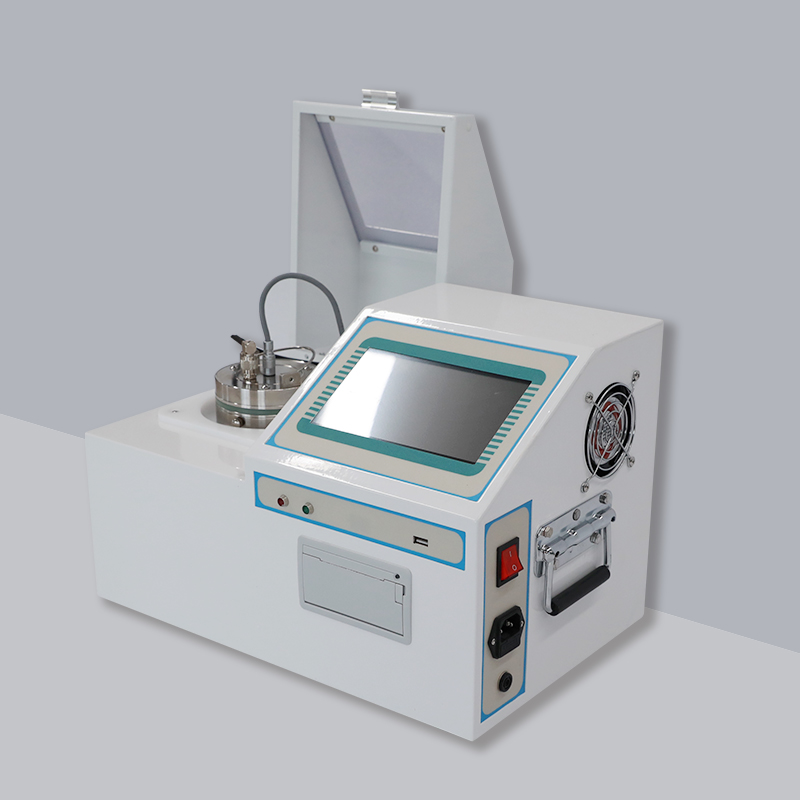

The GD6100 is a professional-grade, classic integrated automatic oil dielectric loss and resistivity testerexclusively designed for routine quality assessment of insulating oil used in power transformers, instrument transformers, capacitors and other oil-filled electrical equipment. It fully complies with GB/T 5654-2007, IEC 60247:2004 and DL/T 474.3-2018 standards, adopting an all-in-one design that integrates all necessary components into a single portable chassis.
The instrument features advanced high-frequency induction heating technology that provides uniform and fast heating, reaching 90℃ from room temperature in less than 20 minutes. Its built-in SF6 gas-filled standard capacitor ensures stable and accurate measurement results unaffected by ambient temperature and humidity. With one-click fully automatic operation, it completes the entire test process including temperature rise, constant temperature control, dielectric loss measurement and DC resistivity measurement without manual intervention.
Specifications
| Parameter | Specification |
|---|---|
| System Parameters | |
| Compliance Standard | GB/T 5654-2007, IEC 60247:2004, DL/T 474.3-2018, ASTM D924 |
| Integrated Components | High-frequency induction heating furnace, three-electrode oil cup, digital test bridge, SF6 standard capacitor |
| Operation Modes | Fully automatic mode, manual mode |
| Display | Large LCD screen with backlight |
| Data Storage | 1000 groups test results |
| Data Export | USB 2.0 (Excel format) |
| Printer | High-speed thermal printer, 58mm paper width |
| Dielectric Loss Measurement | |
| Measurement Range | 0.00001 ~ 100 |
| Resolution | 0.00001 |
| Accuracy | ±(1% of reading + 0.0001) |
| AC Test Voltage | 1000V ~ 2200V, 200V step, 50Hz |
| Capacitance Measurement | |
| Measurement Range | 5pF ~ 200pF |
| Resolution | 0.01pF |
| Accuracy | ±(1% of reading + 0.5pF) |
| DC Resistivity Measurement | |
| Measurement Range | 2.5MΩ·m ~ 20TΩ·m |
| Accuracy | ±10% of reading |
| DC Test Voltage | 0V ~ 600V continuous adjustable |
| Relative Permittivity | |
| Measurement Range | 1.000 ~ 30.000 |
| Accuracy | ±1% of reading |
| Temperature Control | |
| Heating Method | High-frequency induction heating |
| Temperature Range | Room temperature ~ 100℃ continuous adjustable |
| Temperature Control Accuracy | ±0.5℃ |
| Temperature Resolution | 0.1℃ |
| Heating Speed | Room temperature to 90℃ < 20 minutes |
| Oil Cup Parameters | |

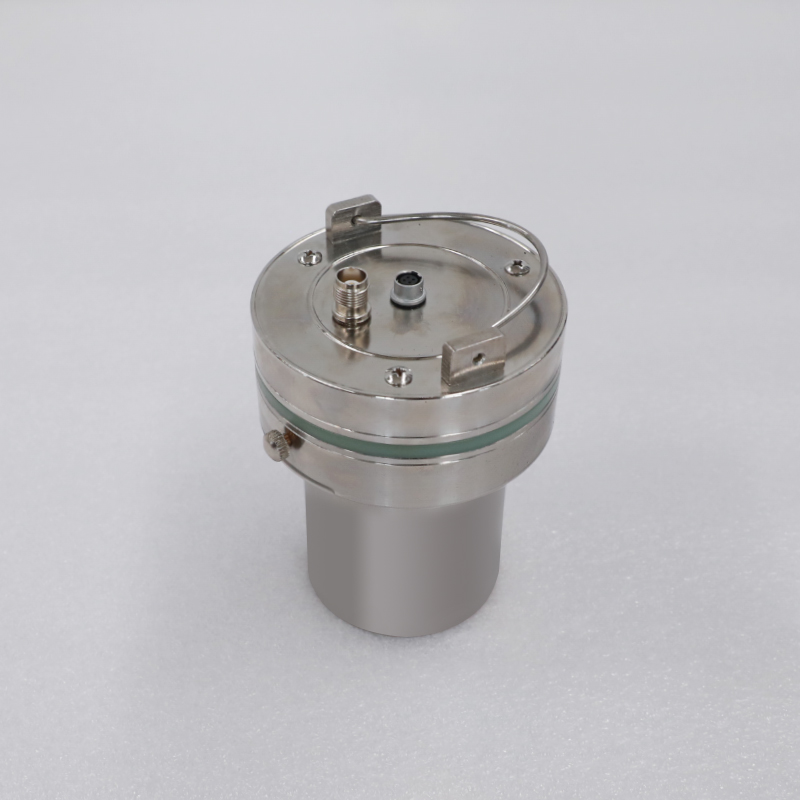

| Type | Three-electrode dielectric loss oil cup |
| Volume | 40mL |
| Electrode Gap | 2mm |
| Power Supply | |
| Input Power | AC 220V±10%, 50Hz |
| Power Consumption | ≤500W |
| Physical Parameters | |
| Dimensions | 400×350×300mm (L×W×H) |
| Weight | ~22kg (including all components) |
| Housing | Cold-rolled steel with electrostatic spraying |
| Protection Grade | IP40 |
| Operating Temperature | -5℃ ~ +40℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Humidity | ≤80% RH (non-condensing) |
Applications
Core Test Objects
- Power industry oils: Transformer oil, switch oil, capacitor oil, cable oil
- Oil-filled equipment: Power transformers, instrument transformers, capacitors, circuit breakers, reactors
Typical Usage Scenarios
- Power companies: Substation preventive maintenance, insulating oil regular testing, fault diagnosis
- Transformer manufacturers: Factory quality control, type tests, after-sales service
- Oil treatment companies: Insulating oil regeneration quality inspection, oil treatment effect evaluation
- Third-party testing institutions: Oil quality testing, performance assessment, quality arbitration
- Industrial enterprises: Internal power equipment oil testing and maintenance
Advantages
Compliance with Latest International Standards
Fully meets GB/T 5654-2007 Chinese national standard, IEC 60247 international standard and ASTM D924 American standard → test results are recognized worldwide
Industry-Leading All-In-One Integrated Design
Integrates all necessary components into one chassis, no external equipment required → reduces test time by 70% and eliminates wiring errors
Advanced High-Frequency Induction Heating Technology
Uniform and fast heating, no local overheating, protects oil samples from thermal degradation → ensures accurate and reliable test results
SF6 Standard Capacitor
Long-term stable performance, unaffected by ambient temperature and humidity → guarantees measurement accuracy for years without recalibration
One-Click Fully Automatic Operation
Automatically completes the entire test process without manual intervention → reduces operator skill requirements and eliminates human errors
Comprehensive Test Functions
Simultaneously measures dielectric loss, DC resistivity, capacitance and relative permittivity in one test → one instrument replaces multiple traditional test equipment
FAQ
Q: How does the high-frequency induction heating work?
A: High-frequency induction heating uses electromagnetic induction to generate eddy currents in the metal oil cup, heating the oil sample directly from the inside. This provides uniform heating throughout the oil sample with no temperature gradients, no local overheating, and faster heating speed compared to traditional resistance heating.
Q: How often does the standard capacitor need to be calibrated?
A: The GD6100 uses an SF6 gas-filled three-electrode standard capacitor with a dielectric loss of less than 0.0001. Its performance is extremely stable and unaffected by ambient temperature and humidity. Under normal use, it only needs to be calibrated once every 2 years according to national metrology requirements.
Q: Can it test different types of insulating oils?
A: Yes. GD6100 can test all types of liquid insulating materials including transformer oil, switch oil, capacitor oil, cable oil and synthetic insulating oils. It supports test temperatures from room temperature to 100℃, covering all standard test temperatures required by international standards.
