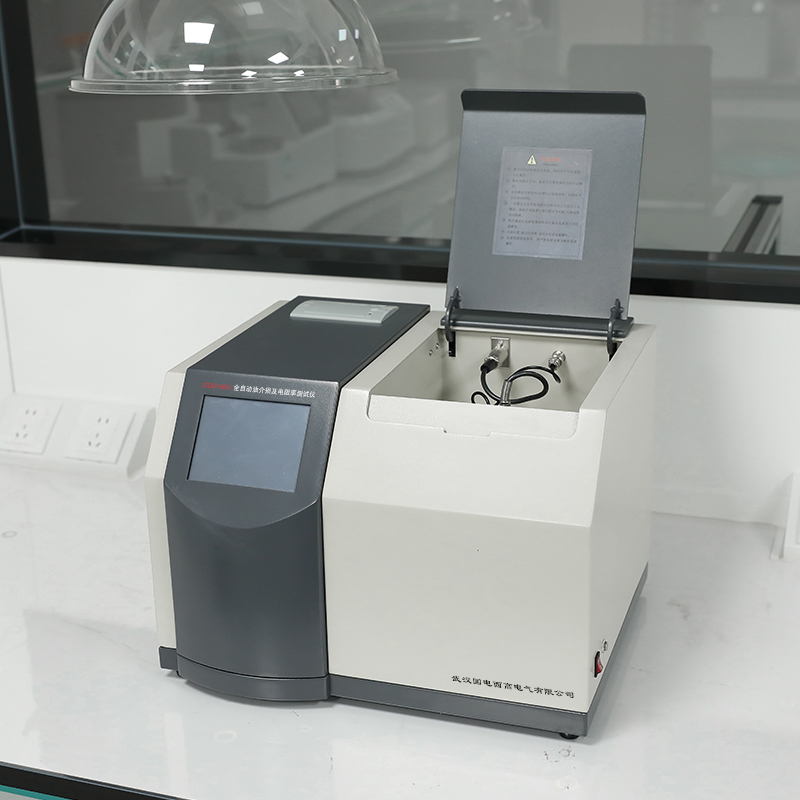

GD6100H Fully Automatic Oil Dielectric Loss & Resistivity Tester
GD6100H Digital Intelligent Fully Automatic Oil Dielectric Loss and DC Resistivity Tester with Integrated High-Frequency Induction Heating Furnace, SF6 Standard Capacitor, One-Click Full Process Test, for Power Transformer Insulation Oil Quality Assessment.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description
The GD6100H is a professional-grade, fully integrated automatic oil dielectric loss and resistivity testerexclusively designed for quality assessment of insulating oil used in power transformers, instrument transformers, capacitors and other oil-filled electrical equipment. It fully complies with GB/T 5654-2007, IEC 60247:2004 and DL/T 474.3-2018 standards, adopting an innovative all-in-one design that integrates all necessary components into a single portable chassis.
The instrument features advanced high-frequency induction heating technology that provides uniform and fast heating, reaching 90℃ from room temperature in less than 20 minutes. Its built-in SF6 gas-filled standard capacitor ensures stable and accurate measurement results unaffected by ambient temperature and humidity. With one-click fully automatic operation, it completes the entire test process including temperature rise, constant temperature control, dielectric loss measurement, DC resistivity measurement and automatic oil discharge without manual intervention.
Specifications
| Parameter | Specification |
|---|---|
| System Parameters | |
| Compliance Standard | GB/T 5654-2007, IEC 60247:2004, DL/T 474.3-2018, ASTM D924 |

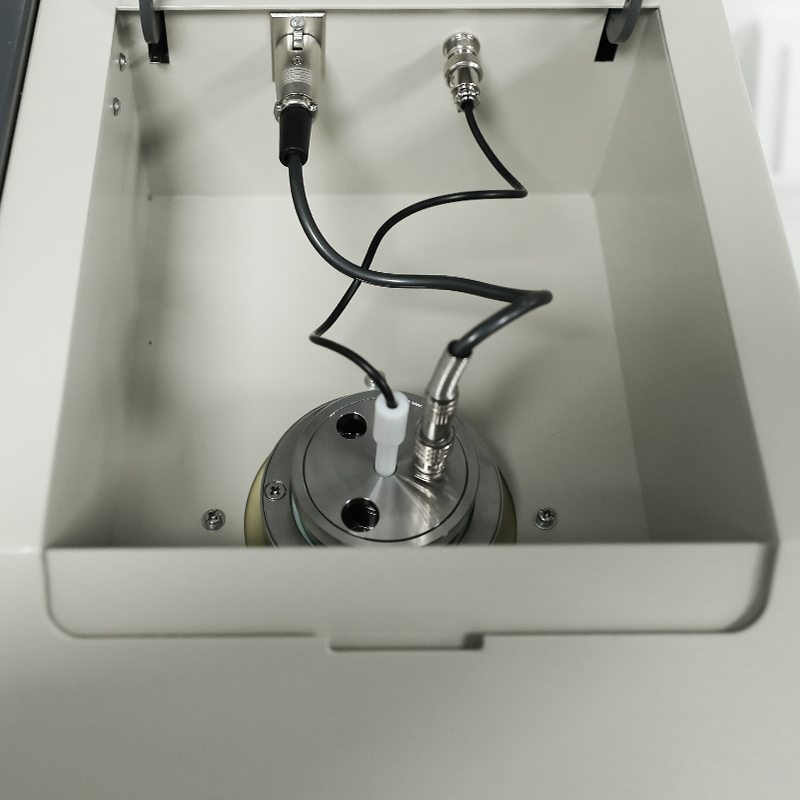

| Integrated Components | High-frequency induction heating furnace, three-electrode oil cup, digital test bridge, SF6 standard capacitor, oil discharge system |
| Operation Modes | Fully automatic mode, manual mode |
| Display | 7-inch 800×480 color touch screen |
| Data Storage | 1000 groups test results |
| Data Export | USB 2.0 (Excel format) |
| Printer | High-speed thermal printer, 58mm paper width |
| Dielectric Loss Measurement | |
| Measurement Range | 0.00001 ~ 100 |
| Resolution | 0.00001 |
| Accuracy | ±(1% of reading + 0.0001) |
| AC Test Voltage | 200V ~ 2200V continuous adjustable, 50Hz |
| Capacitance Measurement | |
| Measurement Range | 5pF ~ 200pF |
| Resolution | 0.01pF |
| Accuracy | ±(1% of reading + 0.5pF) |
| DC Resistivity Measurement | |
| Measurement Range | 2.5MΩ·m ~ 20TΩ·m |
| Accuracy | ±10% of reading |
| DC Test Voltage | 0V ~ 500V continuous adjustable |
| Relative Permittivity | |
| Measurement Range | 1.000 ~ 30.000 |
| Accuracy | ±1% of reading |
| Temperature Control | |
| Heating Method | High-frequency induction heating |
| Temperature Range | 40℃ ~ 120℃ continuous adjustable |
| Temperature Control Accuracy | ±0.5℃ |
| Temperature Resolution | 0.1℃ |
| Heating Speed | Room temperature to 90℃ < 20 minutes |
| Oil Cup Parameters | |
| Type | Three-electrode dielectric loss oil cup |
| Volume | 40mL |
| Electrode Gap | 2mm |
| Power Supply | |
| Input Power | AC 220V±10%, 50Hz |
| Power Consumption | <500W |
| Physical Parameters | |
| Dimensions | 400×350×300mm (L×W×H) |
| Weight | ~25kg (including all components) |
| Housing | Rugged aluminum alloy chassis |
| Protection Grade | IP40 |
| Operating Temperature | 0℃ ~ +40℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Humidity | ≤85% RH (non-condensing) |
Applications
Core Test Objects
- Insulating oils: Transformer oil, switch oil, capacitor oil, cable oil and other liquid insulating materials
- Oil-filled equipment: Power transformers, instrument transformers, capacitors, circuit breakers, reactors
Typical Usage Scenarios
- Power companies: Substation preventive maintenance, transformer oil regular testing, fault diagnosis
- Transformer manufacturers: Factory quality control, type tests, after-sales service
- Oil treatment companies: Insulating oil regeneration quality inspection, oil treatment effect evaluation
- Third-party testing institutions: Oil quality testing, performance assessment, quality arbitration
- Industrial enterprises: Internal power equipment oil testing and maintenance
Advantages
Compliance with Latest International Standards
Fully meets GB/T 5654-2007 Chinese national standard, IEC 60247 international standard and ASTM D924 American standard → test results are recognized worldwide
Industry-Leading All-In-One Integrated Design
Integrates all necessary components into one chassis, no external equipment required → reduces test time by 70% and eliminates wiring errors
Advanced High-Frequency Induction Heating Technology
Uniform and fast heating, no local overheating, protects oil samples from thermal degradation → ensures accurate and reliable test results
SF6 Standard Capacitor
Long-term stable performance, unaffected by ambient temperature and humidity → guarantees measurement accuracy for years without recalibration
One-Click Fully Automatic Operation
Automatically completes the entire test process without manual intervention → reduces operator skill requirements and eliminates human errors
Comprehensive Test Functions
Simultaneously measures dielectric loss, DC resistivity, capacitance and relative permittivity in one test → one instrument replaces multiple traditional test equipment
Built-In Automatic Oil Discharge System
No manual oil pouring, improves test efficiency and avoids oil contamination → clean and safe operation
FAQ
Q: What is the advantage of high-frequency induction heating compared to traditional resistance heating?
A:
- Uniformity: High-frequency induction heating heats the entire oil cup uniformly, resulting in a temperature difference of less than 0.5℃ in the oil sample
- Speed: Reaches 90℃ from room temperature in less than 20 minutes, 3 times faster than traditional resistance heating
- Safety: Non-contact heating, no open flame, no risk of overheating and fire
- Accuracy: No local overheating, prevents thermal degradation of oil samples, ensures accurate test results
Q: How often does the standard capacitor need to be calibrated?
A: The GD6100H uses an SF6 gas-filled three-electrode standard capacitor with a dielectric loss of less than 0.0001. Its performance is extremely stable and unaffected by ambient temperature and humidity. Under normal use, it only needs to be calibrated once every 2 years according to national metrology requirements.
Q: Can it test different types of insulating oils?
A: Yes. GD6100H can test all types of liquid insulating materials including transformer oil, switch oil, capacitor oil, cable oil and synthetic insulating oils. It supports test temperatures from 40℃ to 120℃, covering all standard test temperatures required by international standards.
Q: Does it require manual oil discharge after testing?
A: No. GD6100H has a built-in automatic oil discharge system. After the test is completed, the instrument will automatically discharge the test oil into the waste oil container. No manual oil pouring is required, making the operation clean and safe.
