HCB-15 HV Circuit Breaker Tester for SF6 Vacuum GIS Breakers
HCB-15 Series Digital Intelligent High Voltage Circuit Breaker Mechanical Characteristic Comprehensive Tester with Built-in Adjustable Operation Power Supply, 12-Channel Synchronous Acquisition, Time/Speed/Travel/Synchronism/Bounce Measurement, for HV Switchgear On-Site Fault Diagnosis and Preventive Test.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description

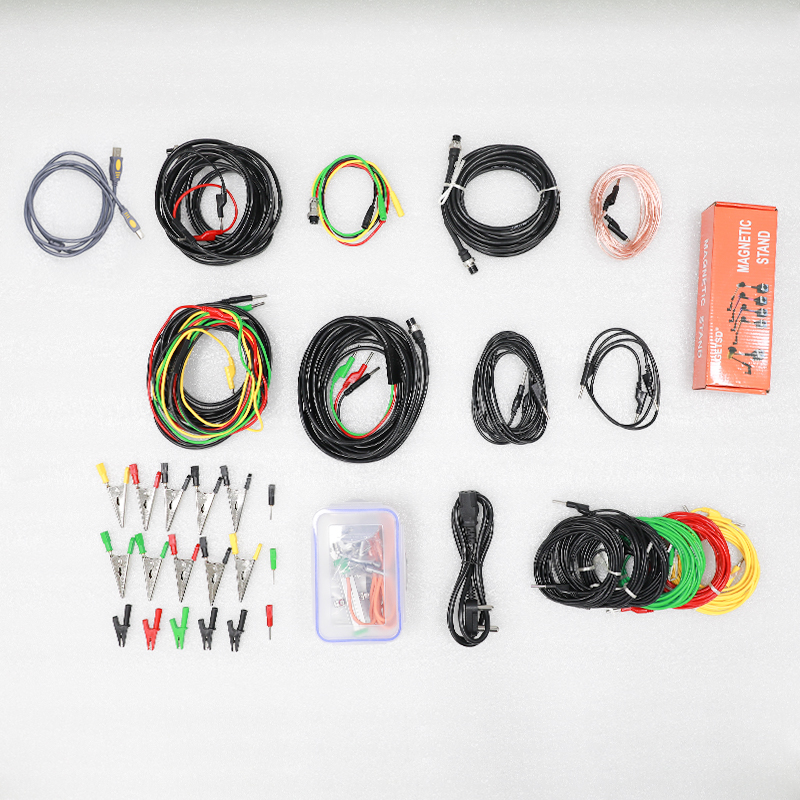

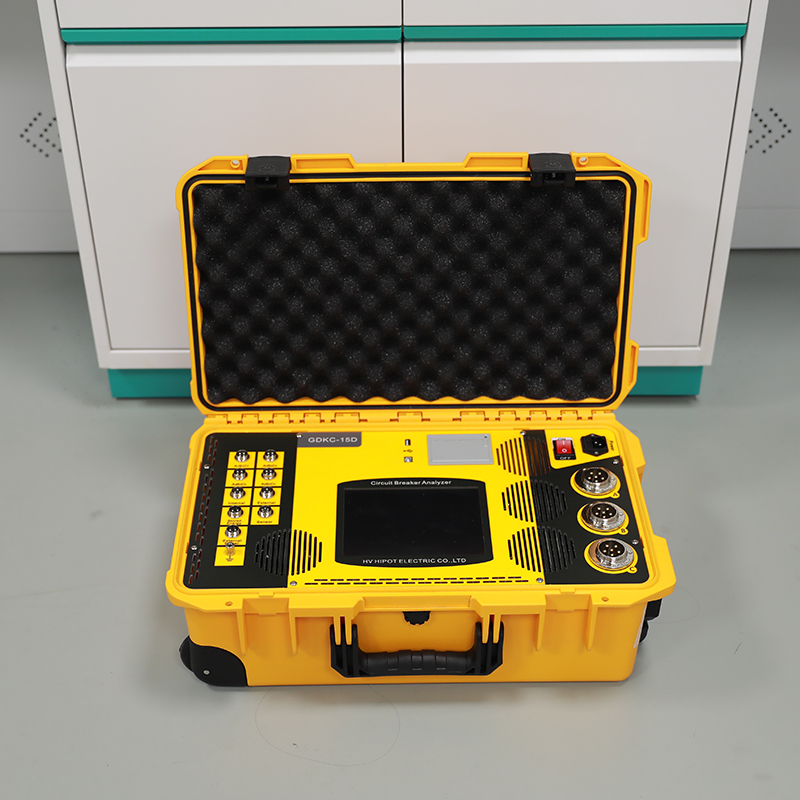

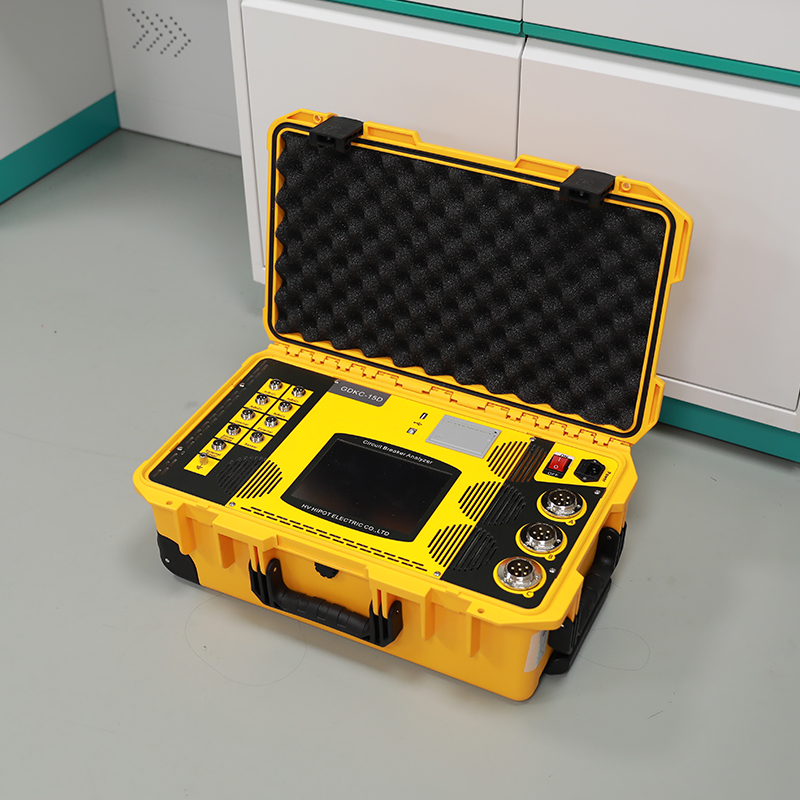

HCB-15 series is a professional portable high voltage circuit breaker mechanical characteristic tester designed for mechanical performance test, fault diagnosis and preventive maintenance of high voltage switchgear in substations, power plants, switchgear manufacturers, industrial enterprises and third-party testing institutions. It strictly complies with DL/T 846.3-2017, GB/T 1984-2024 and IEC 62271-100:2017 standards, adopting high-speed multi-channel synchronous acquisition technology and intelligent digital signal processing algorithm that enables accurate measurement of all key mechanical parameters of circuit breakers, providing reliable data basis for equipment status evaluation and fault location.
The instrument features 12 independent break channels with 0.1ms ultra-high time resolution, supporting simultaneous test of multi-phase and multi-break circuit breakers. Its built-in 30V~300V continuously adjustable DC operation power supply with 20A peak output eliminates the need for external control power supply, greatly improving on-site test convenience. It is compatible with both linear displacement sensors and rotary angle sensors, suitable for various types of operating mechanisms including spring mechanism, hydraulic mechanism and electromagnetic mechanism. It supports comprehensive test items including opening/closing time, three-phase synchronism, contact bounce, travel curve, speed characteristics, coil current/voltage waveform, auto-reclosing sequence and low-voltage operation test.
Specifications
| Category | Parameter | 15A | 15B | 15C | 15D | 15E | 15F | 15G | 15H |
|---|---|---|---|---|---|---|---|---|---|
| Channel Configuration | Metal Contact Channels | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Closing Resistance Channels | — | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| Graphite Contact Channels | — | — | — | 3 | 3 | 3 | 3 | 6 | |
| Double-Ended Grounding Channels | — | — | — | — | 3 | 3 | 3 | 6 | |
| Dynamic Resistance (Pre-Insertion Resistance) Channels | 1 | 1 | 3 | 3 | — | — | 3 | 6 | |
| Static Resistance Channels | 1 | 1 | 3 | 3 | — | — | 3 | 6 | |
| Ground Resistance Channels | — | — | — | — | — | — | 3 | 6 | |
| Test Functions & Specifications | Time Characteristics (Inherent open/close time, same-pole asynchronism, phase-to-phase asynchronism) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Reclosing Test (C-O, O-C, C-O-C sequences; single/double reclosing time, dead time, no-current duration) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Contact Bounce Measurement (Bounce time, bounce count, bounce process, bounce waveform per contact) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Speed Characteristics (Just-opening/just-closing speed, maximum speed, time-travel characteristic curve) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Travel Characteristics (Total travel, open gap, over-travel, overshoot stroke, rebound amplitude) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Coil Current Analysis (Opening/closing coil current value, real-time current waveform) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Custom Speed Definition (User-customizable speed rules, post-test data recalculation) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Built-in DC Operating Power Supply (0–300V DC / 20A digitally adjustable, automatic output control) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Applications
Core Test Objects
- High voltage circuit breakers: Vacuum circuit breakers, SF6 circuit breakers, oil-less/multi-oil circuit breakers (10kV ~ 500kV)
- Combined switchgear: GIS gas insulated switchgear, HGIS hybrid switchgear
- Other switching devices: Load break switches, disconnectors, earthing switches, contactors
- Operating mechanisms: Spring operating mechanisms, hydraulic operating mechanisms, electromagnetic operating mechanisms
Typical Usage Scenarios
- Power utilities: Substation switchgear routine preventive test, equipment status evaluation and fault diagnosis
- Switchgear manufacturers: Factory quality control, finished product delivery test, type test assistance and after-sales service
- Industrial enterprises: Internal distribution system regular inspection, equipment maintenance and acceptance test
- Third-party testing institutions: Switchgear performance certification, power engineering acceptance and safety assessment
- Power research institutes: Circuit breaker performance research, new product test and standard formulation test
Advantages
Compliance with Latest Industry Standards
Fully meets DL/T 846.3-2017, GB/T 1984-2024, IEC 62271-100 → test results are globally recognized and comply with power test specifications and product quality standards
Industry-Leading 12-Channel Synchronous Test
One wiring completes multi-phase multi-break test, 0.1ms ultra-high resolution → accurately captures subtle action differences, evaluates synchronism and bounce characteristics in detail
Built-in Adjustable Operation Power Supply
30-300V DC continuous adjustable, 20A peak output → no external control power supply required, greatly improves on-site test convenience and work efficiency
Multi-Sensor Compatible Full Parameter Test
Compatible with linear/rotary sensors, one instrument covers time, travel, speed, coil full parameters → reduces equipment purchase cost by 50%
Intelligent Fault Diagnosis & Automatic Judgment
Built-in standard database, automatic pass/fail judgment → reduces operator skill requirements, avoids manual judgment error
AC/DC Dual Power Supply & Long Battery Life
Built-in lithium battery + mains dual power supply, ≥8 hours battery life → adapts to on-site test scenarios without mains power in substations
Portable Strong Anti-Interference Design
Aluminum alloy chassis, all-channel isolation, strong anti-electromagnetic interference → suitable for complex substation field environment, stable and reliable test data
FAQ
Q: What types of high voltage switches can HCB-15 test?
A: HCB-15 series is suitable for almost all types of high voltage switching equipment, including vacuum circuit breakers, SF6 circuit breakers, oil-less/multi-oil circuit breakers, GIS combined electrical appliances, load break switches and disconnectors of 10kV to 500kV voltage class. It is compatible with spring, hydraulic and electromagnetic operating mechanisms, and can meet the test requirements of most mainstream brands and models of switchgear.
Q: What is the function of the built-in operation power supply?
A: The traditional circuit breaker test requires an external DC control power supply to drive the opening and closing coils, which is inconvenient for on-site test. HCB-15 has a built-in 30V~300V adjustable DC power supply with 20A peak output, which can directly drive the circuit breaker operating mechanism without external power supply, greatly simplifying the on-site test wiring and improving work efficiency. It also supports programmable output time to meet different test sequence requirements.
Q: What is the significance of measuring contact bounce?
A: Excessive contact bounce will cause the contacts to arc for a long time, aggravate contact ablation, and even cause contact welding in severe cases, which seriously affects the electrical life and breaking reliability of the circuit breaker. HCB-15 can accurately measure the bounce time and bounce times of each phase contact, and evaluate the contact assembly quality and mechanism buffering performance, which is an important basis for judging whether the circuit breaker can be put into operation safely.
Q: Can it perform auto-reclosing sequence test?
A: Yes. HCB-15 supports multiple operation sequence tests including "close-open", "open-close-open" and "close-open-close", and the time interval between each action can be set freely. It can simulate the actual auto-reclosing action process of the power system, test the mechanical action reliability of the circuit breaker under continuous operation, and evaluate the mechanism's energy storage and action coordination performance.
