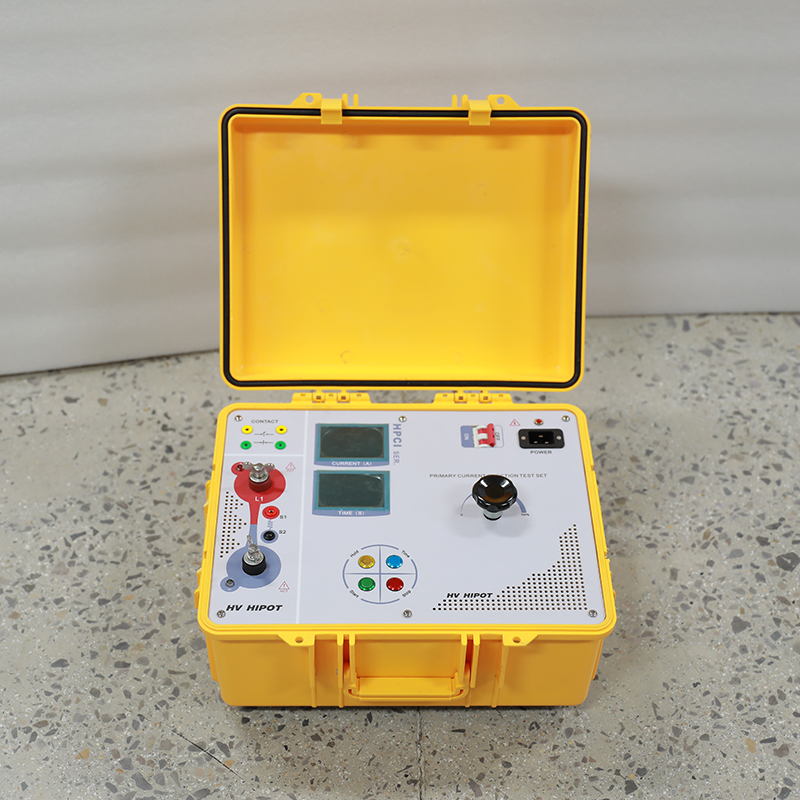

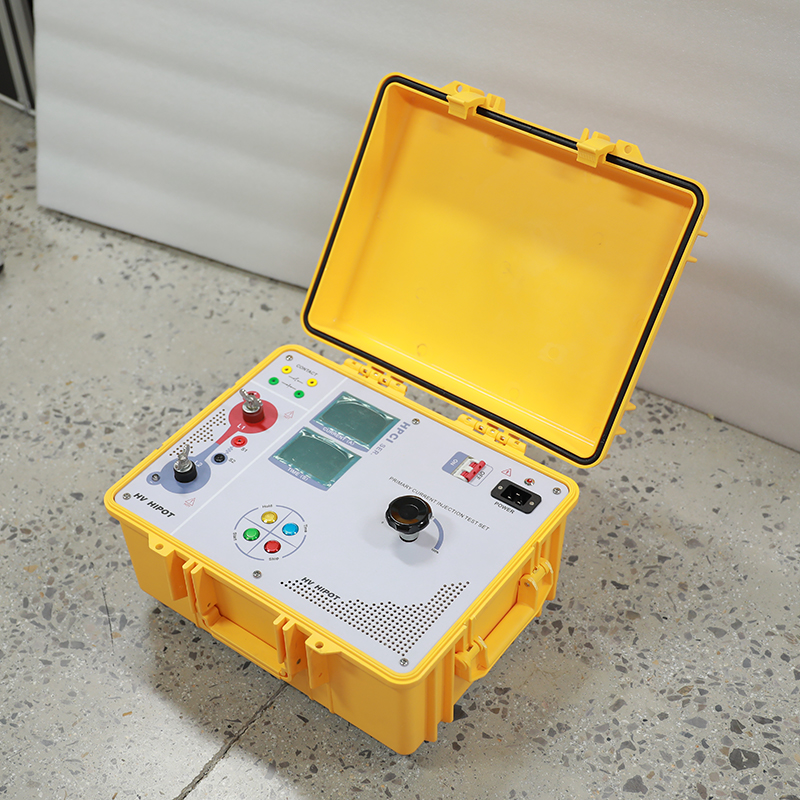

HPCI-1000A Portable High Current Generator
HPCI-1000A Digital Intelligent Integrated Portable High Current Generator with 0-1000A Adjustable Output, 4.3-inch LCD Display, Automatic Timing, Multi-Level Safety Protection, for Electrical Equipment Small Current Load and Calibration Test.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description
The HPCI-1000A is a professional-grade, classic integrated portable high current generatorexclusively designed for small current load tests, current transformer ratio verification, protection relay calibration and low-voltage circuit breaker testing in power systems, electrical manufacturing and industrial enterprises. It fully complies with GB/T 14048.1-2023, GB 7251.1-2013 and IEC 60947-1:2020 standards, adopting an innovative all-in-one compact design with universal wheels and handles, allowing single-person transportation and deployment.
The instrument features a high-efficiency toroidal current booster with low loss and high output efficiency, delivering 0-1000A continuously adjustable large current output with ±1% measurement accuracy and 0.2% current stability. The output waveform is a standard sine wave with distortion ≤3%, meeting the strict requirements of international standards for test waveforms. The built-in high-precision true RMS current transformer eliminates the need for external standard meters, ensuring accurate and reliable measurement results.
Specifications
| Parameter | Specification |
|---|---|
| System Parameters | |
| Compliance Standard | GB/T 14048.1-2023, GB 7251.1-2013, IEC 60947-1:2020, DL/T 848.1-2004 |
| Structure Type | Integrated all-in-one |
| Mobility | Universal wheels with brakes + ergonomic handles |
| Operation Modes | Manual mode / Automatic mode |
| Display | 4.3-inch 480×272 color LCD screen |
| Parameter Memory | 5 groups of test parameters |
| Timing Function | 0 ~ 999.9s adjustable, ±0.1s accuracy, audible alarm |
| Electrical Parameters | |
| Input Power | AC 220V±10%, single-phase, 50Hz±1Hz |
| Rated Capacity | 6kVA |
| Output Current Range | 0 ~ 1000A AC continuously adjustable |
| Current Accuracy | ±1% of reading |
| Current Stability | ≤0.2% |
| Output Waveform | Standard sine wave |
| Waveform Distortion | ≤3% |
| Open Circuit Voltage | ≥6V |
| Rated Duty Cycle | 30 minutes at 1000A, continuous operation at ≤500A |
| Protection Functions | |
| Overcurrent Protection | Yes (adjustable threshold) |
| Overload Protection | Yes |
| Overheat Protection | Yes (80℃ automatic stop) |
| Short Circuit Protection | Yes (≤1ms response) |
| Zero Position Protection | Yes |
| Emergency Stop | Yes |
| Power Supply | |
| Input Power | AC 220V±10%, single-phase, 50Hz |
| Power Consumption | ≤6kW (peak) |
| Physical Parameters | |
| Dimensions | 450×350×350mm (L×W×H) |
| Weight | ~35kg (including all components) |
| Housing | Cold-rolled steel with electrostatic spraying |
| Protection Grade | IP40 |
| Operating Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Humidity | ≤85% RH (non-condensing) |
| Altitude | ≤2000m (customizable for higher altitudes) |
Applications
Core Test Objects
- Instrument Transformers: Current transformers (CT) ratio and polarity test
- Protection Devices: Current relays, thermal relays, overcurrent protectors calibration
- Switchgear: Low-voltage circuit breakers, miniature circuit breakers, fuse switches test
- Busbar & Cable: Small-size busbars, power cables, wire harnesses temperature rise test
- Other Equipment: Motor starters, contactors, distribution cabinets inspection
Typical Usage Scenarios
- Power companies: Substation on-site inspection, CT ratio verification, protection device calibration
- Small switchgear manufacturers: Factory quality control, batch production inspection of low-voltage breakers
- Power plants: Generator auxiliary equipment test, low-voltage distribution system inspection
- Industrial enterprises: Internal electrical equipment maintenance, motor protection test
- Third-party testing institutions: Small electrical equipment certification testing, on-site calibration services
Advantages
Compliance with Latest International Standards
Fully meets GB/T 14048.1-2023 Chinese national standard, IEC 60947-1 international standard and DL/T 848.1 industry standard → test results are recognized worldwide
Industry-Leading Integrated Portable Design
All-in-one structure with universal wheels and handles, total weight only 35kg, single-person portable → ideal for on-site testing and emergency maintenance
High-Precision & Stable Current Output
±1% measurement accuracy, 0.2% current stability, standard sine wave output → ensures accurate and reliable test results for all electrical equipment
Intelligent LCD Control
4.3-inch color LCD screen, dual operation modes, automatic timing function → simple and intuitive operation, reduces operator skill requirements
Comprehensive Multi-Level Safety Protection
Multiple electrical and mechanical protection measures, isolated control circuit → ensures absolute safety of operators and equipment during high current testing
Industrial-Grade Reliability
Rugged construction, forced air cooling, wide operating temperature range → works reliably in various harsh field environments
FAQ
Q: How long can the equipment operate continuously at rated current?
A: HPCI-1000A can operate continuously for 30 minutes at 1000A rated current with the built-in forced air cooling system. For currents ≤500A, it can operate continuously for an unlimited time. For longer duration tests at rated current, we recommend using our water-cooled series high current generators.
Q: Can it be used to test three-phase equipment?
A: Yes. For three-phase equipment testing, you can use three single-phase HPCI-1000A generators simultaneously, or choose our three-phase series high current generators (HPCI-1000A-3P) which can output balanced three-phase currents.
Q: What safety measures are in place to protect operators during high current testing?
A: HPCI-1000A is equipped with a comprehensive safety protection system:
- Isolated control circuit: Low voltage control circuit is completely isolated from high current circuit
- Multiple electrical protections: Overcurrent, overload, overheat and short circuit protection
- Mechanical protections: Zero position protection and emergency stop button
- Warning system: Audible and visual alarms for abnormal conditions
- Clear safety signs: Prominent safety signs on the equipment to remind operators of potential hazards
Q: How to calibrate the current measurement accuracy?
A: The instrument can be calibrated using a standard high current transformer and standard ammeter. Users can connect the standard equipment in series with the output terminal, apply different current levels, compare the measured values with the standard values, and adjust the calibration coefficient in the instrument menu. The calibration procedure is simple and fast, and the instrument provides a built-in calibration wizard to guide users through the process.
