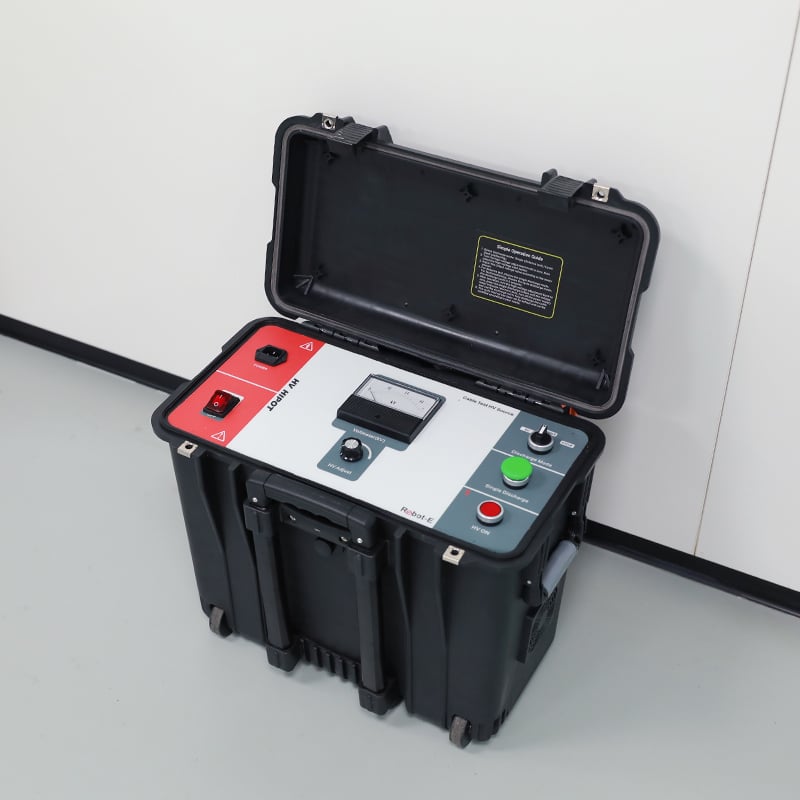

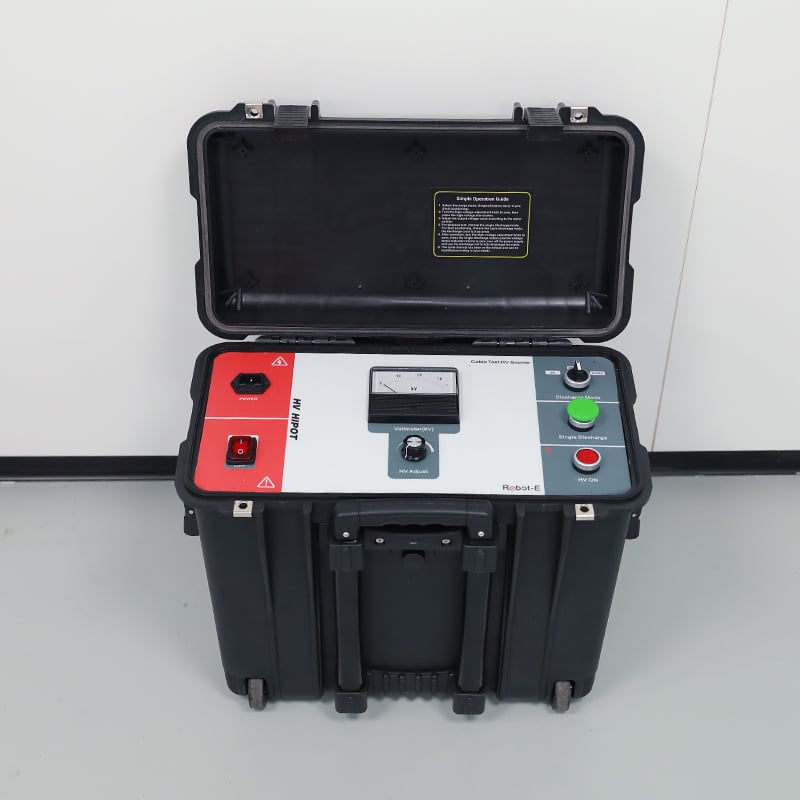

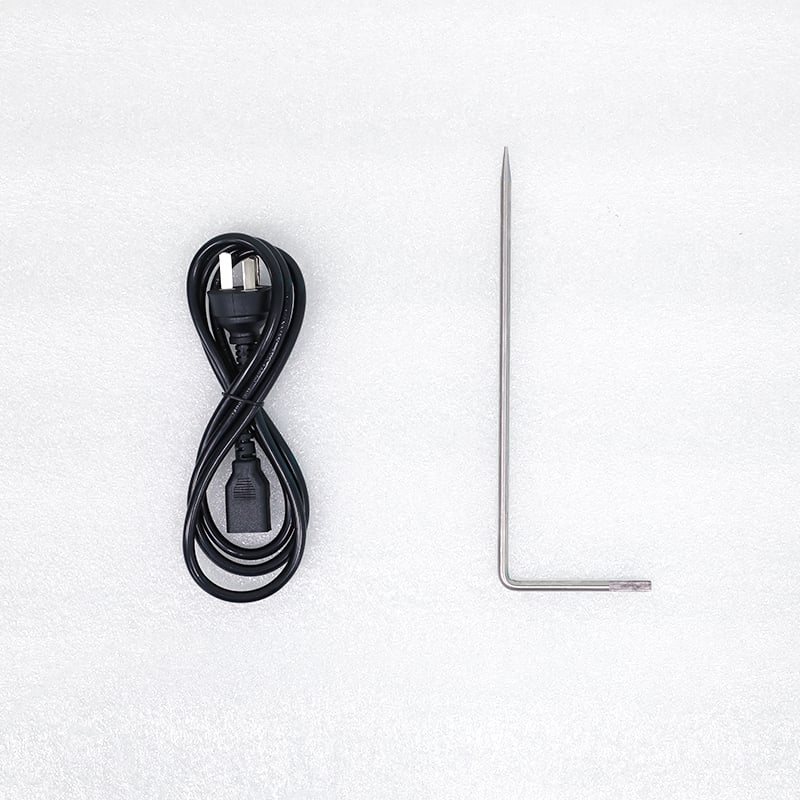

RE-H35 Portable Integrated High Voltage Surge Generator
RE-H35 Digital Intelligent Integrated High Voltage Signal Generator with Built-in Energy Storage Capacitor, 0-35kV Negative DC Adjustable, DC/Single/Cycle Discharge Modes, for Power Cable Fault Flashover Location and High Resistance Fault Burn-Through Pretreatment.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description
RE-H35 is a professional all-in-one high voltage surge signal generator designed for flashover method fault location and high resistance fault burn-through pretreatment of 10kV~35kV XLPE, oil-impregnated paper and PVC power cables. It is widely used in power operation and maintenance teams, cable construction companies, industrial enterprises and municipal engineering departments for cable fault rush repair and preventive test. It strictly complies with DL/T 849.1-2019, GB/T 12706.1-2020 and DL/T 596-2021 standards, adopting highly integrated design that integrates high voltage rectifier unit, energy storage capacitor, discharge mechanism and control system into a single chassis, eliminating the need for external capacitors and complex wiring, greatly improving on-site test efficiency and operation safety.
The instrument delivers 0~-35kV continuously adjustable negative DC output with a built-in 4μF/35kV standard energy storage capacitor, supporting maximum 2480J discharge energy. It adopts controlled gap discharge technology to generate standard surge high voltage, which breaks down the cable fault point to produce flashover discharge, and cooperates with the cable fault tester to complete accurate fault distance measurement. It supports three working modes: DC output, single discharge and periodic discharge, adapting to different fault types and test requirements. The built-in 7-inch color touch screen realizes intuitive man-machine interaction, and the built-in automatic discharge device ensures zero residual voltage after shutdown, eliminating safety hazards.
Specifications
| Parameter | Specification |
|---|---|
| Compliance Standards | DL/T 849.1-2019, GB/T 12706.1-2020, DL/T 596-2021, GB/T 16927.1-2011 |
| Output Voltage Range | 0 ~ -35kV DC, continuously adjustable (negative polarity) |
| Built-in Energy Storage Capacitance | 4μF / 35kV |
| Maximum Discharge Energy | 2480J |
| Working Modes | DC output mode / Single discharge mode / Periodic discharge mode |
| Discharge Cycle | 3~8s adaptive, user adjustable (factory default: 6s) |
| Maximum Working Current | ≤40mA |
| Automatic Discharge Device | Built-in, auto discharge after shutdown / fault |
| Voltage Measurement Accuracy | ±2% FS |
| Input Power Supply | AC 220V ± 10%, 50/60Hz |
| Rated Power | 1.5kVA |
| Display & Operation | 7-inch 800×480 color touch screen, Chinese/English bilingual |
| Protection Functions | Zero-position start, over-voltage, over-current, short-circuit, over-temperature, auto discharge, emergency stop |
| Alarm Mode | Sound and light prompt for discharge and fault |
| Applicable Cable Voltage Grade | 10kV ~ 35kV power cables |
| Applicable Fault Types | High resistance grounding, flashover, leakage, joint high resistance faults |
| Operating Temperature | -10℃ ~ +50℃ |
| Ambient Humidity | ≤80% RH (non-condensing) |
| Altitude Limit | ≤ 1000m |
| Dimensions (L×W×H) | 500 × 380 × 450mm |
| Weight | ~ 32kg (net weight) |
| Enclosure | Aluminum alloy portable chassis with built-in handle |
Applications
Core Application Scenarios
- Cable fault flashover location: Cooperates with cable fault tester to complete distance measurement of high resistance, flashover and leakage faults
- High resistance fault burn-through: Breaks down high resistance fault points continuously to reduce resistance, assists low-voltage pulse method and bridge method for accurate location
- DC withstand voltage test: Used as DC high-voltage power supply for DC withstand test and leakage current test of cables, motors, capacitors, insulators and other equipment
- Cable insulation state evaluation: Regular insulation detection and preventive test of power cables
Typical Users
- Power operation and maintenance departments: Distribution network and transmission cable fault rush repair, daily preventive test, fault troubleshooting
- Cable construction companies: Fault detection after cable laying, completion acceptance test, project handover detection
- Industrial and mining enterprises: Internal power cable fault maintenance, daily insulation inspection, equipment regular maintenance
- Municipal and property: Residential area, street lamp, municipal pipeline cable fault investigation and rush repair
- Third-party testing institutions: Cable fault detection service, insulation test service, equipment performance verification
Advantages
Compliance with Latest Industry Standards
Fully meets DL/T 849.1-2019, GB/T 12706, DL/T 596 → test methods and performance comply with the latest power cable test specifications, test results are authoritative and reliable
All-in-One Highly Integrated Design
Integrates high voltage unit, energy storage capacitor and discharge mechanism → eliminates external accessories, reduces wiring workload by 60%, greatly improves on-site rush repair efficiency
High Energy Stable Surge Discharge
4μF built-in capacitor, 2480J discharge energy, three working modes → stable and consistent breakdown of fault points, ensures accurate and repeatable fault location results
Full Dimensional Safety Protection
Zero-position start + built-in automatic discharge + over-voltage/over-current/short-circuit protection + emergency stop → eliminates electric shock hazards, ensures absolute safety of on-site operators
FAQ
Q: What is the function of the high voltage signal generator in cable fault detection?
A: The high voltage signal generator is the core power equipment for cable fault flashover test. It applies DC high voltage to the cable to charge the energy storage capacitor, and breaks down the fault point through gap discharge to generate flashover arc. The cable fault tester collects the discharge traveling wave signal and calculates the fault distance through waveform analysis. It is mainly used for detection of high resistance and flashover faults that cannot be located by low-voltage pulse method.
Q: What are the three working modes used for?
A: The three modes correspond to different test requirements:
- DC output mode: Continuous DC high voltage output, used for burn-through pretreatment of high resistance faults and DC withstand voltage test
- Single discharge mode: One discharge per trigger, used for precise waveform acquisition and fault distance measurement
- Periodic discharge mode: Automatic cyclic discharge at set intervals, used for continuous flashover test and fault pinpointing
Q: What safety matters should be paid attention to during on-site operation?
A: 1. The equipment must be reliably grounded before operation, and the other end of the cable must be properly guarded to prevent others from approaching; 2. Operators must maintain a safe distance from the high-voltage output terminal during high-voltage output; 3. In case of emergency, press the emergency stop button immediately, and the equipment will automatically discharge; 4. Although the equipment has built-in automatic discharge, it is still necessary to confirm zero voltage before touching the high-voltage end after shutdown; 5. The test must be carried out after confirming that the cable is completely powered off.
