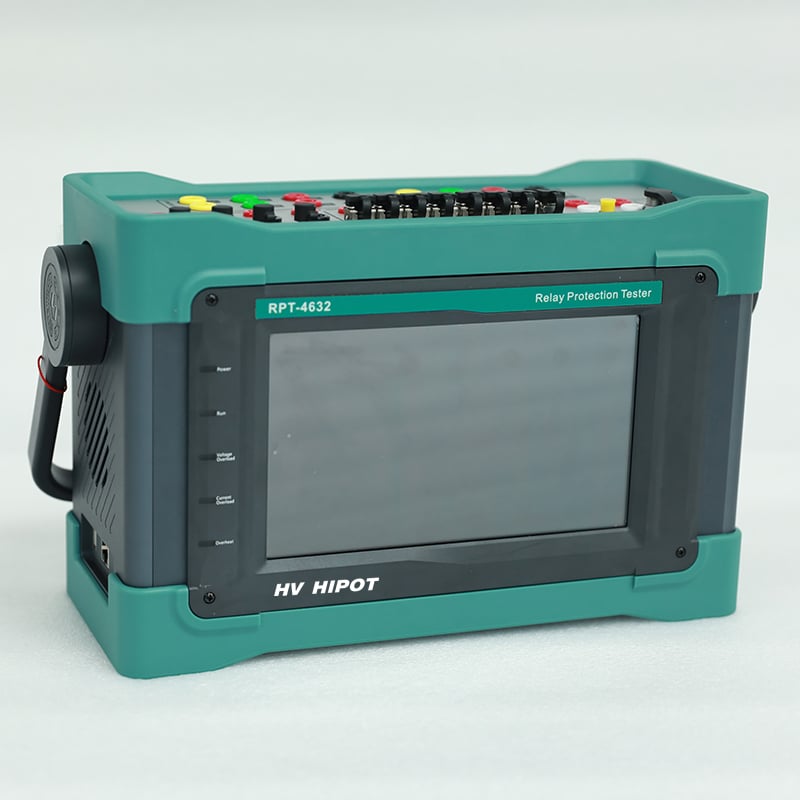

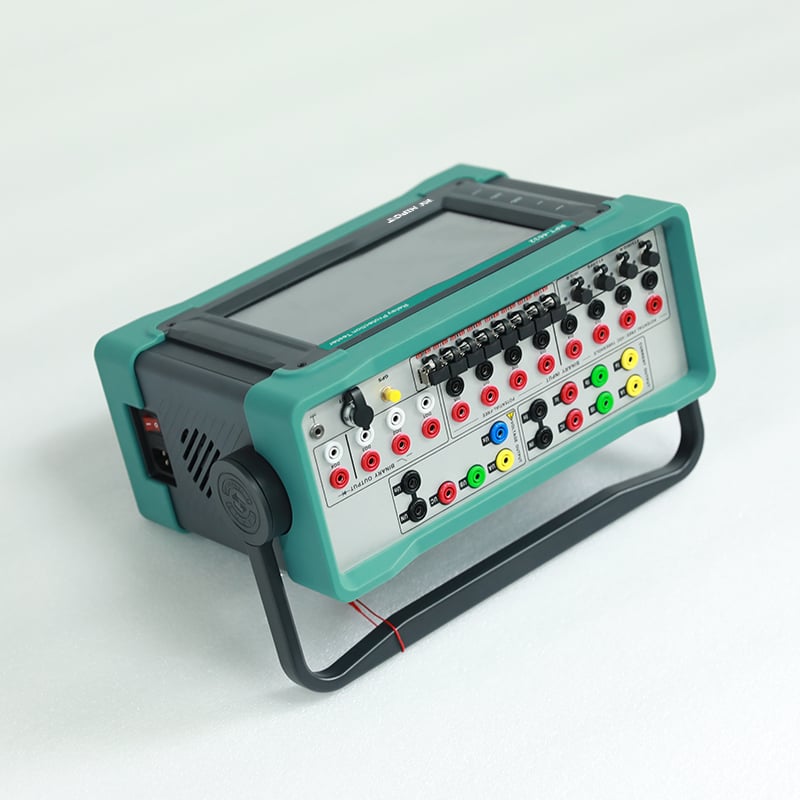

RPT-4632 High-Power AC Relay Tester
RPT-4632 Digital Intelligent High-Power Microcomputer Relay Protection Tester with Industrial PC+DSP+FPGA Triple-Core Architecture, 4-Phase Voltage + 6-Phase Current AC Synchronous Output, 0.2% Accuracy, Built-in GPS Synchronization Module, for 220kV and Above Substation Multi-Branch Protection Testing.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description
The RPT-4632 is a professional-grade, high-power multi-channel pure AC microcomputer relay protection testerexclusively designed for commissioning, testing and maintenance of complex multi-branch protection devices in 220kV and above large substations. It fully complies with DL/T 624-2023, DL/T 995-2016 and IEC 60255-1:2019 standards, adopting an advanced industrial PC+DSP+FPGA triple-core parallel architecture to achieve high-precision, high-stability and high-speed 10-channel synchronous signal output.
The instrument features a unique 4-phase voltage + 6-phase current all-synchronous output design with 0.2% output accuracy, supporting a wide frequency range of 10~1000Hz and 1~30 harmonic superposition. It can accurately simulate various complex power system fault conditions such as busbar short circuit, three-winding transformer internal fault, generator stator ground fault and power oscillation. With over 120 built-in professional test modules, it supports comprehensive testing of all types of complex protection devices including busbar differential protection, three-winding transformer differential protection, generator differential protection, double busbar protection and line longitudinal differential protection.
Specifications
| Parameter | Specification |
|---|---|
| System Parameters | |
| Compliance Standard | DL/T 624-2023, DL/T 995-2016, IEC 60255-1:2019, GB/T 14598.1-2010 |
| Control Architecture | Industrial PC + DSP + FPGA triple-core |
| Operating System | Embedded Windows 10 |
| Display | 10.1-inch 1280×800 industrial touch screen |
| Operation Modes | Touch screen + physical buttons |
| Synchronization Accuracy | <1μs between channels |
| AC Voltage Output | |
| Number of Phases | 4 independent phases (UA, UB, UC, UN) |
| Output Range | 0 ~ 125V/phase, 0 ~ 240V line voltage |
| Output Accuracy | ±0.2% |
| Output Power | 80VA/phase |
| Frequency Range | 10Hz ~ 1000Hz |
| Frequency Accuracy | ±0.001Hz |
| Phase Range | 0° ~ 360° |
| Phase Accuracy | ±0.1° |
| AC Current Output | |
| Number of Phases | 6 independent phases (IA, IB, IC, ID, IE, IF) |
| Output Range | 0 ~ 30A/phase, 0 ~ 180A (six-phase parallel) |
| Output Accuracy | ±0.2% |
| Output Power | 450VA/phase |
| Frequency Range | 10Hz ~ 1000Hz |
| Harmonic Output | |
| Harmonic Times | 1 ~ 30 times |
| Amplitude Range | 0 ~ 40% of fundamental |
| Phase Range | 0° ~ 360° |
| GPS Synchronization | |
| GPS Module | Built-in high-precision GPS receiver |
| Synchronization Signal | PPS/PPM pulse |
| Synchronization Accuracy | <1ms |
| Two-End Test | Supported (line longitudinal differential protection) |
| Switch 量 Interface | |
| Switch Input | 8 pairs, supports empty contacts and potential contacts |
| Switch Output | 4 pairs, DC 250V/0.5A, AC 250V/0.5A |
| Time Measurement | 0.1ms ~ 9999s, accuracy <0.1ms |
| Power Supply | |
| External Power | AC 220V±10%, 50Hz |
| Built-in Battery | Lithium-ion battery, 14.8V/15000mAh |
| Battery Life | ≥6 hours continuous operation |
| Charging Time | ~4 hours (full charge) |
| Physical Parameters | |
| Dimensions | 400×320×180mm (L×W×H) |
| Weight | ~15kg (including battery) |
| Housing | Rugged aluminum alloy chassis |
| Protection Grade | IP40 |
| Operating Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Humidity | ≤90% RH (non-condensing) |
Applications
Core Test Objects
- Busbar protection devices: 220kV~500kV busbar differential protection, double busbar protection, breaker failure protection
- Transformer protection devices: Three-winding transformer differential protection, main transformer backup protection
- Generator protection devices: Generator stator differential protection, rotor ground protection, stator ground protection
- Line protection devices: 220kV~500kV line longitudinal differential protection, distance protection, directional protection
- Other devices: Reactor protection, capacitor protection, automatic transfer switch devices, reclosing devices
Typical Usage Scenarios
- Power companies: 220kV and above substation acceptance tests, daily maintenance, fault troubleshooting
- Power engineering companies: Large substation construction commissioning, equipment installation and debugging
- Electrical equipment manufacturers: Factory quality control, type tests, after-sales service
- Third-party testing institutions: High-voltage equipment performance testing, quality arbitration
- Power generation groups: Power plant generator and transformer protection testing and maintenance
Advantages
Compliance with Latest International Standards
Fully meets DL/T 624-2023 Chinese power industry standard and IEC 60255-1:2019 international standard → test results are recognized by power systems worldwide
Industry-Leading 4U6I Output Configuration
The only 4U6I pure AC relay tester in its class, supporting 6-branch current output → can complete busbar differential and three-winding transformer differential tests in one connection, improving test efficiency by 300%
180A Ultra-High Current Output Capability
Six-phase current parallel output up to 180A continuous current → meets the test requirements of high-current busbar differential protection and generator differential protection without additional current amplifiers
Built-in GPS Synchronization Module
Supports remote two-end synchronous test for line longitudinal differential protection → truly simulates actual fault conditions, ensuring the reliability of longitudinal differential protection test results
Over 120 Built-in Professional Test Modules
Covers all types of complex multi-branch protection tests, no need for manual programming → greatly reduces operator skill requirements and test time
6-Hour Ultra-Long Battery Life
Built-in high-capacity lithium battery, no need for external power supply → ideal for on-site testing in remote substations and construction sites
FAQ
Q: Why do we need 6-phase current output?
A: Many complex protection devices require multiple current inputs:
- Busbar differential protection needs 6~12 branch current inputs
- Three-winding transformer differential protection needs high/medium/low voltage side 6 current inputs
- Double busbar protection needs multiple branch and tie breaker current inputs RPT-4632's 6-phase current output can complete these tests in one connection, eliminating the need for repeated wiring and improving test efficiency by 300%.
Q: What is the function of GPS synchronization?
A: For line longitudinal differential protection, the protection devices on both sides of the transmission line need to operate synchronously. The built-in GPS module of RPT-4632 can synchronize two testers located at both ends of the line with <1ms accuracy, truly simulating internal and external faults of the line and verifying the correct operation of the longitudinal differential protection.
Q: Can it output 180A continuous current?
A: Yes. By connecting the six current phases in parallel, RPT-4632 can output up to 180A continuous current, which meets the test requirements of high-current busbar differential protection and generator differential protection. The output time can be set arbitrarily from 0.1s to 9999s.
Q: Is it suitable for conventional protection testing?
A: Yes. In addition to complex multi-branch protection tests, RPT-4632 also supports all conventional protection test modules, including line protection, two-winding transformer protection, generator protection and automatic device testing. It can be used for both conventional and complex protection tests.
