Description

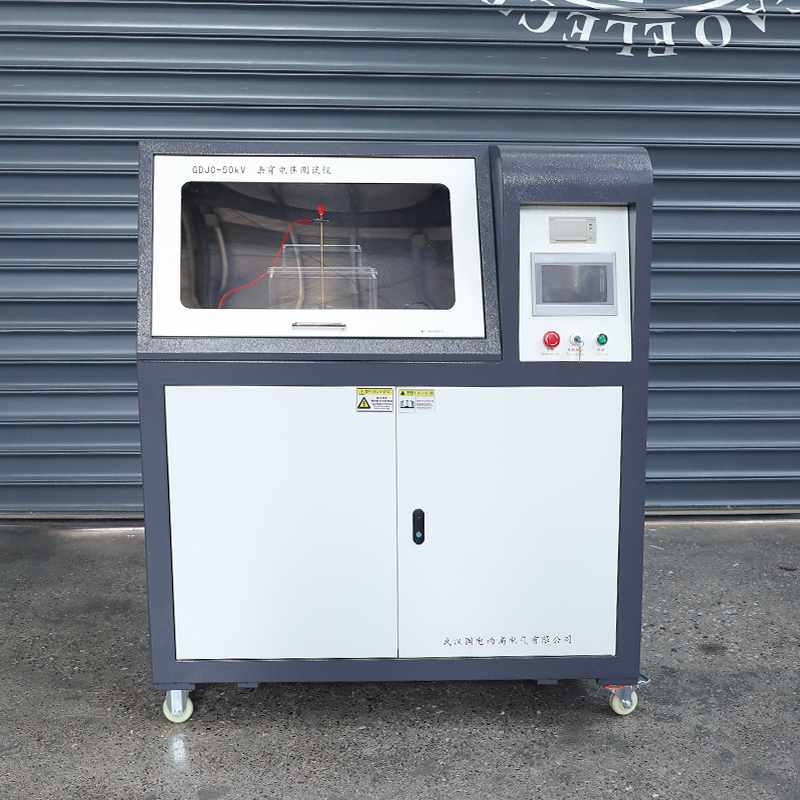

The GDJC-50kV is a professional, computer-controlled dielectric test system designed for dielectric withstand voltage test and breakdown strength measurement of solid insulation materials in accordance with GB/T 1408.1-2016/IEC 60243-1 and other international standards. It is widely used in insulation material manufacturers, research institutes, power utilities, and quality inspection organizations for testing plastic, rubber, film, resin, mica, ceramic, glass, insulating varnish, and other solid insulation materials .
Equipped with a high-precision step motor voltage regulation system and real-time data acquisition module, it supports three test modes: constant speed boost, step boost, and time withstand test. The system automatically detects breakdown events, immediately cuts off high voltage, and records all test data including breakdown voltage, boost rate, test time, and leakage current. With intuitive Windows-based software, users can set test parameters, monitor test curves in real time, generate standardized test reports, and export data in Excel format. It features comprehensive safety protection including door interlock, over-voltage, over-current, and emergency stop, ensuring safe operation in laboratory environments.
Specifications
|
Parameter |
Specification |
|
Input Power |
Single-phase AC220V±10%, 50Hz |
|
Rated Output Power |
5kVA |
|
Rated Output Voltage |
0–50kV AC (RMS) / 0–50kV DC |
|
Measurement Range |
1–50kV AC/DC |
|
Measurement Accuracy |
≤±2% F.S |
|
Leakage Current Range |
0–30mA |
|
Boost Rate Range |
0.2kV/s–5kV/s (continuous adjustable) |
|
Boost Rate Accuracy |
≤±5% |
|
Test Modes |
Constant speed boost, Step boost, Time withstand |
|
Withstand Time Range |
0–4H (adjustable) |
|
Breakdown Detection Response Time |
≤1ms |
|
Control System |
Industrial computer + Windows software |
|

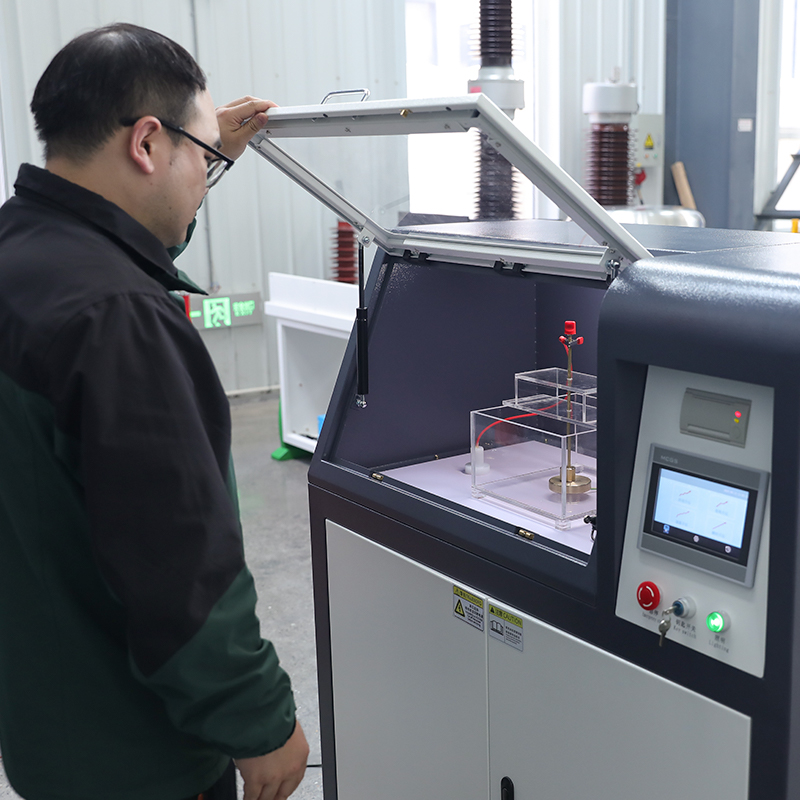

Standard Electrodes |
2×φ25mm×25mm, 1×φ75mm×25mm |
|
Maximum Sample Thickness |
50mm |
|
Protection Functions |
Door interlock, Over-voltage, Over-current, Emergency stop, Automatic discharge |
|
Data Storage |
Unlimited (with time stamp) |
|
Report Generation |
One-click standardized report |
|
Data Export |
Excel format |
|
Operating Temperature |
15℃–30℃ |
|
Operating Humidity |
30%–65% RH (non-condensing) |
|
Dimensions (mm) |
Main unit: 800×700×1300；Computer desk: 1200×600×750 |
|
Weight |
Main unit: ~150kg |
|
Compliance |
GB/T 1408.1-2016/IEC 60243-1:2013, GB/T 1408.2-2016, GB/T 1695-2005, ASTM D149, JJG 795-2016 |
Applications
Core Test Materials
- Plastics & polymers: PE, PP, PVC, epoxy resin, nylon, etc.
- Rubbers & elastomers: Silicone rubber, natural rubber, EPDM, etc.
- Films & sheets: PET, BOPP, PI film, insulating paper, etc.
- Ceramics & glasses: Alumina ceramic, borosilicate glass, etc.
- Mica & composites: Mica tape, glass fiber reinforced plastic, etc.
- Insulating varnishes & coatings: Epoxy varnish, polyurethane coating, etc.
Typical Usage Scenarios
- Material R&D: Development and performance evaluation of new insulation materials
- Quality control: Production line testing of insulation material manufacturers
- Quality inspection: Third-party testing and certification organizations
- Power industry: Inspection of insulation materials for power equipment
- Military & aerospace: High-reliability insulation material testing
- Academic research: University and research institute laboratory experiments
Advantages
Compliance with International Standards
Fully meets GB/T 1408.1/IEC 60243, GB/T 1408.2, GB/T 1695, ASTM D149 → ensures test result validity and international acceptance
Precise Boost Rate Control
0.2–5kV/s continuous adjustable with ≤±5% accuracy → reproducible test results according to standard procedures
Fully Automatic Test Process
One-click test execution, automatic breakdown detection, and data recording → reduces human error, improves test efficiency
Comprehensive Data Management
Real-time curve display, unlimited data storage, and standardized report generation → easy data analysis and documentation
Multiple Safety Protection Layers
Door interlock + over-voltage + over-current + emergency stop + automatic discharge → maximum safety for operators and equipment
Flexible Configuration
Standard electrode system + optional liquid tank and high-temperature chamber → meets various test requirements
FAQ
Q: What materials can GDJC-50kV test?
A: It can test all solid insulation materials including plastic, rubber, film, resin, mica, ceramic, glass, insulating varnish, and composite materials.
Q: What test modes does it support?
A: It supports three test modes: constant speed boost test, step boost test, and time withstand test, covering all test methods specified in GB/T 1408.1 and IEC 60243.
Q: Is the boost rate adjustable?
A: Yes. The boost rate is continuously adjustable from 0.2kV/s to 5kV/s with a step of 0.1kV/s, meeting the requirements of different standards and test methods.
Q: Does it support data export and report generation?
A: Yes. It can store unlimited test data, generate standardized test reports with one click, and export data in Excel format for further analysis.
