Description

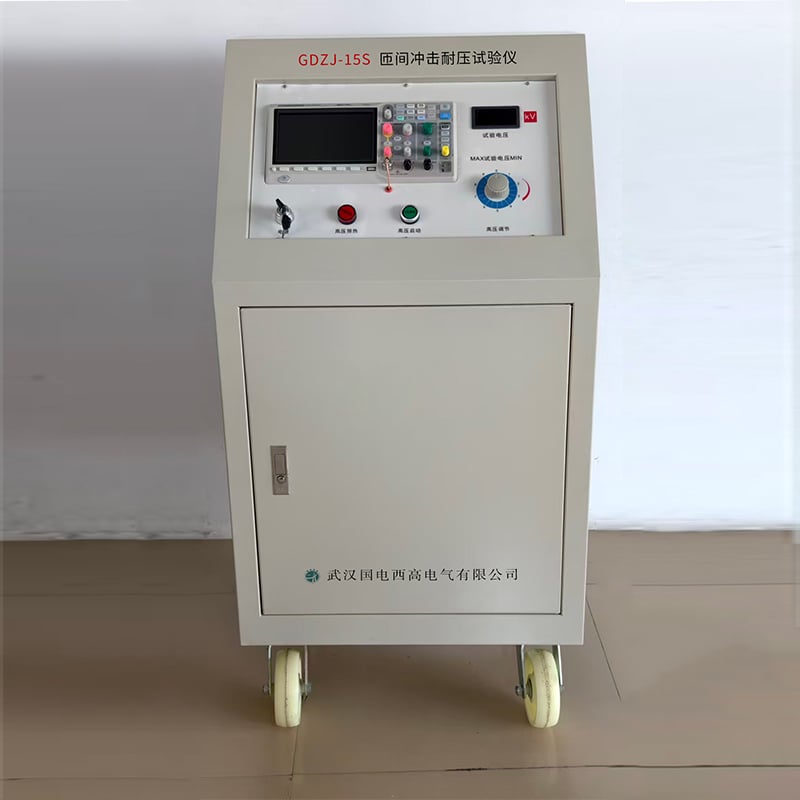

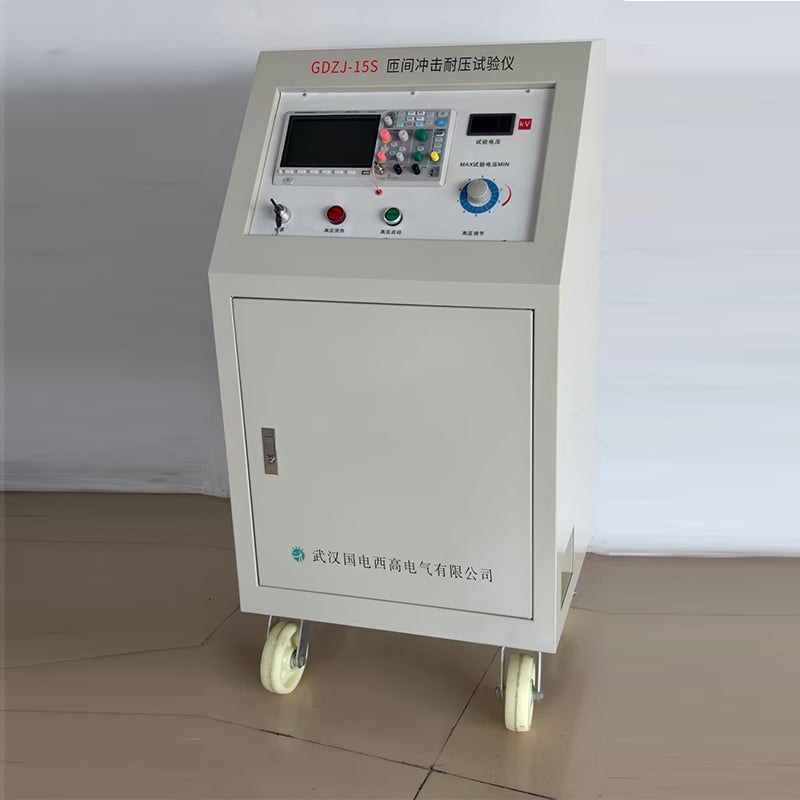

The GDZJ-15S is a cost-effective, application-optimized interturn insulation test instrument exclusively designed for 3.8kV and below medium-capacity motors (100kW–1000kW). It fully complies with GB/T 22714-2008 and IEC 60034-15:2005, adopting the pulse waveform comparison method to apply equivalent overvoltage impulses to windings, enabling fast and accurate detection of interturn short circuits, partial discharges, wiring errors, coil imbalance, and other insulation defects.
Equipped with a high-precision impulse generation circuit and a 7-inch color touch screen, it supports real-time display of impulse waveforms and automatic waveform similarity analysis. The system provides clear pass/fail judgment and stores all test data for traceability. With comprehensive safety protection including over-voltage, over-current, short-circuit, emergency stop, and door interlock, it ensures safe operation in both production lines and maintenance workshops. Ideal for quality control, commissioning, and overhaul testing of AC/DC motors, distribution transformers, small reactors, inductors, and current transformers.
Specifications
|
Parameter |
Specification |
|
Input Power |
Single-phase AC220V±10%, 50Hz |
|
Impulse Voltage Range |
0–15kV peak (500V–15kV continuous adjustable) |
|
Voltage Accuracy |
±5% F.S (1–15kV) |
|
Pulse Energy |
11.25J |
|
Wavefront Time |
0.1–0.5μs (standard-compliant) |
|
Pulse Repetition Frequency |
6.25–50 times/second (adjustable) |
|
Test Principle |
Pulse waveform comparison method |
|
Display |
7-inch color touch screen |
|
Waveform Comparison |
Real-time overlay display + automatic similarity calculation |
|
Test Modes |
Single test, Continuous test, Timed test |
|
Data Storage |
1000 groups (standard waveforms + test records, with time stamp) |
|
Data Export |
USB flash drive |
|
Protection Functions |
Over-voltage, Over-current, Short-circuit, Emergency stop, Door interlock, Automatic discharge |
|
Dimensions (mm) |
1000×450×550 (W×H×D) |
|
Weight |
~70kg |
|
Power Consumption |
≤800W |
|
Operating Temperature |
0℃ ~ +40℃ |
|
Operating Humidity |
≤80%RH (non-condensing) |
|
Compliance |
GB/T 22714-2008, JB/T 10098-2000, JB/T 9615.1-2000, IEC 60034-15:2005, IEC 61010-1 CAT III 1000V |
Applications
Core Test Objects
- Electric motors: 3.8kV and below AC induction motors, DC motors, servo motors (100kW–1000kW)
- Transformers: distribution transformers, small power transformers, instrument transformers (CT/PT)
- Reactors & inductors: small power reactors, filter inductors, choke coils
- Electrical appliances: contactors, relays, solenoid valves, ignition coils
- Generators: small and medium-sized synchronous generators, alternators
Typical Usage Scenarios
- Motor production lines: 100% interturn insulation test of finished motors
- Motor repair workshops: post-overhaul insulation verification
- Substation maintenance: small transformer and reactor winding inspection
- R&D laboratories: new product development and performance testing
- Third-party inspection: compliance testing according to national and international standards
Advantages
Application-Optimized Energy & Voltage
11.25J pulse energy and 15kV peak voltage perfectly match 3.8kV/100–1000kW motors → no over-testing or under-testing, ensures accurate results
Standard-Compliant Impulse Waveform
0.1–0.5μs wavefront time meets all major national and international standards → ensures test result validity and comparability
Automatic Waveform Analysis & Judgment
Intelligent algorithm calculates waveform similarity；reduces human error and improves test efficiency → ideal for high-volume production lines
Comprehensive Safety Protection
Multiple protection layers + door interlock + automatic discharge → maximum safety for operators and test equipment
User-Friendly Touch Screen Interface
Intuitive graphical operation；one-click parameter recall → easy to use for non-professional technicians
FAQ
Q: What products can GDZJ-15S test?
A: It is mainly designed for 3.8kV and below motors (100kW–1000kW), and can also test small distribution transformers, reactors, inductors, current transformers, relays, and other coil-based electrical equipment.
Q: Does the wavefront time meet international standards?
A: Yes. The wavefront time of 0.1–0.5μs fully complies with the requirements of GB/T 22714-2008 and IEC 60034-15:2005.
Q: Does it require a reference coil for testing?
A: Yes. GDZJ-15S uses a single high-voltage circuit and compares the test waveform with a pre-stored standard waveform from a qualified reference coil.
