Description

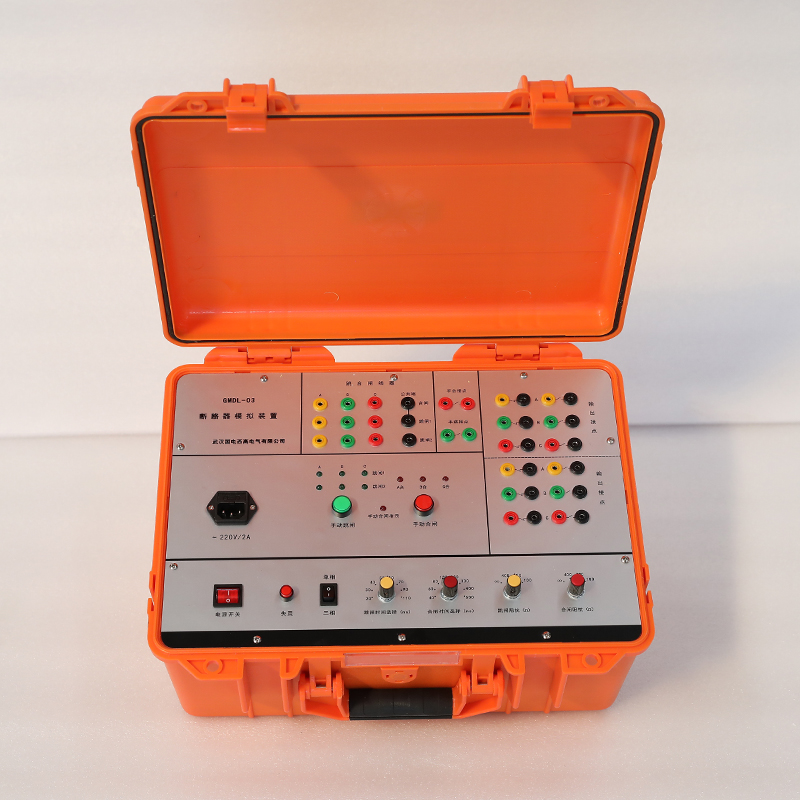

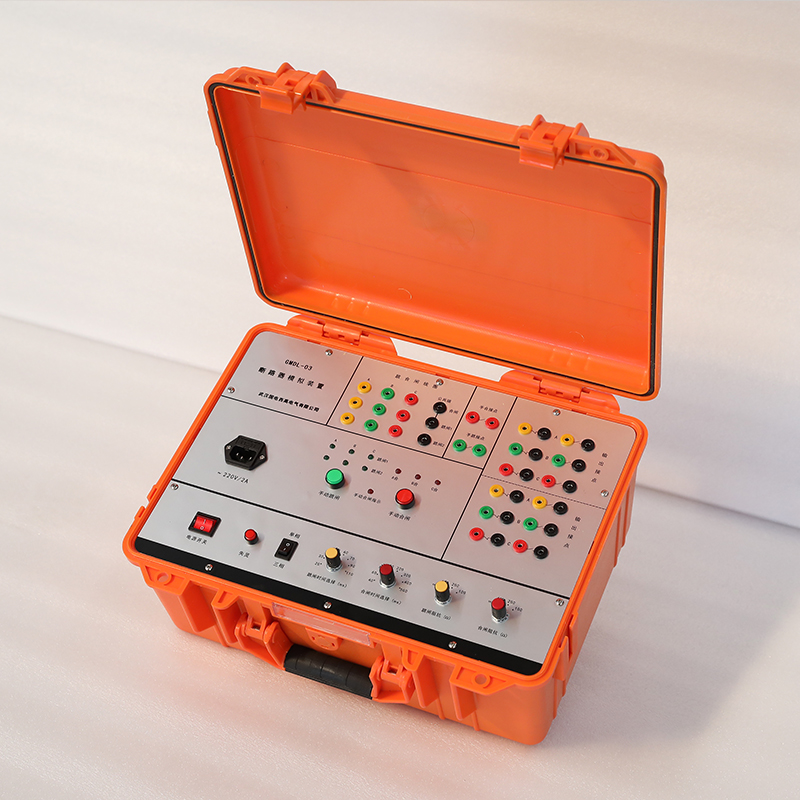

The GMDL-03 is a professional, high‑precision circuit breaker simulation device designed to replace real high‑voltage circuit breakers during relay protection and automatic device system transmission tests. It complies with DL/T 846.3‑2017, GB/T 1984‑2014 and IEC 62271‑100 standards, and can accurately simulate the opening/closing characteristics, coil resistance and three‑phase synchronization of 6–500kV vacuum, SF6 and oil circuit breakers.
Adopting large‑scale FPGA + power electronic drive technology, the GMDL-03 features programmable opening/closing time (10ms–1000ms) and multi‑level adjustable coil resistance (220Ω/440Ω/880Ω/1100Ω/2200Ω). It supports single‑phase/three‑phase operation and simulation of single/double trip coil breakers, with independent three‑phase control for high synchronization accuracy.
Specifications
| Parameter | Specification |
|---|---|
| Compliance | DL/T 846.3‑2017, GB/T 1984‑2014, IEC 62271‑100 |
| Simulated Voltage | 6kV ~ 500kV |
| Operation Mode | Single‑phase / Three‑phase; Single‑trip / Dual‑trip coil |
| Trip Time | 20/30/40/50/60/70/90/110ms (error ≤±5ms) |
| Close Time | 40/60/80/100/200ms (error ≤±5ms) |
| Coil Resistance | 220/440/880/1100/2200Ω |
| 3‑Phase Sync Error | ≤±2ms |
| Trip/Close Voltage | DC 110V / 220V (switchable) |
| Working Power | AC 220V±10%, 50Hz, <0.5A |
| Position Contacts | 6×NO + 6×NC |
| Protection | Overcurrent, overvoltage, arc suppression |
| Operating Temp | ‑10℃ ~ +50℃ |
| Humidity | ≤85% RH (non‑condensing) |
| Dimensions (L×W×H) | 420×320×180mm |
| Weight | ~8kg |
| Enclosure | Rugged aluminum alloy, IP54 |
Applications
Core Test Objects
- Relay protection devices: Microcomputer protection, line protection, transformer protection, busbar protection
- Automatic devices: Reclosing, standby power switching, fault recorder
- Voltage levels: 6kV, 10kV, 35kV, 110kV, 220kV, 500kV
- Breaker types: Vacuum, SF6, oil‑minimum, GIS
Typical Usage Scenarios
- Power companies: Substation relay protection transmission test, commissioning, fault diagnosis
- Protection manufacturers: Factory calibration, type test, R&D verification
- Power plants: Generator/transformer protection system test
- Research institutes & universities: Teaching, training, simulation research
Advantages
Compliance with Industry Standards
Fully meets DL/T 846.3‑2017, GB/T 1984‑2014 and IEC 62271‑100 → test results are industry‑recognized
Replace Real Breakers & Extend Life
Unlimited operations eliminate mechanical wear on real breakers → reduce maintenance costs and extend service life
High‑Precision Simulation
Programmable time, multi‑resistance and 3‑phase synchronization → accurately simulates real‑breaker dynamic behavior
Improve Test Efficiency
One‑time wiring, no waiting for real‑breaker reset → cut test time by 60%+
Compact & Portable
Lightweight rugged case → easy transport to substations and job sites
FAQ
Q: Why use a simulator instead of a real breaker?
A: Real breakers have limited mechanical life (typically 10,000–20,000 operations). The GMDL-03 has unlimited life, reduces wear on real breakers, and enables faster, safer tests without high‑voltage risks.
Q: Can it simulate different breaker types?
A: Yes. It simulates vacuum, SF6, oil‑minimum and GIS breakers from 6kV to 500kV by adjusting coil resistance and operating time.
Q: How accurate is the timing?
A: Timing error ≤±5ms; three‑phase synchronization error ≤±2ms, meeting national and international standards.
