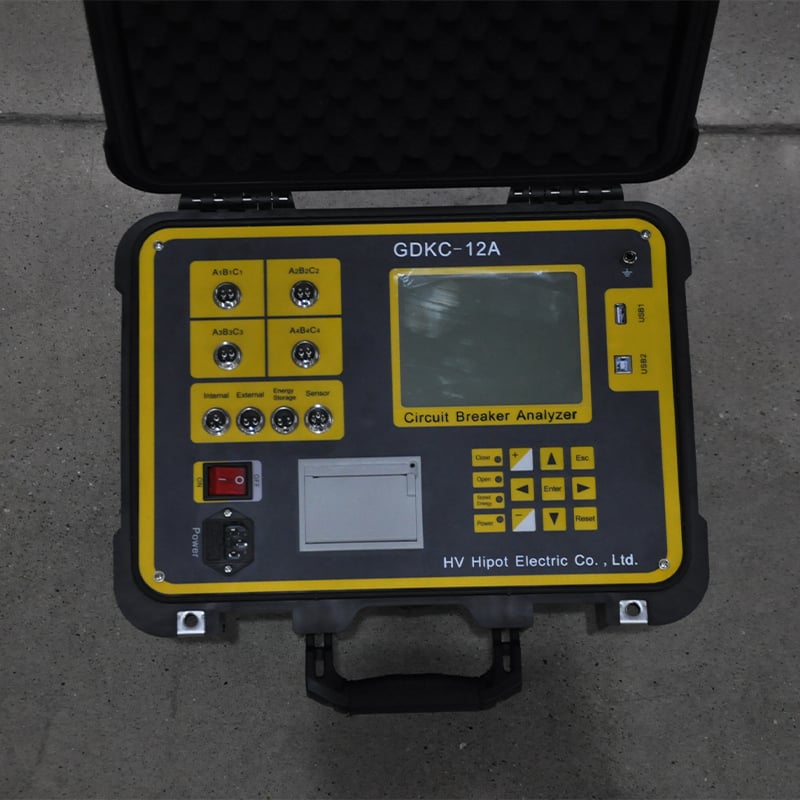

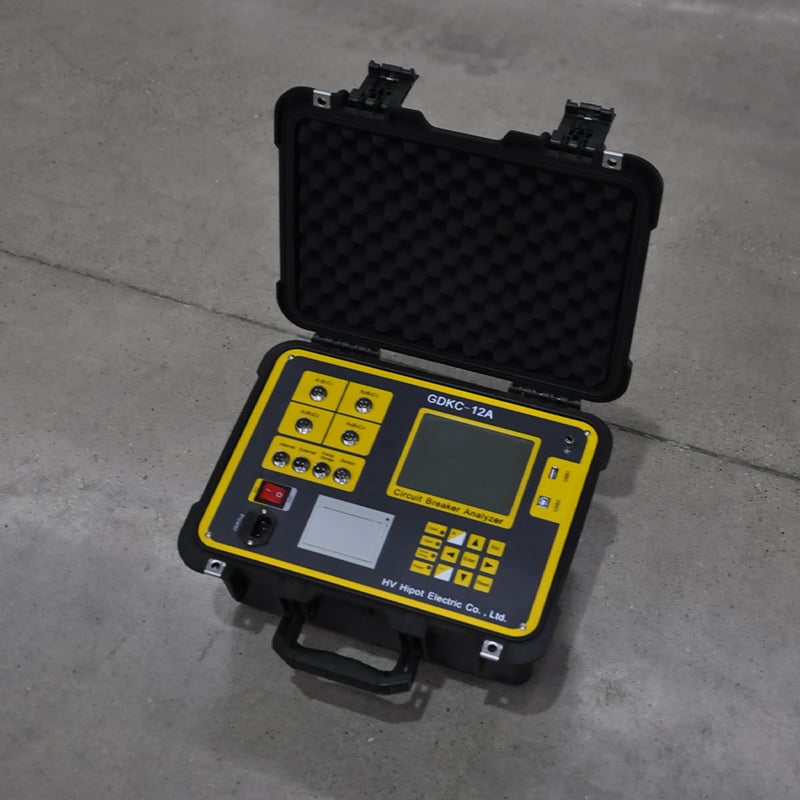

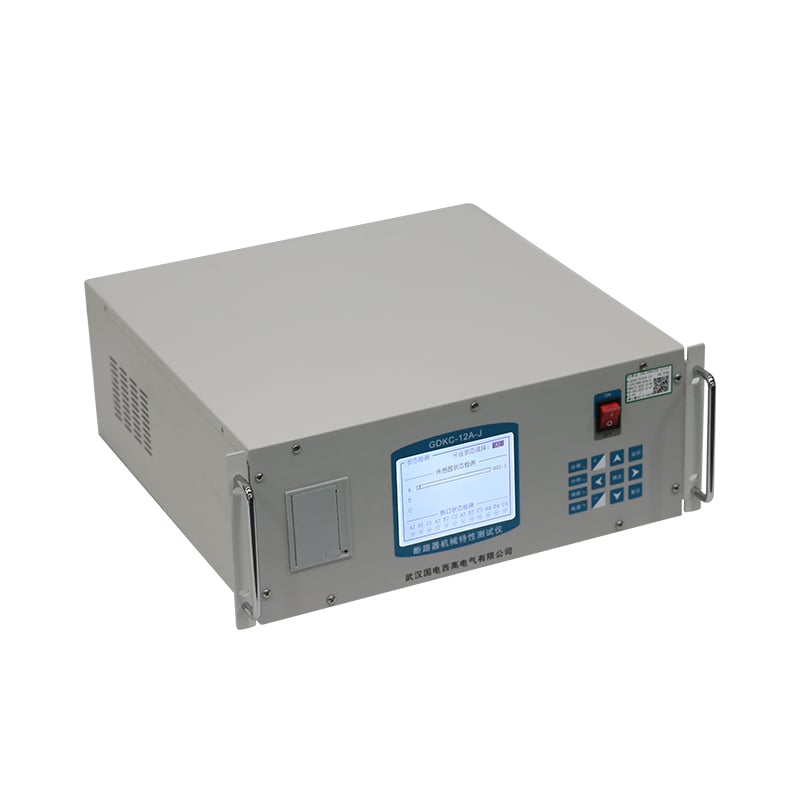

HCB-12A HV Switch Dynamic Characteristic Tester
HCB-12A Digital High Voltage Circuit Breaker Dynamic Characteristic Tester with 12 Independent Break Channels, Built-in Operation Power Supply & Thermal Printer, Time/Travel/Speed/Bounce Measurement, for On-Site HV Switchgear Preventive Test and Fault Diagnosis.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description
HCB-12A is a cost-effective high voltage circuit breaker dynamic characteristic tester designed for routine preventive test, mechanical performance verification and on-site fault diagnosis of medium and high voltage switchgear in substations, power plants, switchgear manufacturers, industrial enterprises and power maintenance teams. It strictly complies with DL/T 846.3-2017, GB/T 1984-2024 and IEC 62271-100:2017 standards, adopting high-speed synchronous acquisition technology and multi-stage anti-interference design that ensures stable and accurate measurement even in 500kV live substation environments with strong electromagnetic interference.
The instrument features 12 independent break channels with 0.1ms sampling resolution, supporting simultaneous test of three-phase multi-break circuit breakers. Its built-in 0V~300V continuously adjustable DC operation power supply with 20A peak output eliminates the need for external control power supply, greatly improving on-site test convenience. It is compatible with both linear displacement sensors and rotary angle sensors, suitable for vacuum, SF6 and oil-minimum circuit breakers with spring, hydraulic and electromagnetic operating mechanisms. It covers full test items including opening/closing time, phase synchronism, contact bounce, travel curve, speed characteristics, coil current waveform and auto-reclosing sequence test.
Specifications
| Parameter | Specification |
|---|---|
| Compliance Standards | DL/T 846.3-2017, GB/T 1984-2024, IEC 62271-100:2017, DL/T 596-2021 |
| Time Measurement | |
| Number of Channels | 12 independent break channels, electrical isolation |
| Measurement Range | 0.1ms ~ 4000ms |
| Resolution | 0.1ms |
| Accuracy | ±0.1% reading ± 1 digit |
| Test Items | Opening time, closing time, in-phase synchronism, phase-to-phase synchronism, bounce time, bounce times |
| Travel & Speed Measurement | |
| Sensor Type | Linear displacement sensor / rotary angle sensor (optional) |
| Travel Range | 50mm (vacuum breaker); 300mm (SF6 breaker); 600mm (oil breaker) |
| Travel Resolution | 0.1mm |
| Speed Range | 0 ~ 20m/s |
| Speed Accuracy | ±0.1m/s (0~2m/s); ±0.2m/s (above 2m/s) |
| Built-in Operation Power Supply | |
| Output Range | DC 0V ~ 300V digitally adjustable |
| Peak Current | 20A (instantaneous work) |
| Resolution | 1V |
| Test Modes | Single open, single close, open-close, close-open, auto-reclosing sequence |
| Coil Measurement | Coil current waveform synchronous recording, 0~20A range, 0.01A resolution |
| Display | 5.7-inch high-brightness backlit LCD |
| Printing | Built-in thermal printer (prints data and waveforms) |
| Data Storage | Multiple groups with time stamp, power-off memory |
| Language Support | Chinese / English bilingual |
| Input Power Supply | AC 220V±10%, 50Hz±2Hz |
| Operating Temperature | -10℃ ~ +40℃ |
| Humidity | ≤80% RH (non-condensing) |
| Dimensions (L×W×H) | 360 × 280 × 300mm |
| Weight | ~10kg (including accessories) |
| Enclosure | Engineering plastic portable chassis |
Applications
Core Test Objects
- High voltage circuit breakers: Vacuum circuit breakers, SF6 circuit breakers, oil-minimum/multi-oil circuit breakers (10kV ~ 220kV)
- Combined switchgear: GIS gas insulated switchgear, load break switches, disconnectors
- Operating mechanisms: Spring operating mechanisms, hydraulic operating mechanisms, electromagnetic operating mechanisms
Typical Usage Scenarios
- Power utilities: Substation switchgear routine preventive test, equipment status evaluation and daily maintenance
- Switchgear manufacturers: Factory quality control, finished product delivery test and after-sales on-site service
- Industrial enterprises: Internal distribution system regular inspection, electrical equipment maintenance and acceptance test
- Power maintenance teams: On-site fault diagnosis, repair effect verification and equipment handover test
- Third-party testing institutions: Switchgear performance inspection, power engineering acceptance and safety assessment
Advantages
Compliance with Latest Industry Standards
Fully meets DL/T 846.3-2017, GB/T 1984-2024, IEC 62271-100 → test results comply with power test specifications and product quality standards
Industry-Recognized Strong Anti-Interference Performance
Multi-stage isolation and filtering design, stable measurement in 500kV live substation → eliminates on-site test data drift and misjudgment
12-Channel Full Parameter Coverage
One wiring completes time, travel, speed, coil full parameter test → meets all routine preventive test requirements of medium and high voltage switches
Built-in Adjustable Operation Power Supply
0-300V DC digitally adjustable, 20A peak output → no external control power supply required, simplifies on-site wiring and improves test efficiency
Built-in Thermal Printer
On-site printing of test data and waveforms → directly generates test records, no need for additional equipment, convenient for on-site archiving
Classic Mature Design & High Cost Performance
Stable and reliable circuit, low failure rate, affordable price → ideal for daily maintenance and batch configuration of grassroots teams
Compact Portable Design
Lightweight chassis, simple operation → easy for single person to carry and operate, suitable for mobile on-site test
FAQ
Q: Can HCB-12A work normally in live substation environment?
A: Yes. HCB-12A adopts multi-stage anti-interference design including all-channel photoelectric isolation, hardware low-pass filtering and software digital filtering. It has been verified by field tests that it can stably and accurately measure in 500kV substation bypass bus live environment, without data drift or misjudgment caused by electromagnetic interference.
Q: Does it support auto-reclosing sequence test?
A: Yes. HCB-12A supports multiple operation sequence tests including "close-open", "open-close" and "open-close-open", and the time interval between each action can be set freely. It can simulate the actual auto-reclosing action process of the power system, and test the mechanical action reliability of the circuit breaker under continuous operation.
Q: How to use the built-in operation power supply?
A: The instrument has a built-in DC 0~300V adjustable power supply, which can directly supply power to the circuit breaker opening and closing coils without an external DC control cabinet. Users only need to set the required operation voltage on the menu, and the instrument will output the corresponding voltage to drive the circuit breaker action during the test. It supports programmable output time to meet different test sequence requirements.
