Description
The GSH-V/D-55 SF6 Gas Vacuuming and Filling Machine is a professional, fully automated gas handling system engineered for high-precision vacuuming and quantitative filling of SF6 gas-insulated high-voltage electrical equipment. Adopting an integrated oil-sealed rotary vane vacuum pump and closed-loop mass flow metering technology, it delivers ultra-high vacuum performance, accurate gas filling control, and fully automated one-click operation, strictly complying with IEC 60480 and GB/T 8905 international and domestic standards for SF6 gas handling and management.
With a rated pumping speed of 55L/s, ultimate vacuum down to ≤0.1Pa, and ±1% full-scale filling accuracy, this system is purpose-built for the full lifecycle maintenance of SF6-insulated assets, including GIS, SF6 circuit breakers, instrument transformers, ring main units, and gas-insulated transformers. It is the industry-preferred solution for power utilities, electrical equipment manufacturers, industrial maintenance teams, and electrical engineering service providers worldwide.
Specifications

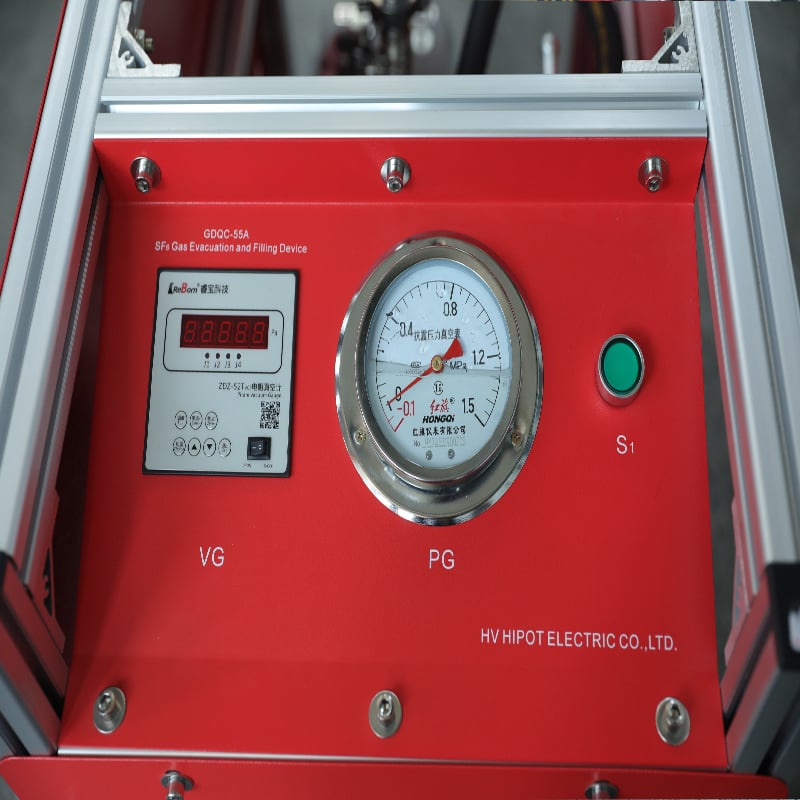

| Parameter | Specification |
| Model | GSH-V/D-55 |
| Rated Pumping Speed | 55L/s (dual-stage rotary vane vacuum pump) |
| Ultimate Vacuum Degree | ≤0.1Pa |
| Vacuum Measurement Range | 1×10⁵Pa ~ 1×10⁻¹Pa, high-precision digital vacuum gauge |
| Filling Pressure Range | 0 ~ 0.8MPa (customizable upper limit) |
| Filling Measurement Accuracy | ≤±1% Full Scale |
| Filling Flow Rate | 0 ~ 50L/min adjustable |
| Power Supply | 380V AC 50Hz (customizable 220V/60Hz) |
| Rated Power | 3kW |
| Display & Control | 7-inch color touchscreen, fully automatic + manual dual mode |
| Data Storage | 10,000+ groups of process records, USB export |
| Protection Grade | IP42 for main unit, IP54 for on-site operation panel |
| Operating Environment | -10°C ~ +50°C; ≤95% RH (non-condensing) |
| Compliance Standards | IEC 60480, IEC 62271-203, GB/T 8905, CE |

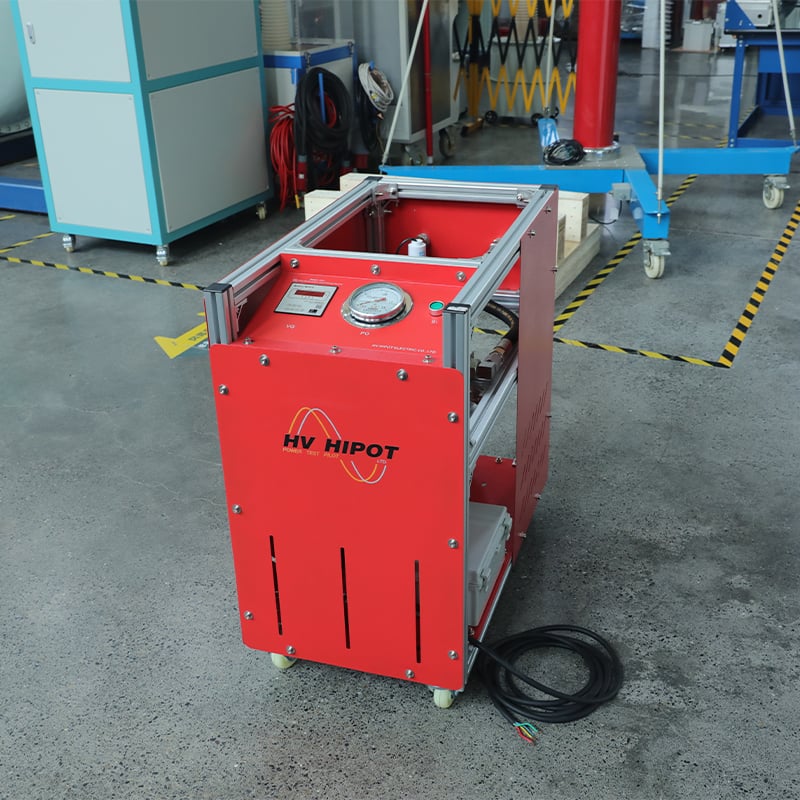

| Overall Dimensions | 1200mm × 700mm × 1100mm (mobile trolley) |
| Net Weight | 280kg |
Applications
Core Process Scenarios
· Pre-commissioning Vacuuming & Filling: Vacuum drying and SF6 gas filling for new GIS, SF6 circuit breakers, instrument transformers, and gas-insulated transformers during installation and handover
· Maintenance Vacuuming & Refilling: Vacuum extraction and SF6 gas refilling for in-service SF6 equipment during overhaul, repair, and component replacement
· Vacuum Holding Leak Detection: Vacuum tightness test for SF6 equipment gas chambers, identifying potential leakage points before gas filling
· Factory Quality Control: Batch vacuuming and filling process for SF6 electrical equipment production lines, ensuring consistent product quality and compliance with factory standards
Industry-Specific Usage
· Electric Power Utilities: Substation equipment commissioning, routine maintenance, and emergency repair of transmission and distribution SF6 assets
· Electrical Equipment Manufacturing: Production line batch processing, outgoing inspection, and type testing of GIS, SF6 switchgear, and instrument transformers
· Industrial & Petrochemical: HV SF6 equipment maintenance in high-reliability production facilities and hazardous area electrical systems
· Rail Transit & Urban Infrastructure: Traction power supply SF6 equipment commissioning and maintenance for metro, high-speed railway, and urban power grid projects
· New Energy & Renewable Projects: SF6 equipment maintenance for wind farm, solar farm, and energy storage system HV switchgear
· Third-Party Engineering & Testing Services: Commissioning, acceptance testing, and maintenance services for electrical engineering projects
Advantages
Strict Global Standard Compliance
Fully designed and calibrated in accordance with IEC 60480 (Guidelines for the handling and disposal of SF6), IEC 62271-203, and GB/T 8905 standards, process data is globally recognized, meeting the compliance requirements of power utilities, international projects, and environmental regulations.
Ultra-High Vacuum Performance & Efficiency
55L/s high-speed dual-stage vacuum pump delivers ultimate vacuum down to ≤0.1Pa, far exceeding the industry standard 1Pa requirement. It ensures complete removal of moisture, air, and impurities from SF6 equipment gas chambers, preventing insulation degradation and equipment failure caused by residual gas and moisture.
Precision Filling for Long-Term Equipment Reliability
Closed-loop mass flow metering with ±1% filling accuracy, combined with automatic temperature and pressure compensation, ensures precise control of SF6 gas density in the equipment. This eliminates the risk of over-filling or under-filling, guaranteeing optimal insulation performance and long-term reliable operation of SF6 assets.
Fully Automated Operation to Reduce Human Error
One-click fully automatic workflow covers the entire process from pre-vacuum detection to post-filling pressure verification, eliminating manual operation steps and human error. Even non-specialist operators can complete standardized, compliant SF6 gas handling with minimal training.
Zero-Leak Environmental Protection Design
Fully enclosed gas circuit with metal sealed connections minimizes SF6 gas emissions, supporting global carbon reduction goals and compliance with SF6 environmental regulations. The system’s closed-loop design also eliminates operator exposure to SF6 gas, ensuring workplace safety.
Field-Proven Ruggedness & Reliability
Mobile trolley structure with industrial-grade shockproof components ensures stable performance in harsh outdoor and industrial environments. The system requires minimal maintenance, with long service life of the vacuum pump and core components, delivering low total cost of ownership for users.
FAQ
Q: What international standards does the GSH-V/D-55 comply with?
A: The system is fully designed and calibrated in accordance with IEC 60480 (Guidelines for the handling and disposal of SF6), IEC 62271-203, and GB/T 8905 standards for SF6 gas handling, with globally recognized process data and compliance.
Q: What is the ultimate vacuum degree of this machine?
A: The ultimate vacuum degree is ≤0.1Pa, which fully meets the strict vacuum requirements of HV SF6 equipment commissioning and maintenance, ensuring complete removal of air, moisture, and impurities from the gas chamber.
Q: What is the filling accuracy, and can it compensate for environmental changes?
A: The filling accuracy is ≤±1% full scale, with built-in automatic temperature and pressure compensation function, eliminating filling errors caused by on-site temperature and pressure changes, ensuring accurate SF6 gas density control.
Q: What types of SF6 equipment is this machine suitable for?
A: It is suitable for all SF6-insulated high-voltage equipment, including GIS, SF6 circuit breakers, load switches, ring main units, current/voltage transformers, and gas-insulated power transformers.
Q: Is the operation fully automatic?
A: Yes. The system supports one-click fully automatic workflow, including pre-vacuum detection, multi-stage vacuuming, vacuum holding leak detection, quantitative filling, and post-filling pressure verification. It also supports manual mode for custom operation.
Q: Can process data be exported for compliance reporting?
A: Yes. The system has built-in large-capacity data storage, saving up to 10,000 groups of process records with full traceability. It supports USB data export in Excel/PDF format for compliance documentation and project handover.
Q: Does it have anti-oil return protection for the vacuum pump?
A: Yes. The system is equipped with a built-in anti-oil return device, which automatically closes the gas circuit when the pump stops, preventing vacuum pump oil from flowing back into the SF6 equipment and contaminating the insulation system.
Q: What is the warranty and after-sales support?
A: We provide a standard 1-year whole-machine warranty, lifetime technical support, on-site commissioning, maintenance, and calibration services through our global service network. Extended warranty plans are available upon request.
