GDSY-9000 Customized Integrated Power Test Vehicle

GDSY-9000 Customized Integrated Power Test Vehicle

GDSY-9000 (GDFS-9000) Customized Integrated Power Test Vehicle (Mobile High-Voltage Laboratory) for 10–220kV Substation Preventive & Commissioning Tests, Equipped with Onboard Variable-Frequency Resonant, DC High Voltage, Partial Discharge, Dielectric Loss, Switch/Tester/Transformer Test Systems, Centralized Computer Control, Automatic Report Generation, Road-Legal with Official Announcement, Compliant with DL/T 596 & GB 50150.

Description
Specifications
Applications
Advantages
Recommended Products

Description

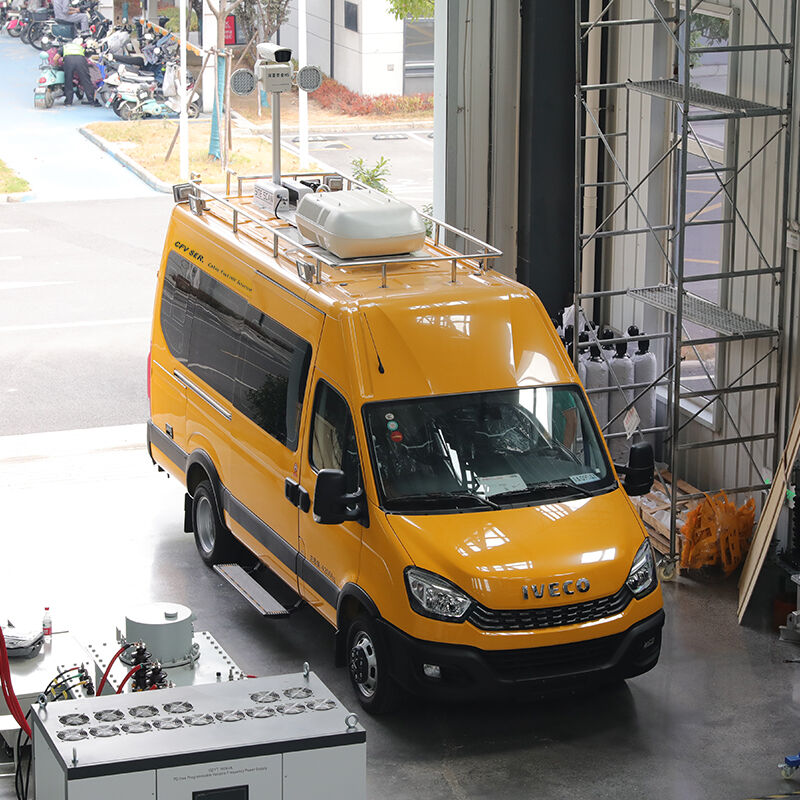

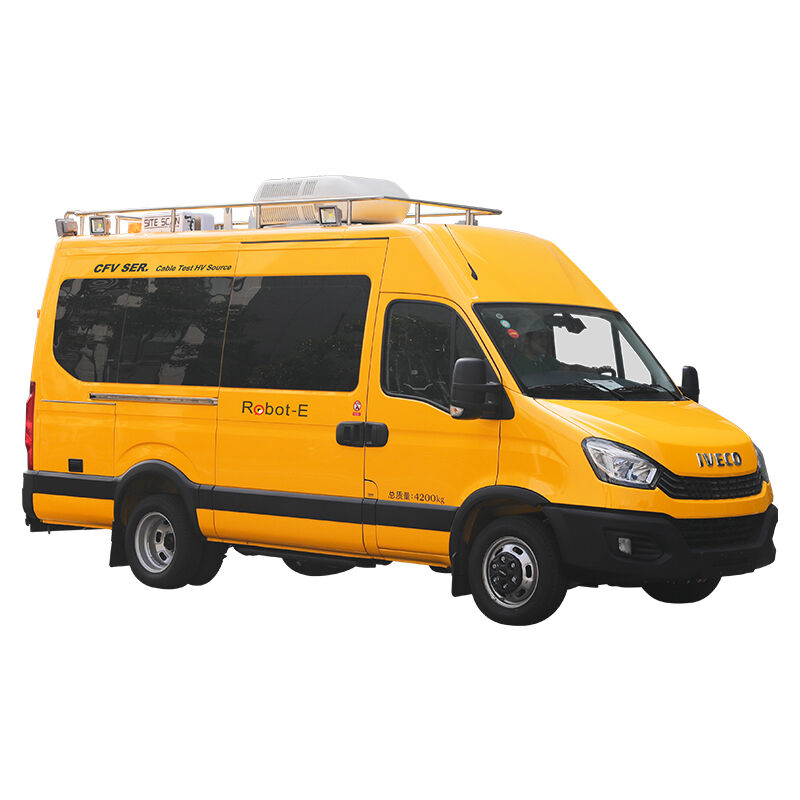

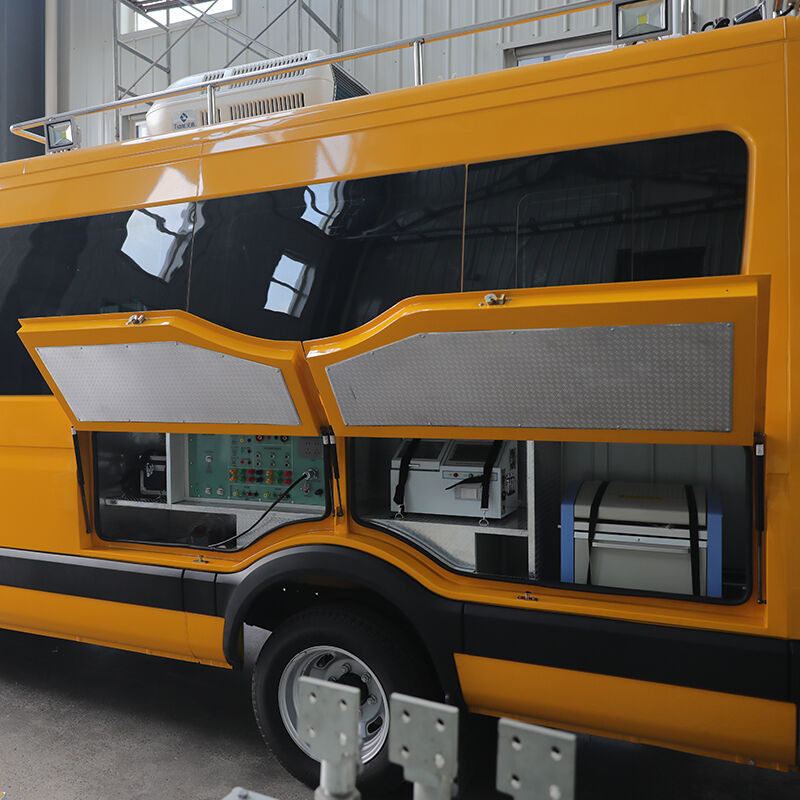

The GDSY-9000 is a custom-built, road-legal integrated power test vehicle (mobile high-voltage laboratory) developed by HV HIPOT ELECTRIC CO., LTD , designed for full-range preventive maintenance and commissioning tests on 10kV–220kV substation equipment (transformers, GIS, cables, switchgear, CT/PT, arresters, etc.). It complies with DL/T 596-1996 and GB 50150-2016, integrating all required test instruments into a modified commercial van with shockproof cabinets, centralized PC control, and safety interlocks.

Unlike traditional portable devices, the GDSY-9000 delivers one-stop on-site testing—no repeated loading/unloading, no external cranes, and single-vehicle mobility for remote substations. It features real-time data acquisition, automatic report generation, GPS tracking, and wireless communication, supporting networked monitoring and fleet management. The vehicle is officially approved for road registration in China, ensuring legal operation nationwide. Ideal for power utilities, railway electrification, metallurgy, and mining requiring high-efficiency, safe, and standardized field testing.

Specifications

Parameter	Specification
Model	GDSY-9000
Voltage Class	10kV / 35kV / 110kV / 220kV
Test Coverage	AC resonant, DC hipot, PD, tanδ, transformer/CT/PT/switch, SF6, oil
Control System	Industrial PC, 15” touchscreen, Windows OS
Communication	GPS, 4G/5G, LAN, wireless instrument link
Power Supply	Onboard UPS 5kVA, 220V AC, 380V AC input
Chassis	Modified commercial van (Fiat or equivalent)
Dimensions (L×W×H)	~5990×2000×2800mm
Weight	~3.5–5t (depending on config)
Certification	Official vehicle announcement, CCC, DL/T 596, GB 50150
Operating Temperature	-10°C ~ +40°C
Relative Humidity	≤85%RH (non-condensing)

Applications

Core Test Objects

· Power transformers (110–220kV)

· GIS & switchgear (SF6 insulated)

· XLPE power cables (10–220kV)

· Current/voltage transformers (CT/PT)

· Zinc oxide arresters (MOA)

· High-voltage bushings & insulators

· SF6 gas & insulating oil quality control

Typical Scenarios

· Substation preventive maintenance (DL/T 596)

· New equipment commissioning & handover (GB 50150)

· Emergency fault diagnosis & outage repair

· Remote/ mountainous substation testing

· Railway electrification & industrial plant substations

Advantages

One Vehicle = One Lab
All instruments pre-integrated → no repeated loading/unloading, faster deployment, lower labor cost
10–220kV Full Coverage
Covers all required tests per DL/T 596 → one-stop solution for substation maintenance
Intelligent & Paperless
Centralized PC control + auto report → standardized data, reduced human error, easy archiving
Road-Legal Nationwide
Official announcement + registration → legal operation anywhere in China, no transport permits needed
Customized for Your Grid
Voltage class, test items, layout → tailored to 35kV / 110kV / 220kV utility needs
