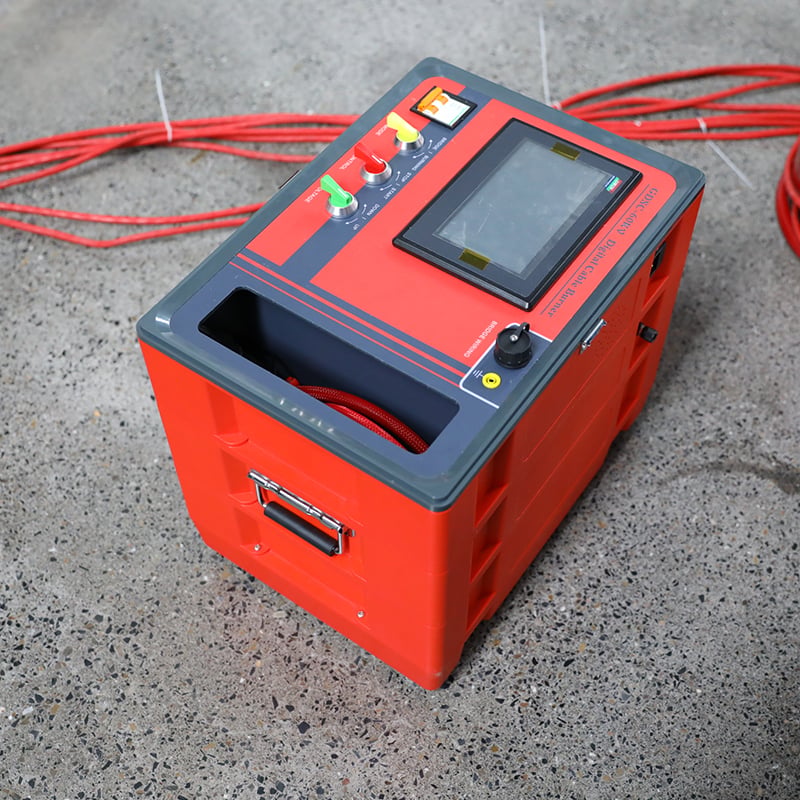

RE-B60 Portable DC Cable Fault Burn-Through Tester
RE-B60 Intelligent Digital Constant Current Cable Fault Burner with 0-60kV DC Output, Auto Burn-Through Mode, Real-Time Curve Display, for High Resistance & Flashover Cable Fault Burn-Through Pretreatment and DC Withstand Test.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description
RE-B60 is a professional portable cable fault burn-through tester designed for high resistance and flashover fault pretreatment of 10kV~35kV power cables in power operation and maintenance teams, cable construction companies, industrial enterprises and municipal engineering departments. It strictly complies with DL/T 849.1-2004, GB/T 12706.1-2020 and DL/T 596-2021 standards, adopting high-voltage power electronic constant current technology that quickly burns through insulation defect points and reduces fault resistance to low resistance level, enabling subsequent cable fault locators to achieve accurate fault location.
The instrument delivers 0~60kV continuously adjustable DC output with 600mA maximum short-circuit current and 1kW rated power, covering most medium-voltage power cable fault treatment requirements. It supports three working modes: constant voltage, constant current and automatic burn-through. In automatic mode, it automatically completes the whole process of voltage rise, constant current burn-through and voltage drop, and stops automatically when the fault is burned through, greatly reducing manual operation intensity. It is also equipped with high-precision digital detection unit and LCD curve display, which shows real-time voltage and current changes during the burn-through process, and intuitively reflects the fault state change.
Specifications
| Parameter | Specification |
|---|---|
| Compliance Standards | DL/T 849.1-2004, GB/T 12706.1-2020, DL/T 596-2021, GB/T 16927.1-2011 |
| Output Voltage | DC 0 ~ 60kV, continuously adjustable |
| Maximum Short-Circuit Current | 600mA |
| Rated Continuous Power | 1000W |
| Display Accuracy | Voltage / Current: ＜±2% |
| Working Principle | High-voltage power electronic constant current control + high-voltage rectification |
| Working Modes | Constant voltage mode, constant current mode, automatic burn-through mode |
| Display Mode | Color LCD display, real-time voltage / current curve display |
| Signal Transmission | Optical fiber isolation transmission between high voltage unit and operation unit |
| Input Power Supply | AC 220V ± 10%, 50Hz ± 2Hz |
| Protection Functions | Zero-position start, over-voltage, over-current, short-circuit, over-temperature alarm, emergency stop |
| Alarm Mode | Sound and light alarm for high voltage output / fault / burn-through completion |
| Applicable Cable Voltage Grade | 10kV ~ 35kV power cables |
| Applicable Fault Types | High resistance grounding, flashover, leakage, joint high resistance faults |
| Operating Temperature | -10℃ ~ +50℃ |
| Ambient Humidity | ≤90% RH (non-condensing) |
| Altitude Limit | ≤ 1000m |
| Dimensions (L×W×H) | 450 × 315 × 460mm |
| Weight | ~ 30kg (net weight) |

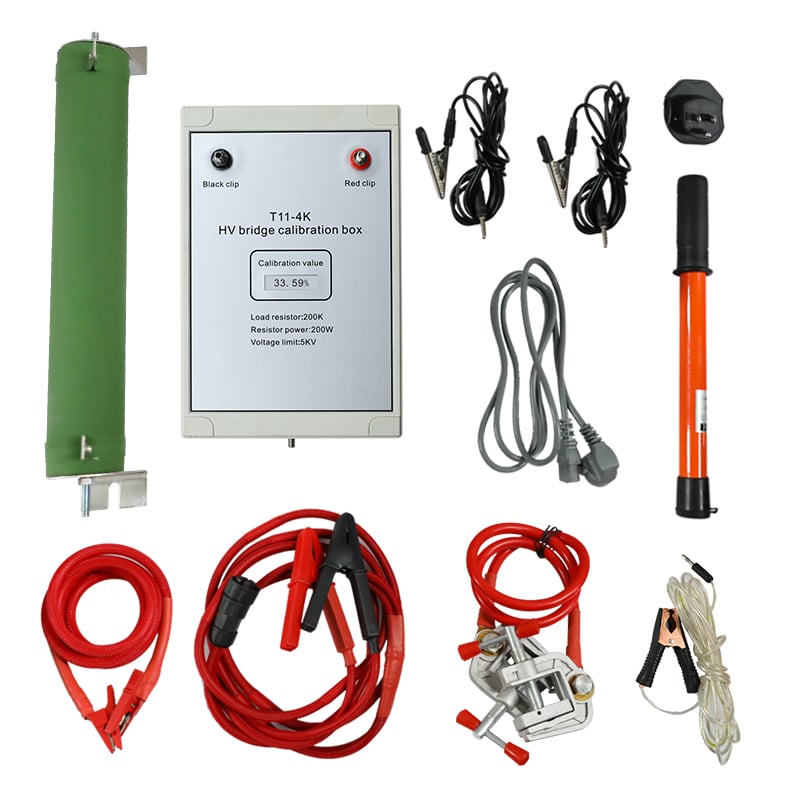

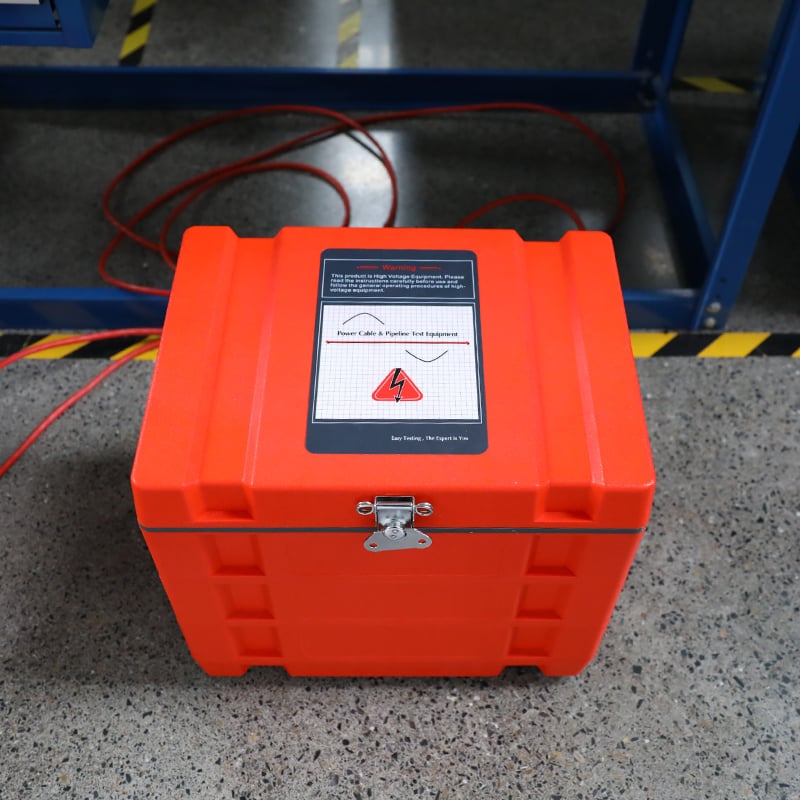

| Enclosure | Aluminum alloy portable chassis with handle |
Applications
Core Test Objects
- Power cables: 10kV, 35kV XLPE cables, oil-impregnated paper insulated cables, PVC insulated power cables, mine cables
- Fault types: High resistance grounding faults, flashover faults, leakage faults, intermediate joint high resistance faults, terminal insulation defects
- Matching equipment: Cable fault flash testers, cable path finders, cable fault pinpointers
- Extended use: DC withstand test for cables, capacitors, motors, porcelain insulators and other electrical equipment
Typical Usage Scenarios
- Power operation and maintenance departments: Distribution network and transmission cable fault rush repair, daily preventive test, fault troubleshooting
- Cable construction companies: Fault detection after cable laying, completion acceptance fault treatment, project handover test
- Industrial and mining enterprises: Internal power cable fault maintenance, daily insulation inspection, equipment regular maintenance
- Municipal and property: Residential area, street lamp, municipal pipeline cable fault investigation and rush repair
- Third-party testing institutions: Cable fault detection service, equipment performance verification, insulation test service
Advantages
Compliance with Power Industry Test Standards
Fully meets DL/T 849.1, GB/T 12706, DL/T 596 → test methods and performance comply with power cable test specifications, results are authoritative and reliable
High-Efficiency Constant Current Burn-Through Technology
600mA large current output, stable constant current without arc extinction → quickly burns high-resistance faults into low-resistance, shortens fault location time by more than 60%
One-Key Automatic Operation & Curve Visualization
Automatic burn-through mode with auto stop, real-time curve display → reduces manual operation intensity, intuitively grasps fault state, improves rush repair efficiency
Fiber-Optic Isolation + Multi-Level Protection
Fiber-optic signal isolation + zero-position start + triple limit + emergency stop → eliminates electric shock hazards, ensures absolute safety of operators during high-voltage operation
Multi-Function Integrated Design
Burn-through + DC withstand dual-purpose, one device for multiple uses → reduces equipment purchase cost, improves equipment utilization rate
FAQ
Q: What is the function of a cable fault burner?
A: In cable fault detection, high-resistance and flashover faults cannot be directly located by low-voltage pulse method or bridge method due to their high fault resistance. The burner applies DC high voltage to the fault point, breaks down the fault point through arc discharge, and burns the high-resistance fault into a stable low-resistance fault, so that the subsequent cable fault locator can accurately locate the fault point. It is an essential pretreatment step for high-resistance cable fault detection.
Q: What types of cable faults is RE-B60 suitable for?
A: RE-B60 is mainly used for pretreatment of various medium-voltage cable high-resistance faults, including: high-resistance grounding faults with fault resistance greater than 100kΩ, flashover faults that only break down under high voltage, leakage faults with large insulation resistance, and high-resistance faults at cable intermediate joints and terminals. It is suitable for XLPE cables, oil-impregnated paper insulated cables and PVC cables of 10kV~35kV. It can also be used as a DC high-voltage power supply for DC withstand test.
Q: What is the difference between automatic mode and manual mode?
A: In manual mode, the operator manually adjusts the voltage and current, which is suitable for complex fault conditions that require flexible control and DC withstand test. In automatic mode, the operator only needs to set the target current and voltage parameters, and the instrument will automatically complete the whole process of voltage rise, constant current burn-through and voltage drop. It will automatically stop and give an alarm when the burn-through is completed, without manual monitoring, which greatly reduces the work intensity of operators and improves the efficiency of on-site rush repair.
Q: What safety matters should be paid attention to during on-site operation?
A: 1. The equipment must be reliably grounded before operation; 2. Operators must maintain a safe distance from the high-voltage output terminal during operation; 3. In case of emergency, press the emergency stop button immediately; 4. The test must be carried out after confirming that the cable is powered off, and the other end of the cable should be properly guarded to prevent others from approaching; 5. After the test, the cable must be fully discharged before touching.
