GDSY Modular Custom Cable Comprehensive Test Vehicle
GDSY Customizable Integrated Cable Test Vehicle, Modular Vehicle-Mounted Mobile Test Platform, Freely Configurable with Cable Fault Locator, Insulation Diagnostic Units, Cable Route Tracing and Sheath Fault Test Equipment, for MV & HV Underground Cable Acceptance Test, Preventive Diagnosis and Emergency Fault Rush Repair.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description
- Insulation diagnosis: MRT series insulation resistance tester
- Cable fault pre-location: RE-TDR receiver + RE-RLG surge transmitter + RE-MPC multi-impulse coupler
- Ground precise pinpointing: RE-TRL acoustic-magnetic partial discharge pinpointer
- Cable path tracing & identification: GD-4134E comprehensive cable locator
- Metal sheath & earthing circuit inspection: RE-CFL live detection system for cable earthing system

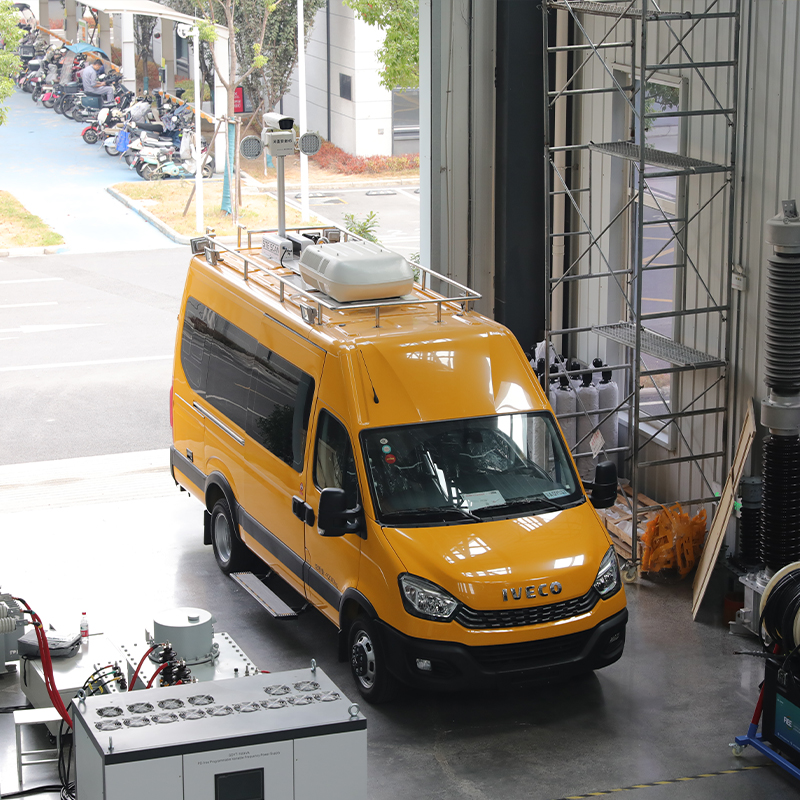

GDSY customizable integrated cable test vehicle is a professional mobile working platform modified on commercial van chassis (Iveco, Ford Transit, Maxus and other optional chassis). Adopting fully modular design, users can select and combine various test instruments according to actual business demands, forming exclusive vehicle-mounted cable detection solutions.
The standard matching instrument portfolio covers full links of cable operation maintenance:

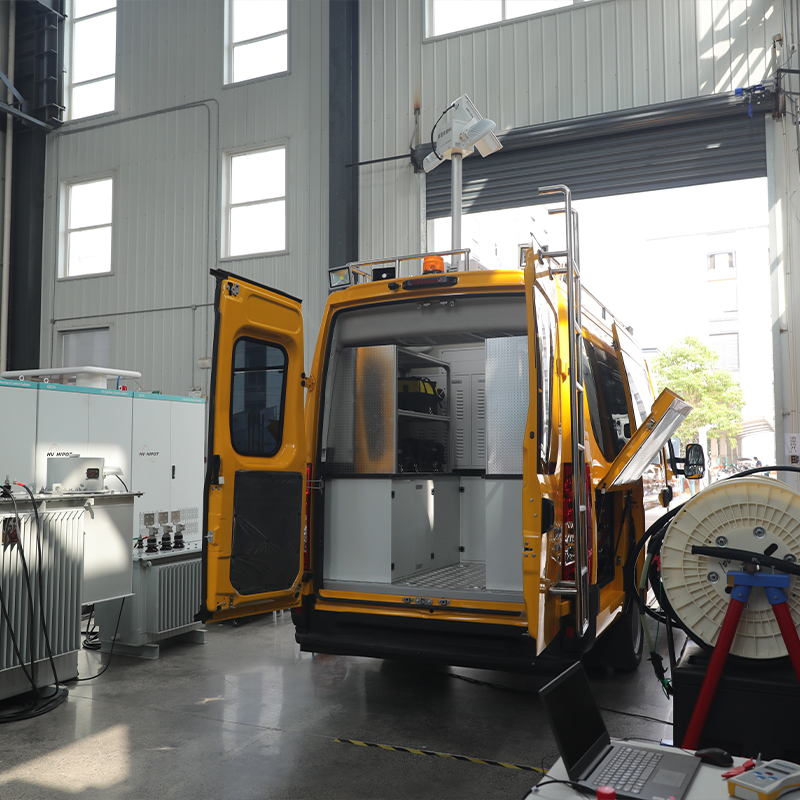

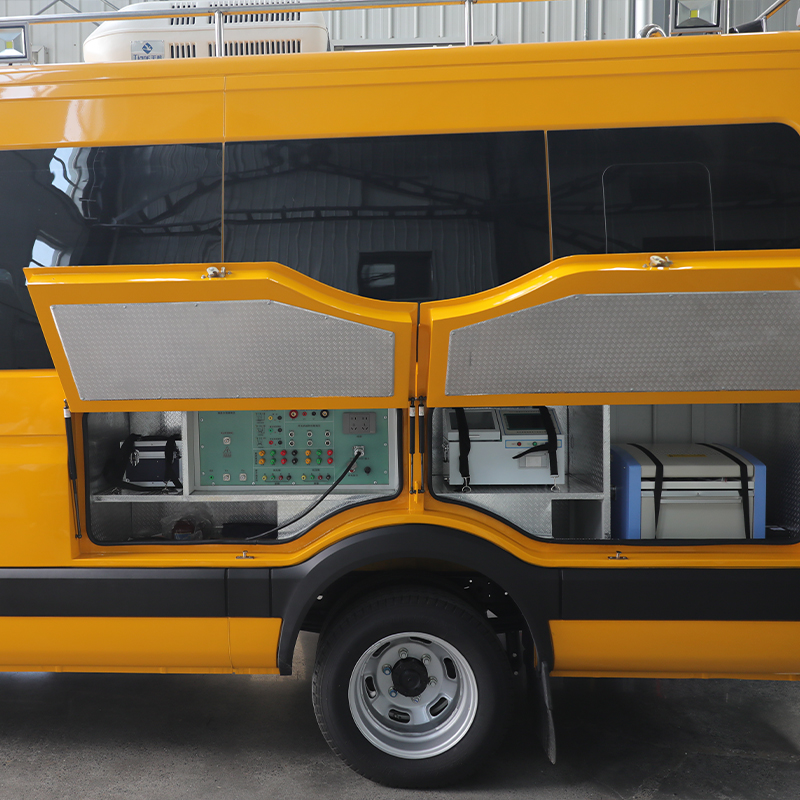

The carriage is equipped with shockproof instrument mounting rack, integrated power supply system (on-board generator, UPS, inverter), lighting, safety interlock, cable reel storage, operation workbench and independent air conditioning. All equipment is fixed with anti-vibration locking structure to adapt long-distance road transportation. The whole vehicle realizes direct arrival at site and immediate testing, eliminates repeated loading/unloading of scattered instruments, greatly shortens emergency fault repair time.
Suitable for 10kV ~ 35kV underground XLPE power cables, wind & photovoltaic collection cables, urban tunnel cable lines, widely used for power grid operation & maintenance companies, new energy EPC contractors, third-party testing institutions and large industrial park power management departments.
Specifications
| Parameter | Specification |
|---|---|
| Chassis Options | Iveco, Ford Transit, Maxus and other medium/high roof commercial vans (customizable wheelbase) |
| Configuration Mode | Modular customizable, basic / premium package optional, expandable reserved space |
| Standard Matching Instrument Portfolio (Selectable) | RE-TDR cable fault locating system, RE-MPC multi-impulse coupler, RE-TRL acoustic-magnetic pinpointer, GD-4134E cable locator, MRT series insulation resistance tester, RE-CFL sheath earthing diagnostic system |
| Vehicle Power Supply System | Silent generator, external 220V mains input, pure sine wave inverter, UPS emergency power supply |
| Safety Facilities | HV sound-light alarm, emergency stop button, safety interlock, dedicated protective grounding terminal |
| Carriage Environment | Independent air conditioning, ventilation system, LED internal lighting, external searchlight |
| Internal Layout | Shockproof instrument rack, operation workbench, lockable storage drawers, retractable cable reels |
| Operating Temperature | -20℃ ~ +55℃ |
| Adaptable Test Object | 10kV ~ 35kV underground XLPE power cables |
Applications
Core Test Objects
- 10kV / 35kV XLPE underground power cables, cable joints and terminals
- Wind farm & photovoltaic station collection cables
- Tunnel cable lines, municipal distribution network buried cables
- Industrial park, chemical plant, rail transit internal power cables
Supported Test Items
- Insulation resistance, absorption ratio and polarization index measurement
- Open-circuit, low-resistance, high-resistance leakage and flashover fault pre-location
- Cable route tracing, buried depth measurement and live cable identification
- Acoustic-magnetic precise fault pinpointing
- Cable outer sheath grounding fault location
- Metal sheath cross-bonding circuit live detection and defect diagnosis
Advantages
Highly flexible customizable solution
Avoid redundant equipment investment, customers configure functions according to actual business scope, support phased upgrade
All-in-one mobile testing platform
No repeated loading and unloading of scattered instruments, arrive at site and start testing immediately, significantly improve rush repair efficiency
Closed-loop complete cable diagnostic capability
Integrate insulation test, fault ranging, path tracing and pinpointing in one vehicle, form standardized operation workflow
Multi-safety protection for high voltage field operation
Integrated power distribution, HV interlock, emergency stop and grounding protection to reduce on-site operation risks
Unified supporting instrument ecosystem
Native matching with RE series cable test equipment, stable communication and consistent waveform data
FAQ
Q: Can instruments be replaced with other brands?
A: The vehicle rack size and power distribution are optimized for HVHIPOT RE / MRT series instruments. Third-party equipment can be installed after size verification, but waveform synchronization and system matching cannot be guaranteed; original supporting configuration is recommended.
Q: Does the modified vehicle have legal driving qualification?
A: All GDSY test vehicles are modified by qualified vehicle refitting factories, obtain complete modification documents, satisfy national road vehicle management requirements, support normal license plate registration and annual inspection.
Q: Can equipment be installed later after vehicle delivery?
A: Yes. The carriage reserves standardized installation supports, power sockets and communication interfaces, realizing later function expansion without major reconstruction of the vehicle body.
